Optimised solution for LED panels

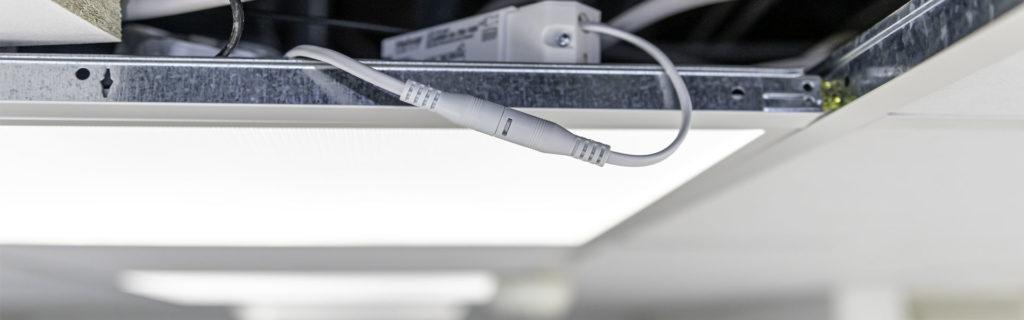

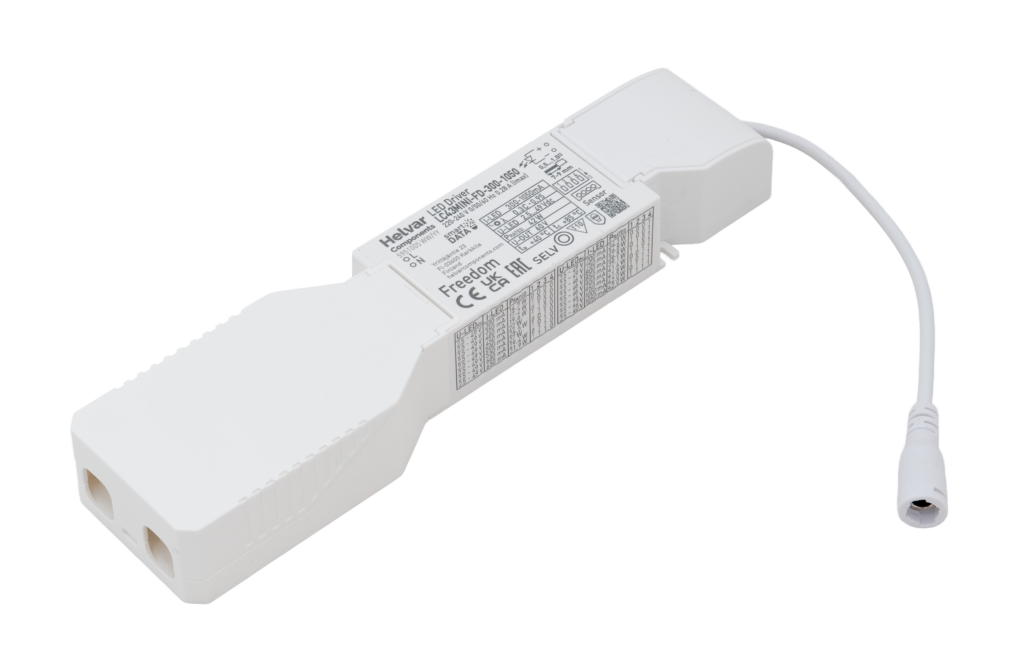

PanelReady is the option to deliver our compact, LOOP and MINI LED drivers with pre-installed connector cabled for quick assembly of various LED light panels. Available also for compact Freedom Wireless LED drivers with Freedom Node and Freedom Sense ready installed. Save time, money and resources in LED panel installation, and streamline your manufacturing process with fast-to-install LED drivers from a global, trusted partner.

Optional pre-programmed output current  – straight from our factory

We can also set the requested output current to the drivers before assembling and shipping the PanelReady LED drivers. This offers a truly tailor-made, completely ready package solution without any configuration needed. Output current setting is available for our LED drivers with NFC or dip-switch features. For LED drivers with just external resistor configuration available, this option is possible with certain limitations.
Please consult your local Helvar Components sales representative for more information.

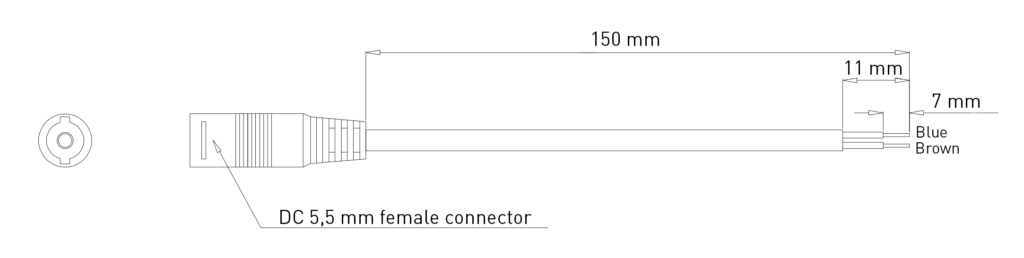

The PanelReady cable options

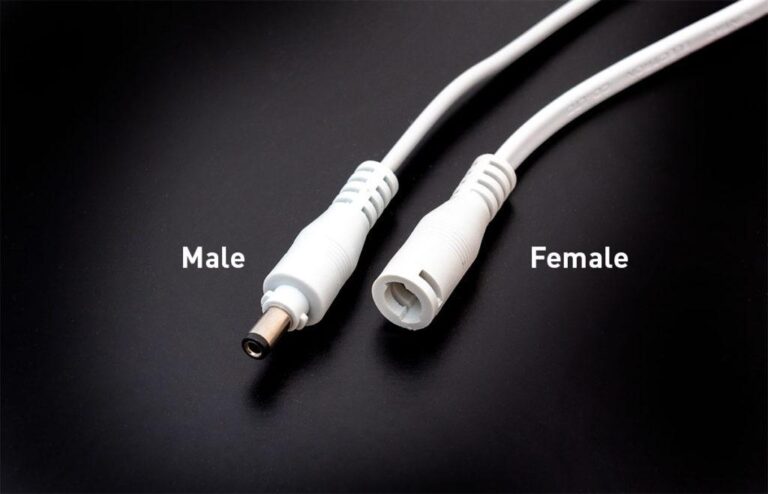

  • DC jack 5,5mm, male and female connectors available
  • 150 mm cabling lenght from connector base to the other end
  • White colour
  • Custom lenghts and specs also possible, ask for more info!

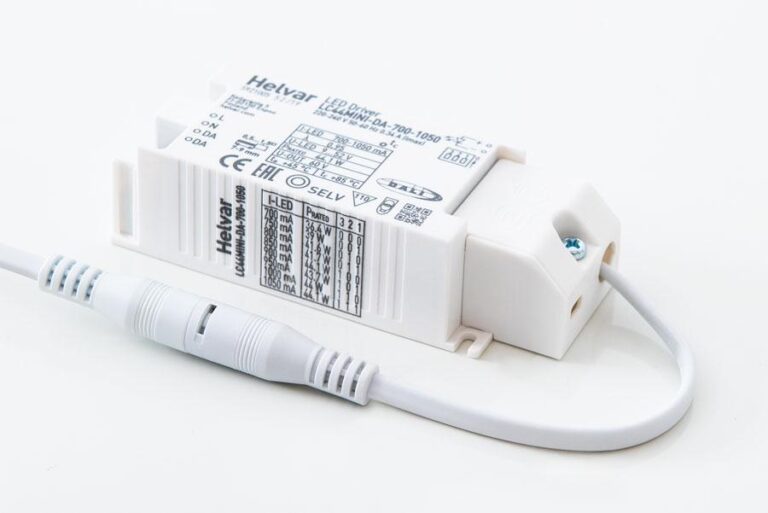

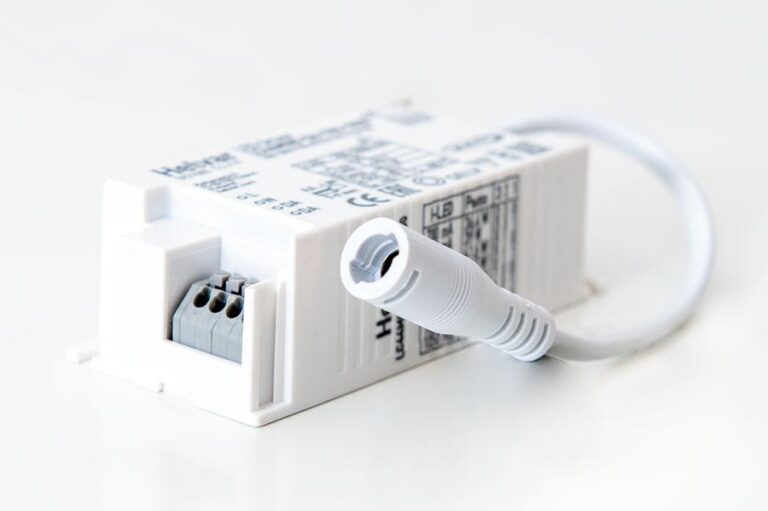

Either one or more cables can be fitted into the driver terminals (input/output side), with a suitable strain relief installed before shipping. See the example datasheet of a complete PanelReady package.

Download Datasheet Example driver + cable combination Download Flyer

How to get your own PanelReady drivers:

1. Choose compatible Helvar Components LED driver, compact, MINI or LOOP

2. Choose the desired strain relief if applicable *

3. Define the cable connection details according to your LED panel (LED+ and LED- polarity)

4. Define the desired output current if needed

5. Contact your local Helvar Components sales representative

* LC-SRA / LC-SRB / LC-SRC strain reliefs by default in compact drivers unless otherwise specified
