Whatever you thought about switchable LED drivers, think again. What capabilities, features and tremendous value could be hidden under the hood of switchable model range? Ready to be enabled & adjusted, or then just make use of the premium traditional on/off LED driver – your choice. We have changed the game.
Elevate your on/off lighting to a new era of switchable.
Set by Mains, revolution of multilumen technology. Adjust light levels on site with up to five levels with just switching the mains.
With the market-leading efficiencies up to 96.5 % both the environmental burden as well as the electricity bills are minimized.
Innovative Smart Switch technology allows you to configure the output currents for different DIP switch combinations in a totally customized way! No need to settle for factory defaults – do it your way.

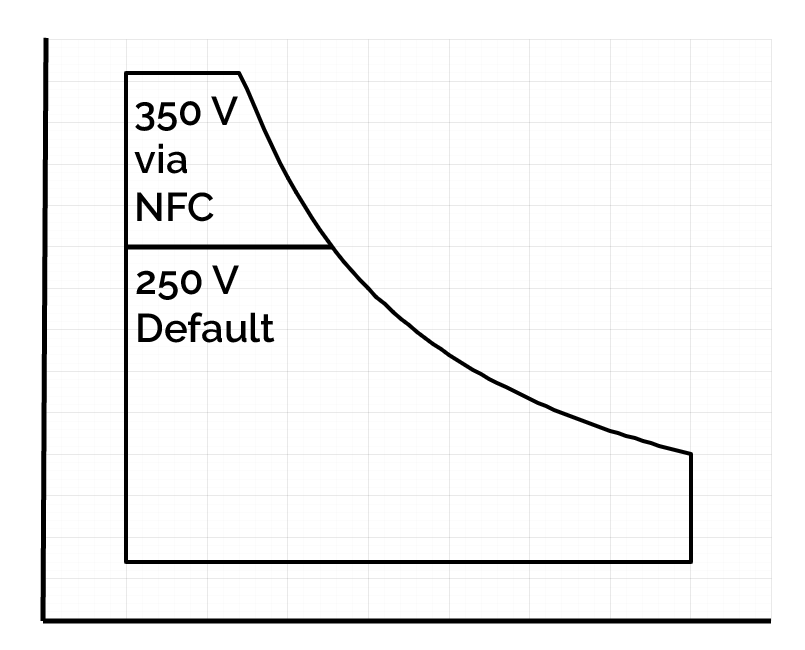

For the first time, now you can unlock higher Uout potential from your LED driver by enabling higher operating voltage range via NFC! Default setting is always Uout of 250 V, but now you can use the same driver model to take advantage of those higher-voltage LED modules! Both the LED working voltage maximum as well as the rated Uout max will be increased with the 350 V mode enabled.

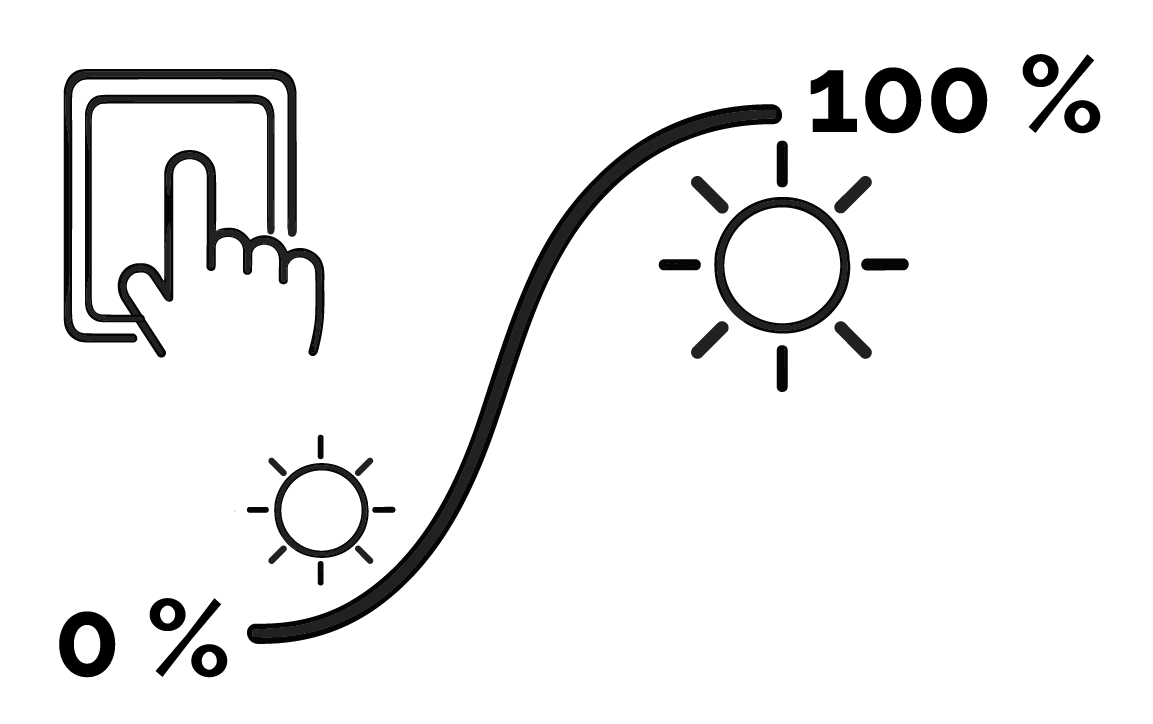

Enable and adjust startup fade feature, for smooth transition from lights off to full illumination. Luxurious added value and visual comfort for on/off lighting.
Analyse LED driver usage statistics as the Histograms feature records how each LED driver operates throughout its life – input voltage, temperature, and output levels. This gives luminaire manufacturers deeper insight into usage of the luminaires and possible changes in the operating environment throughout the lifetime of the LED driver.
Internal thermal protection feature integrated, active and adjustable. If the temperature rises to dangerous levels above Tc maximum, the protection kicks in and limits the output current.
Integrated Constant lumen output (CLO) feature for maximizing the energy-saving potential, adjustable up to 100 000 hours.
Set by Mains
Revolution of multilumen technology
Traditional multilumen luminaires require on-site DIP switch adjustments, opening the luminaires for accessing these and moving man lifts as well as electricians’ hours when adjusting lumen levels especially after the installation.

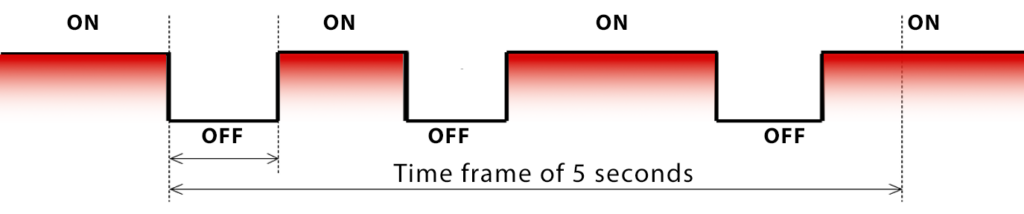

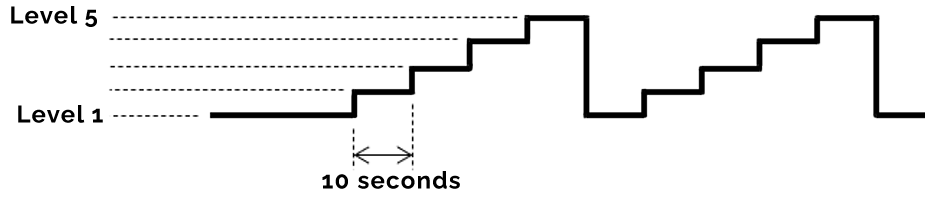

This new and innovative technology will transform Smart BiSwitchable models into intelligent adjustable devices with up to five configurable output light levels. No extra accessories, tools or even disassembly of the luminaires are needed. The setting of the desired choice between preset light levels is done with just switching the mains input in a certain cycle.
No extra wiring: Just connect the Line, Neutral and Protective Earth (L/N/PE).
No additional equipment: No control devices or accessories needed, just connect the mains and power up the luminaires with a capability to break the mains (wall switch, MCB).
No need to disassemble luminaire on site to adjust light levels: Extremely easy and practical multi-wattage luminaire solution.

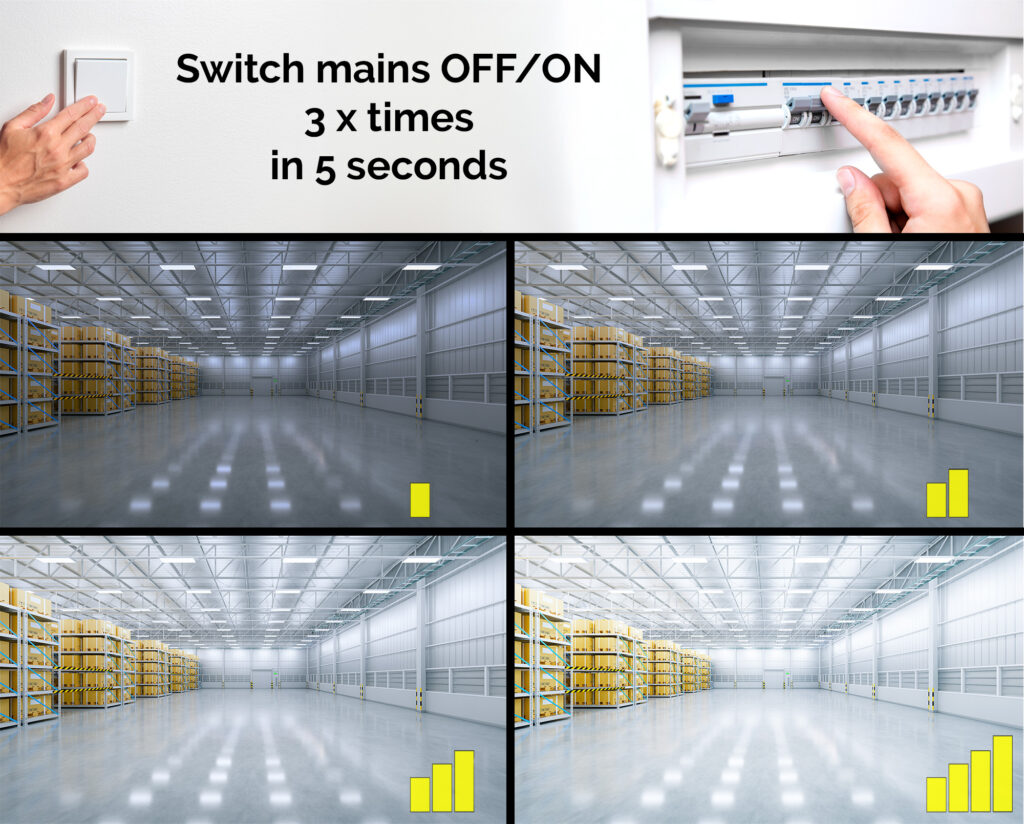

Perfect for on/off trunking systems: Whether it is a large industrial hall, warehouse, retail space etc. Set by Mains makes the multilevel lighting as simple as it gets from the ground level.
Why this adds extraordinary value for:
Electricians: Adjust entire rooms and facility halls from ground level with just a few clicks – massive time savings on installation and fine-tuning the lux levels.
Luminaire manufacturers: One product serves up to five different lumen level applications, selected with ease on site – simplified logistics and enhanced value proposition.
Facility managers: Instant lighting level adaptation to changing space usage throughout a building’s lifecycle.
Download Set by Mains flyer
In order to make the lives of professionals easier we teamed up with RZB. Luminaire manufacturer’s vision combined with Helvar Components’ LED driver expertise created an example of lighting innovation meeting practical installation needs while being brilliantly simple to use.

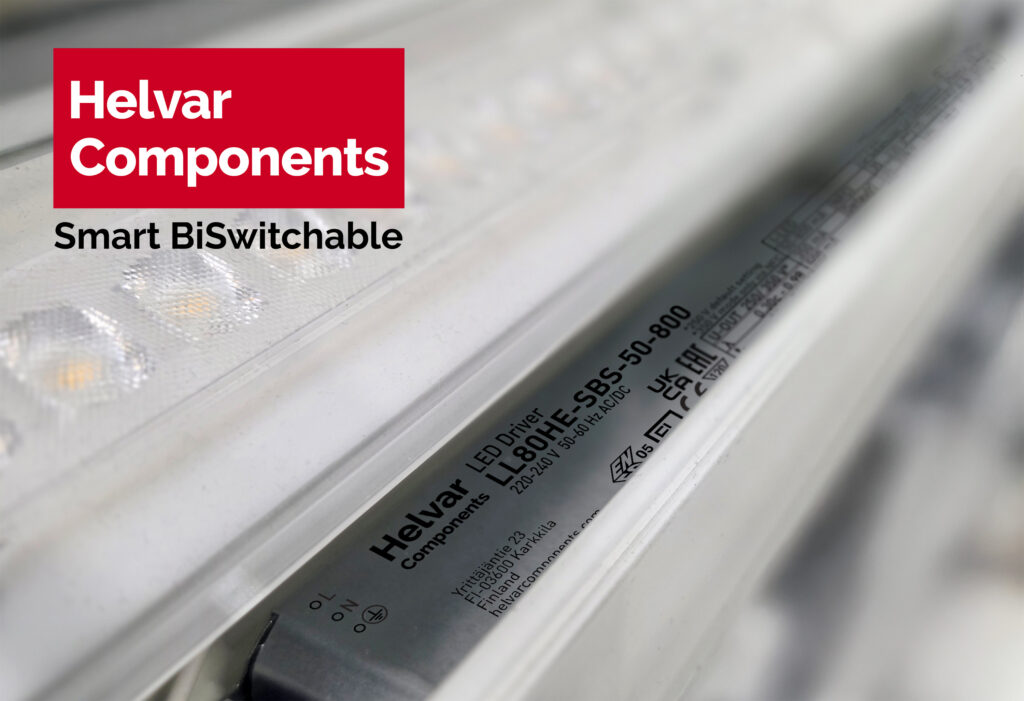

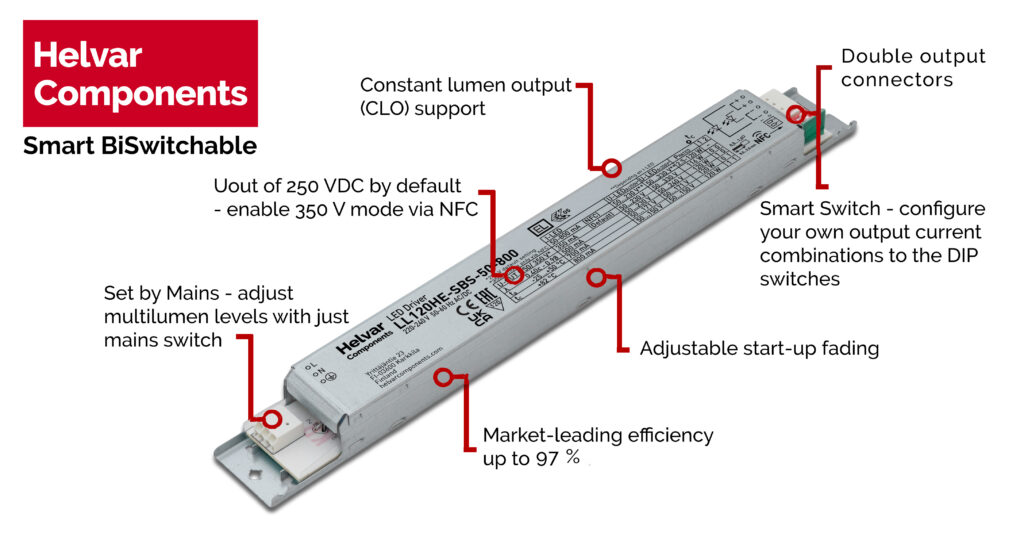

80 W on/off Smart BiSwitchable LED driver with market-leading efficiency up to 96.5 %
