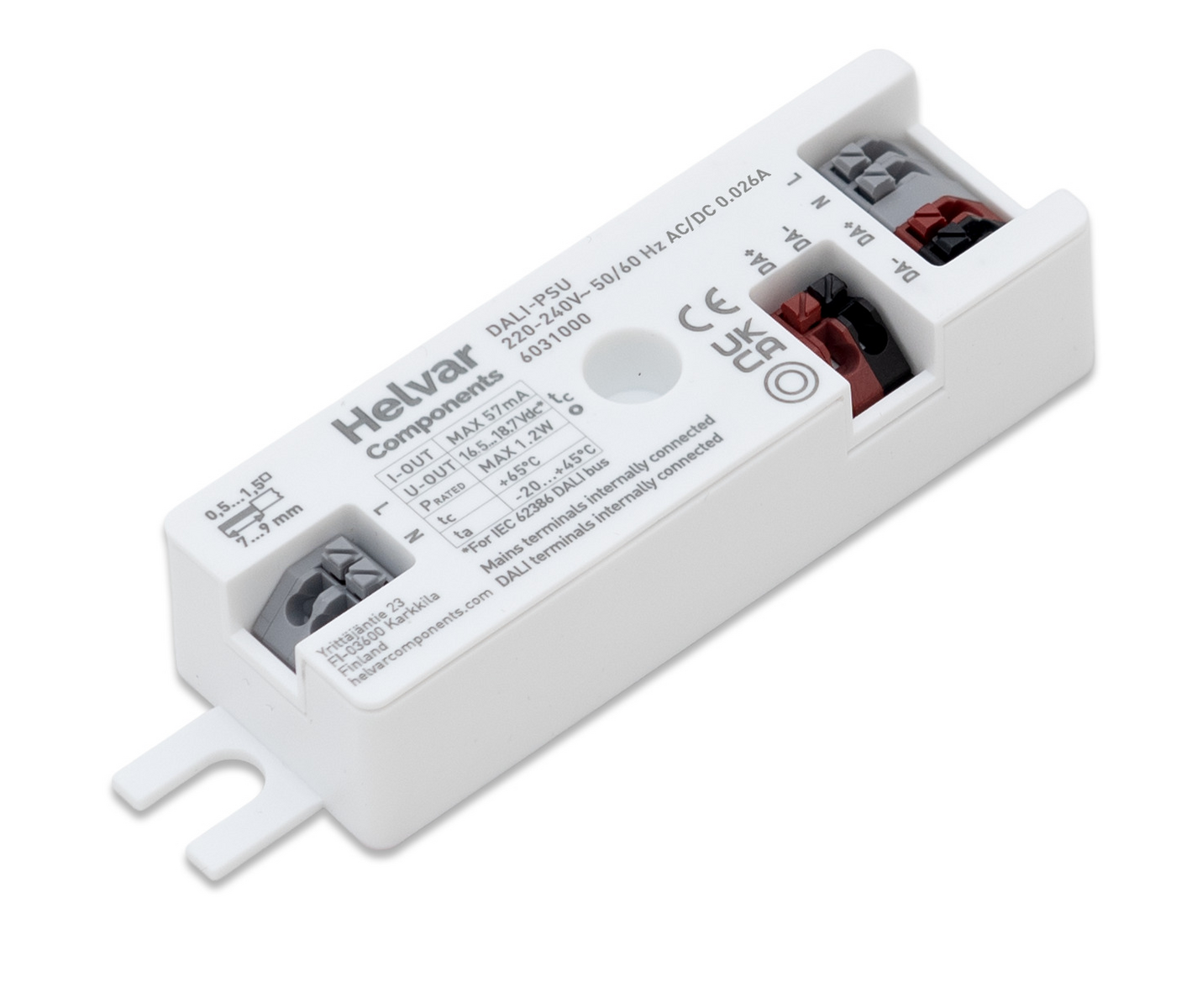

DALI-PSU is a slim and convenient DALI bus power supply unit to be used built in inside e.g. luminaires with DALI-powered accessories such as D4i-compatible wireless nodes and sensors.
| Output | DALI |
|---|---|
| Load protection | FELV |
| Max output power (W) | 1.2 |
| Min | Max | ||
|---|---|---|---|
| Iout | 57 | ||
| Uout | 16.5 – 18.7 |
| Voltage range (VAC) | 220-240 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 220-240 |
| Max temperature at tc point (°C) | 65 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | DALI-2 |
|---|

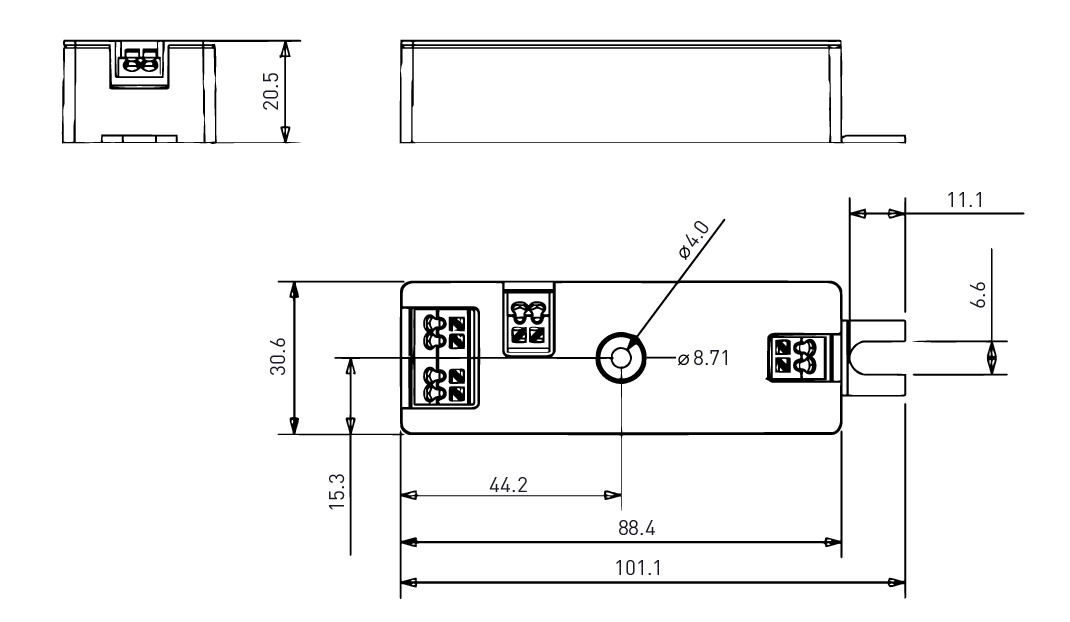

| Very small dimensions for optimised use inside luminaires. |
|---|
| Offers power to the DALI bus, suits especially well intra-luminaire DALI solutions providing power for accessories such as nodes and sensors. |

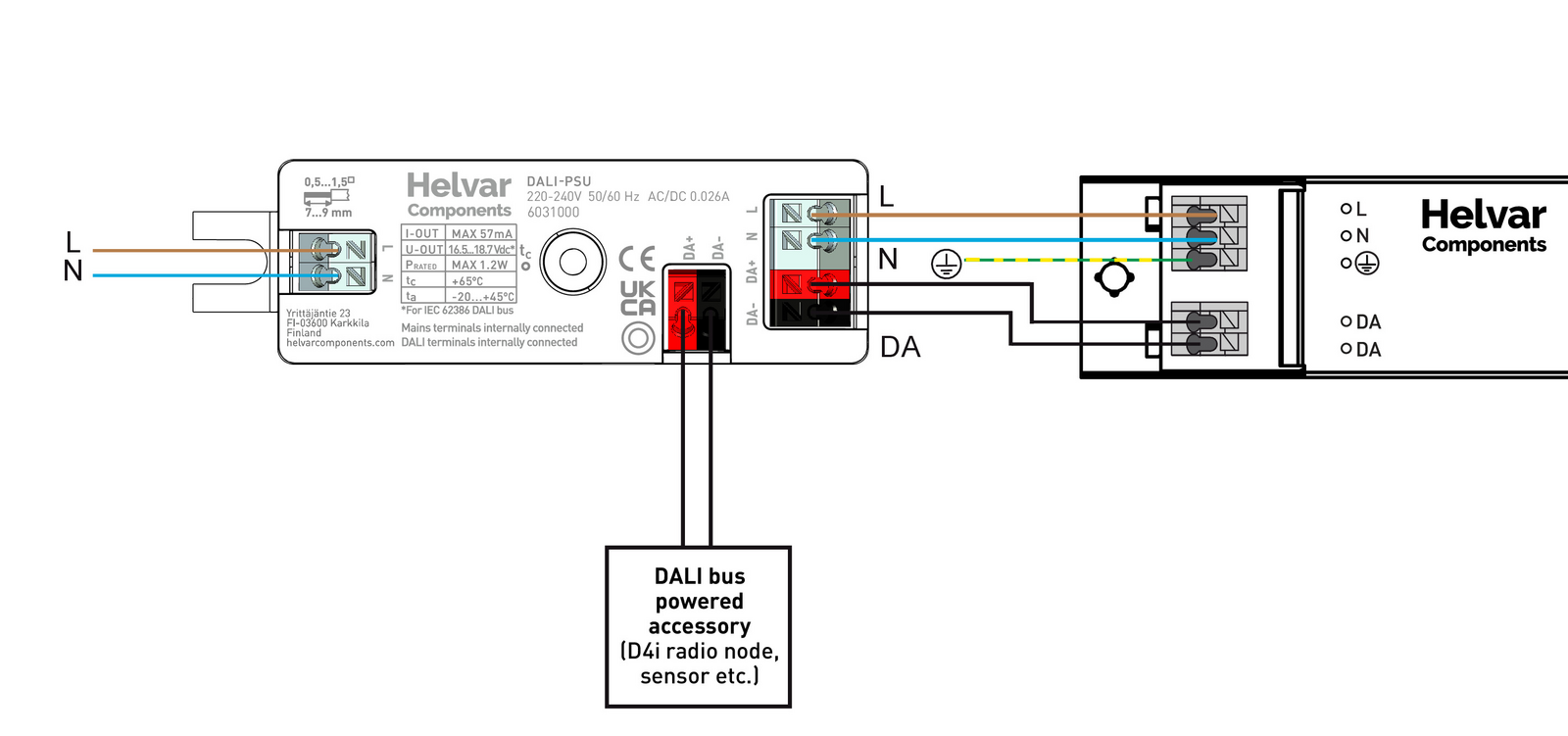

| Mains input through-wiring to the LED driver. |
| AC or DC input supported. |
| Order code | Description |
|---|---|
| 603100 | DALI PSU |
