LC15TINY-DA-100-700

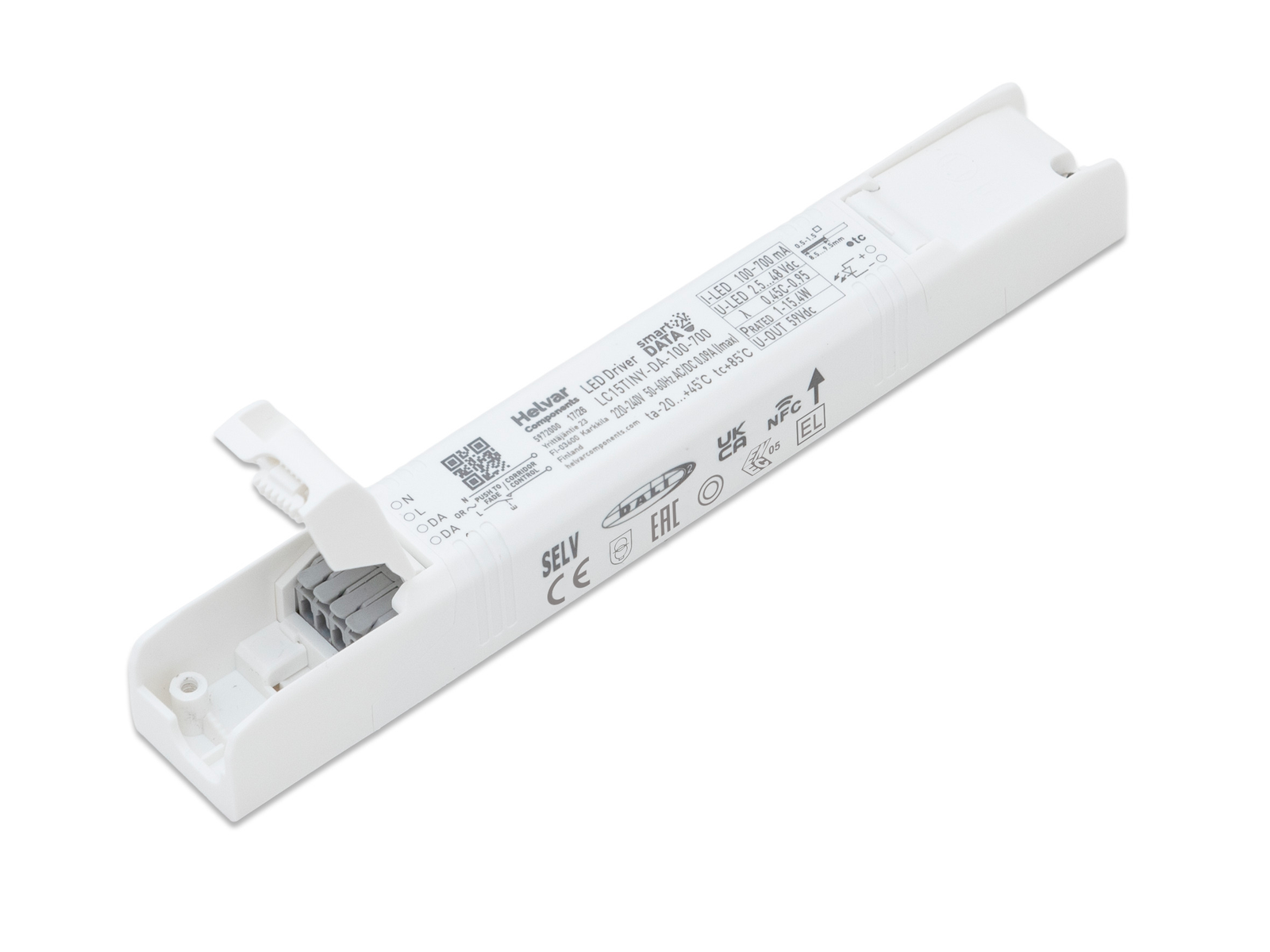

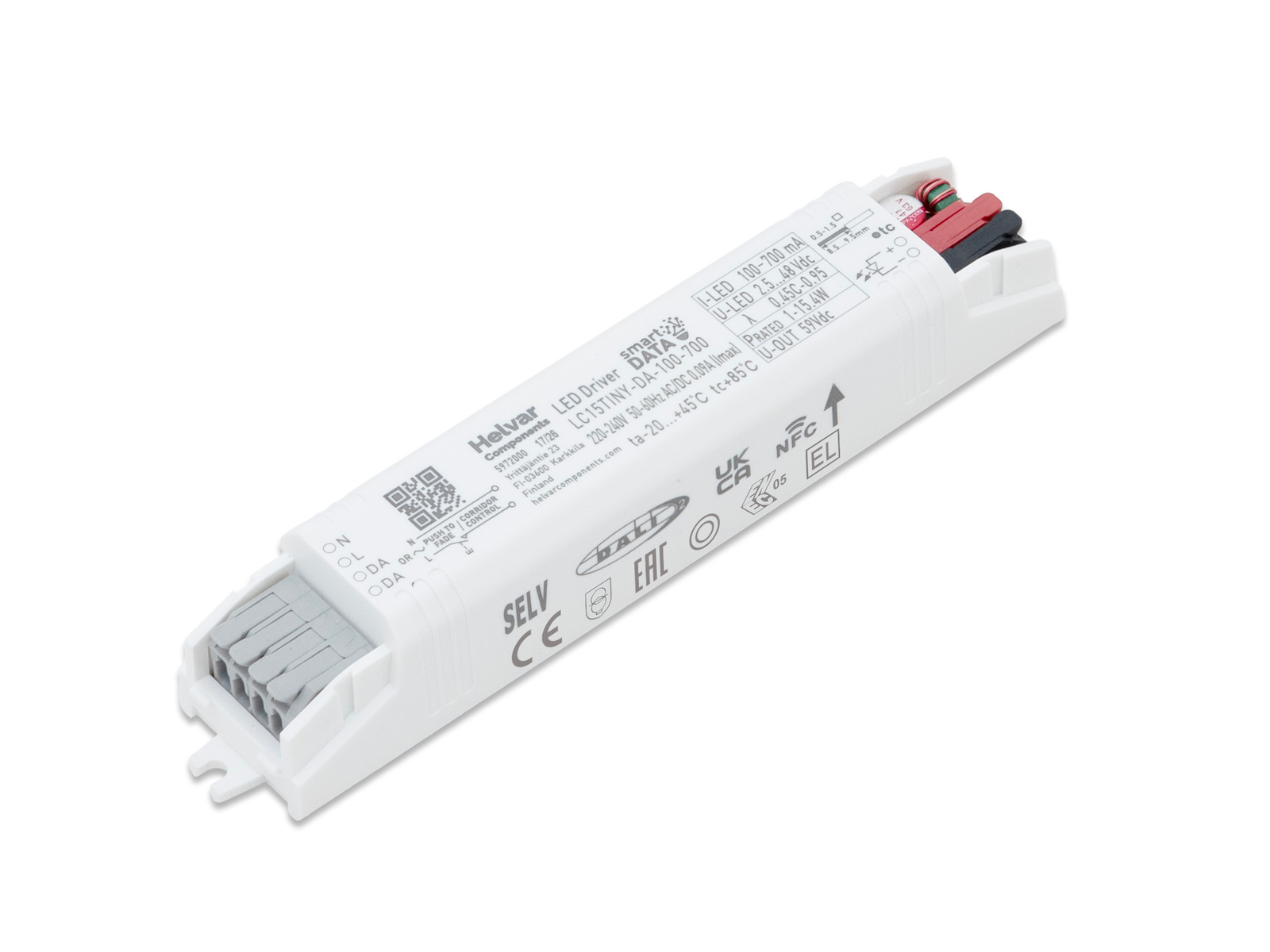

15 W SELV Dimmable DALI-2 tiny-sized LED driver for independent use

  • 100 mA – 700 mA adjustable current output
  • Product number: 597200

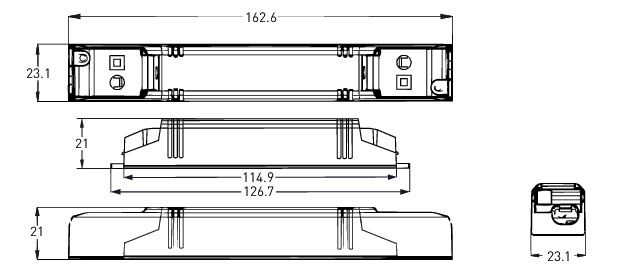

  • Dimensions: 162.6 x 23.1 x 21 mm
  • LED Driver family: TINY
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

15.4

Power factor at full load

0.97

Efficiency up to (%)

86

Total Harmonic Distortion @ Full power (THD %)

10

Uout max, abnormal

59

MinMax
Iout100700
Uout10 - 482.5 - 22

Input & Operating Conditions

Voltage range (VAC)

198 VAC – 264 VAC

DC input characteristics

Approved for emergency lighting applications

DC range (V)

180 - 280

Max temperature at tc point (°C)

85

Ambient temperature range

-20 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

50000

Independent usage✓
Luminaire class II✓
Luminaire class I✓
Luminaire class III✓

Control

Dimming method

Amplitude dimming

Control

DALI-2

Dimming range

1 % - 100 %

Features

Extremely compact dimensions (162.6 x 23.1 x 21 mm) for tight spaces
Fits through a cutout hole of Ø 30 mm
D4i compatible Smart Data features (DALI 251-253)
Integrated (removable) strain reliefs for independent installation and driving Class III luminaires
Helvar Driver Configurator support✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

CLO✓
NFC✓

More information

Certificates


ENEC
CB
EL

Order codes

Order codeDescription
597200LC15TINY-DA-100-700
