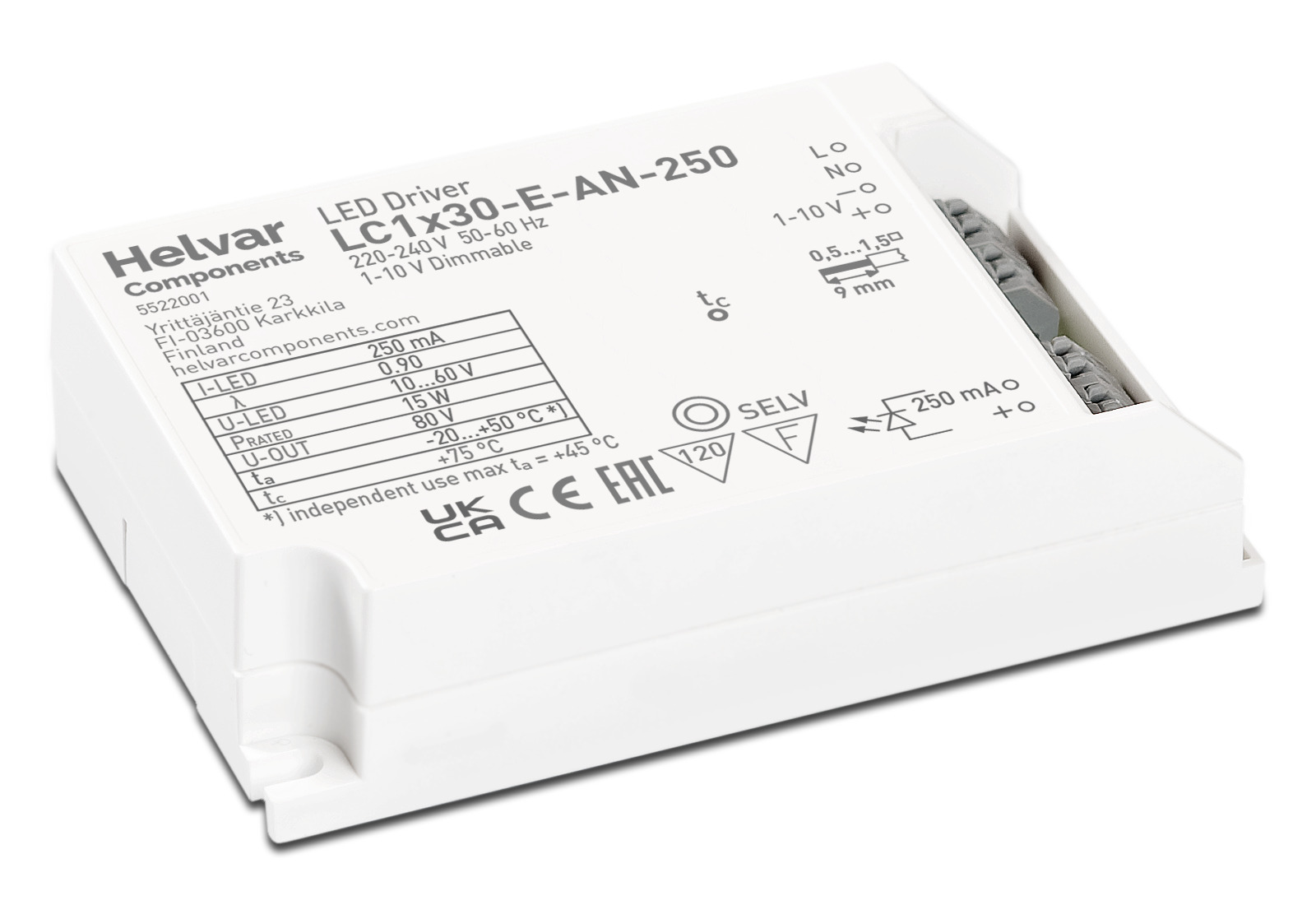

LC1x30-E-AN-250 (Discontinued)
30 W 1–10 V dimmable LED driver
- 250 mA fixed current output
- Product number: 5522000
- Dimensions: 106 x 67 x 28 mm
- LED Driver family: Other drivers
30 W 1–10 V dimmable LED driver
| Output | Fixed current |
|---|---|
| Load protection | SELV120 |
| Max output power (W) | 30 |
| Power factor at full load | 0.96 |
| Min | Max | ||
|---|---|---|---|
| Iout | 250 | ||
| Uout |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | 1-10 V |
|---|---|
| Dimming range | 1% – 100% |
| NTC | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Compatible products |
|---|
| EC Declaration of conformity |
|---|
| LEDesign | |
|---|---|
| LED tools, help, troubleshooting | |
| Weblink3 | https://helvar.com/wp-content/uploads/2021/11/Helvar-LEDDriver-ProductCodeMarkings-2021.pdf |
| Order code | Description |
|---|---|
| 5522000 | LC1x30-E-AN-250 60/1680 |
