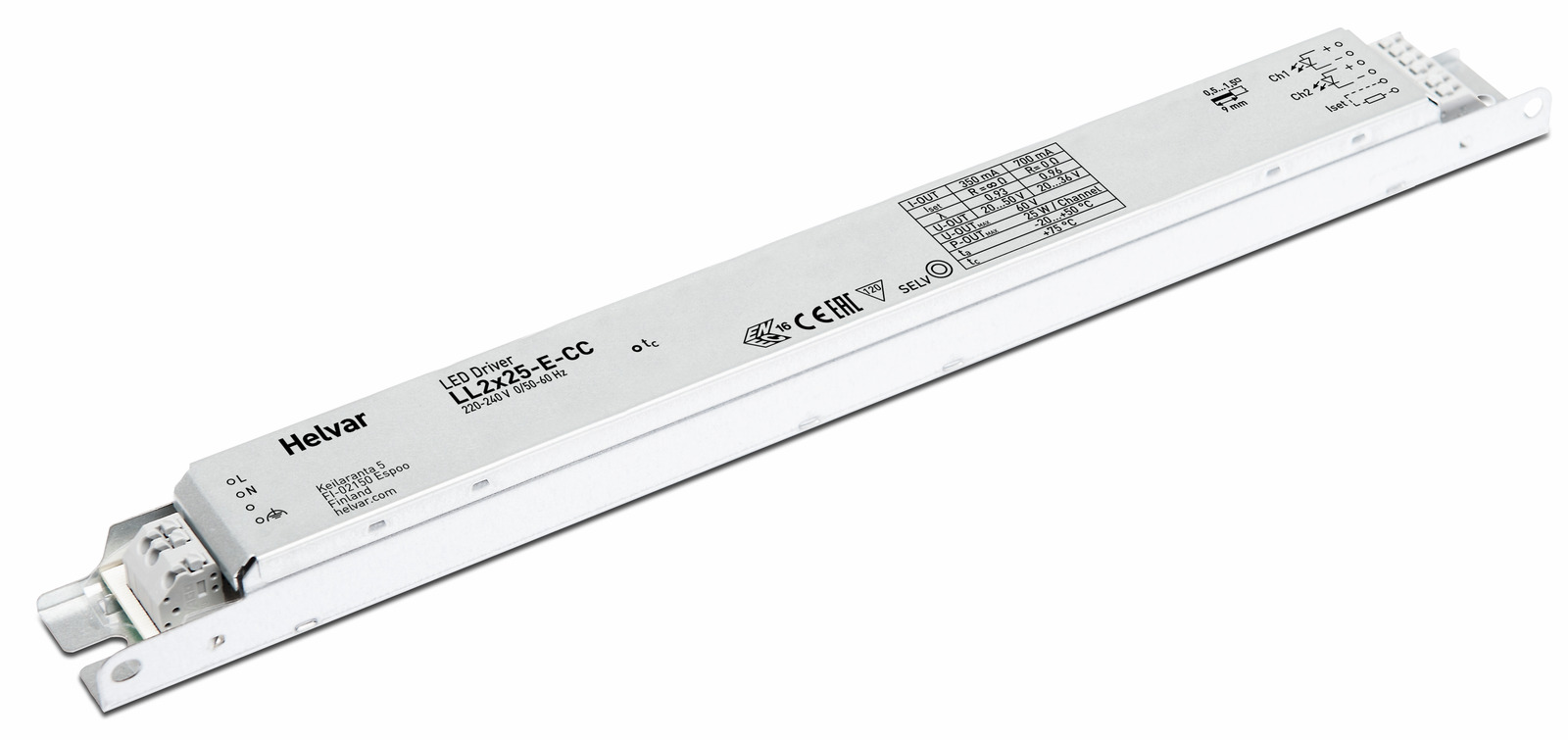

LL2x25-E-CC (Discontinued)
2×25 constant current LED driver
- 350 mA – 700 mA adjustable current output
- Product number: 5544004
- Dimensions: 360 x 21 x 30 mm
- LED Driver family: Other drivers
2×25 constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 50.4 |
| Efficiency up to (%) | 87 |
| Power factor at full load | 0.96 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 20–50 | 20–36 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Compatible products |
|---|
