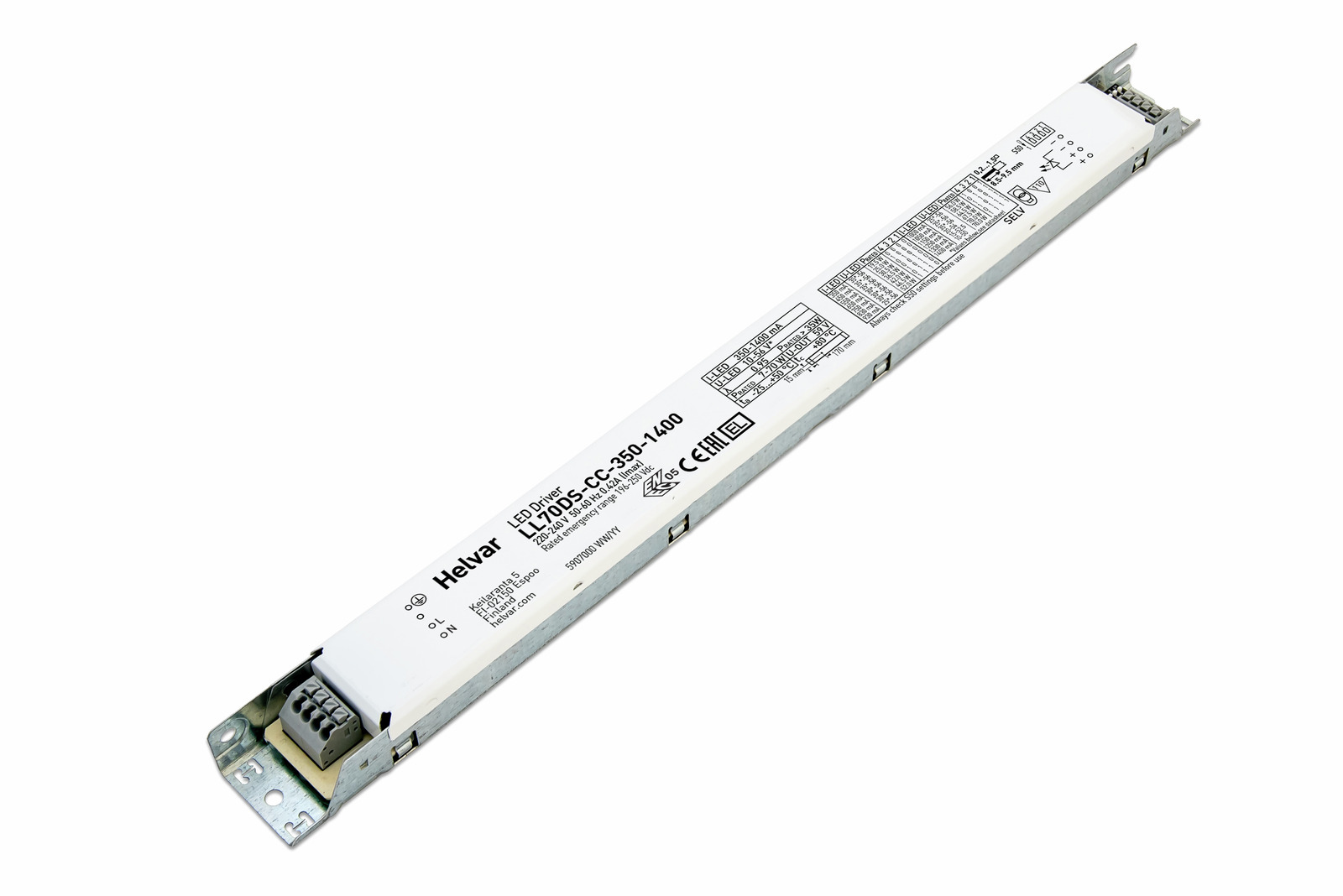

LL70DS-CC-350-1400
70 W constant current LED driver
- 350 mA – 1400 mA adjustable current output
- Product number: 5907000
- Dimensions: 359 x 21 x 30 mm
- LED Driver family: Other drivers
70 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 70 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.95 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 1400 | |
| Uout | 35–56 | 10–50 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-275 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Order code | Description |
|---|---|
| 5907000 | LL70DS-CC-350-1400 |
