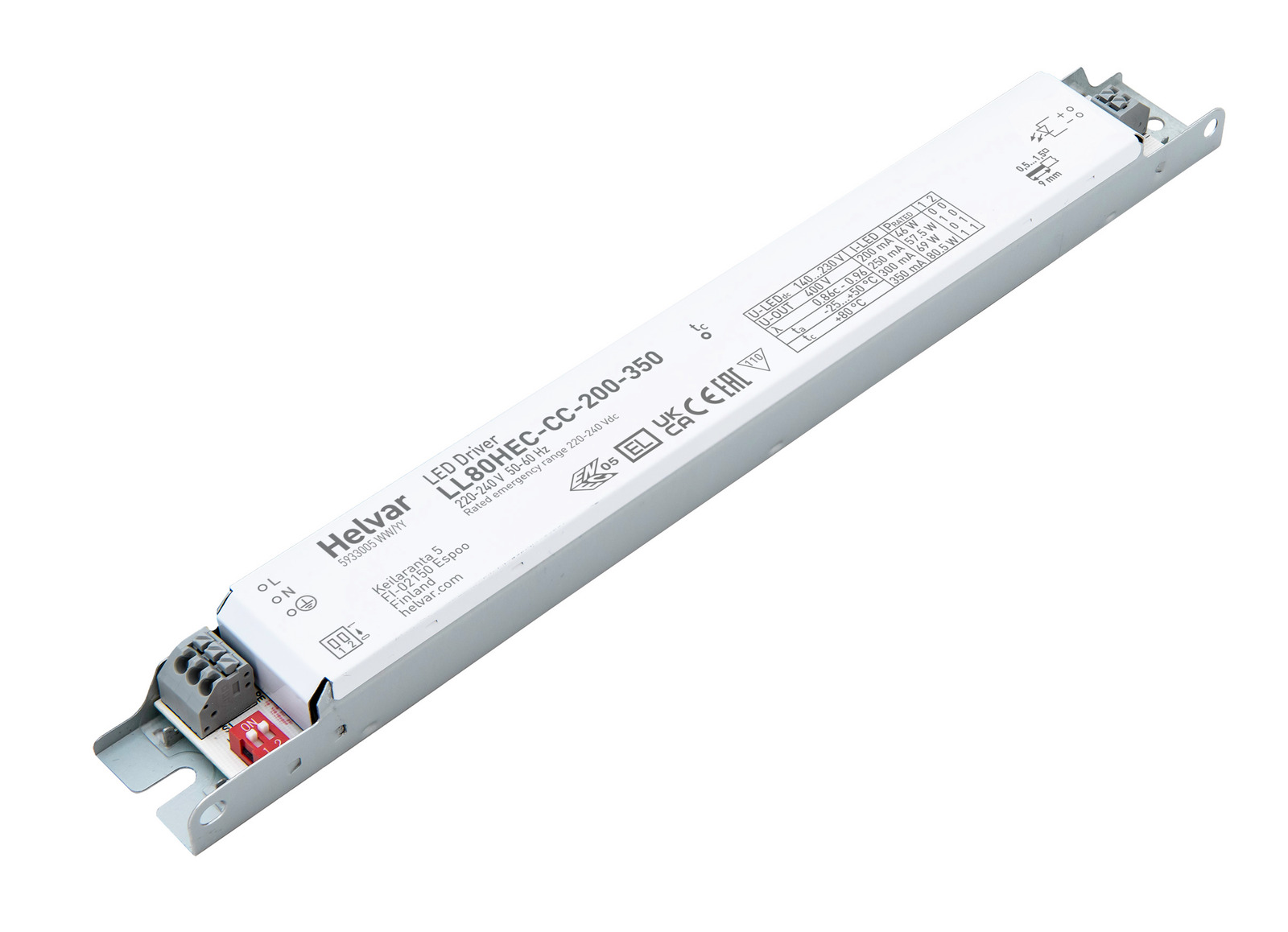

LL80HEC-CC-200-350 (Discontinued)
LL80HEC-CC-200-350 (Discontinued) - Image 2
LL80HEC-CC-200-350 (Discontinued) - Image 3

LL80HEC-CC-200-350 (Discontinued)

80 W constant current LED driver

  • 200/250/300/350 mA DIP switch selectable currents output
  • Product number: 5933005
  • Dimensions: 280 x 21 x 30 mm
  • LED Driver family: HEC Series
  • Replacing product: LL75HEC-CC-350-550
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

Non-isolated

Max output power (W)

80

Efficiency up to (%)

94

Power factor at full load

0.96

MinMax
Iout200350
Uout140 – 230140 – 230

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

80

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

50000

Luminaire class I✓
Luminaire class II✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓

More information

Certificates


CB
EL
ENEC

Order codes

Order codeDescription
5933005LL80HEC-CC-200-350 10/2000
