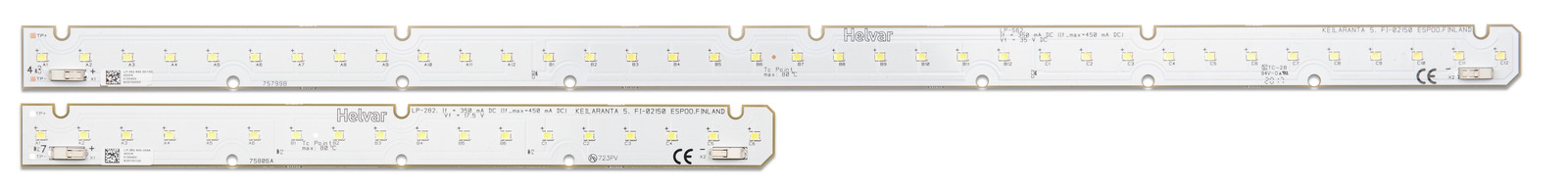

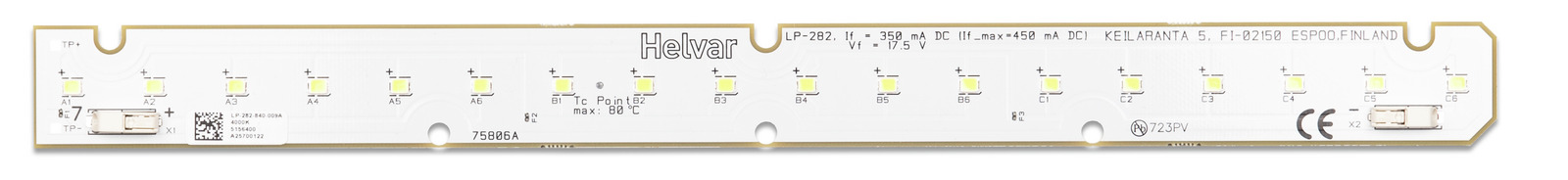

LP-282A (Discontinued)
Linear LED Module
- Product number: 5156
- Dimensions: 279,8 x 23,8 x 6,2 mm
- Typical lumens (4000K @Tp): 890
- Forward voltage (4000K @Tp) (V): 17.5
- Typical efficacy (4000K @Tp): 146
- LED Module family: Linear LP
Linear LED Module
| Compatible products |
|---|
| Maximum operating current [mA] | 450 |
|---|---|
| Maximum rated voltage [V] | 400 |
| Nominal operating current(mA) | 350 |
| IP Rating | IP00 |
|---|---|
| Lifetime up to (h) | 50000 |
| Maximum temperature at Tc point [°C] | 80 |
| Operating temperature range | –20…+50 °C, Tp = Tc 65 °C |
| 3000 K | ✓ |
|---|---|
| 4000 K | ✓ |
| 5000 k | ✓ |
| Beam angle [°] | 120 |
| Colour rendering index, min | 80 |
| Risk group | 1 |
| Order code | Description |
|---|---|
| 515630 | LP-282-830-009A 60/300 |
| 515640 | LP-282-840-009A 60/300 |
| 515650 | LP-282-850-009A 60/300 |
