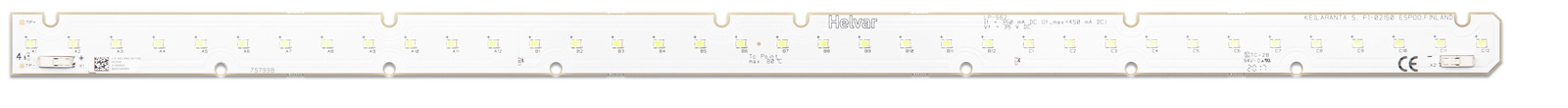

LP-562A (Discontinued)
Linear LED Module
- Product number: 5155
- Dimensions: 559,8 x 23,8 x 6,2 mm
- Typical lumens (4000K @Tp): 1780
- Forward voltage (4000K @Tp) (V): 34.9
- Typical efficacy (4000K @Tp): 146
- LED Module family: Linear LP
Linear LED Module
| Compatible products |
|---|
| Maximum operating current [mA] | 450 |
|---|---|
| Maximum rated voltage [V] | 400 |
| Nominal operating current(mA) | 350 |
| IP Rating | IP00 |
|---|---|
| Lifetime up to (h) | 50000 |
| Maximum temperature at Tc point [°C] | 80 |
| Operating temperature range | –20…+50 °C, Tp = Tc 65 °C |
| 3000 K | ✓ |
|---|---|
| 4000 K | ✓ |
| 5000 k | ✓ |
| Beam angle [°] | 120 |
| Colour rendering index, min | 80 |
| Risk group | 1 |
| Order code | Description |
|---|---|
| 515530 | LP-562-830-017A 30/150 |
| 515540 | LP-562-840-017A 30/150 |
| 515550 | LP-562-850-017A 30/150 |
