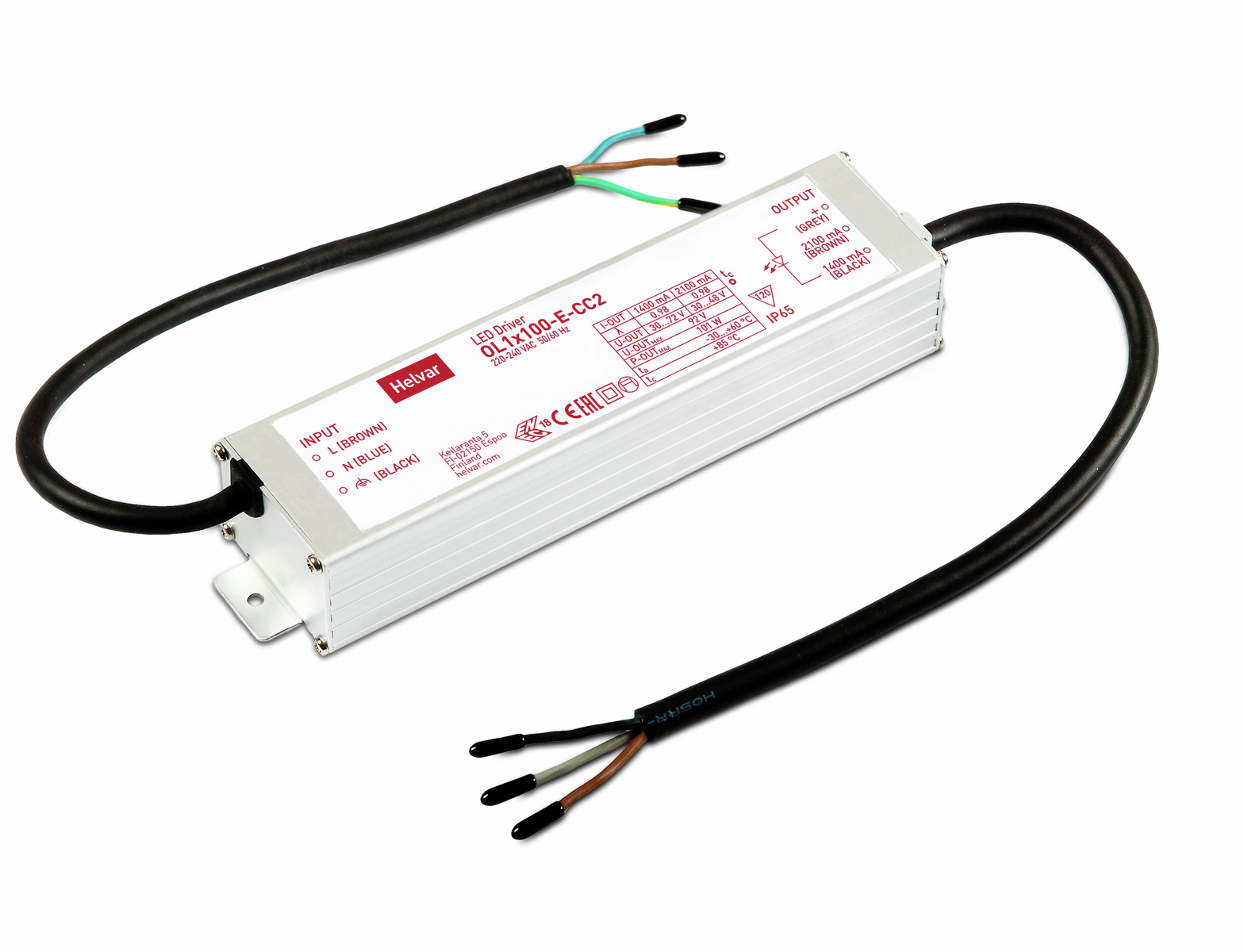

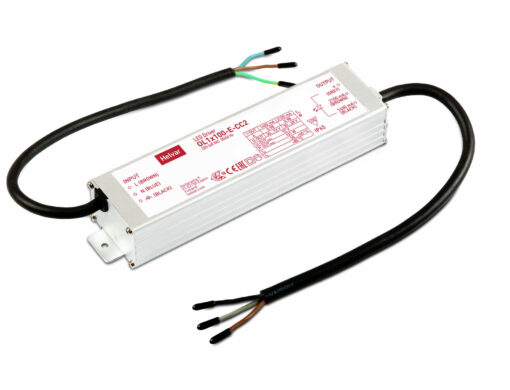

OL1x100-E-CC2 (Discontinued)
100 W constant current LED driver
- 1400 / 2100 mA multiple currents output
- Dimensions: 234 x 35 x 53 mm
- LED Driver family: Other drivers
100 W constant current LED driver
| Output | Multiple currents |
|---|---|
| Load protection | Isolated |
| Max output power (W) | 105 |
| Efficiency up to (%) | 91 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 1400 | 2100 | |
| Uout | 30–72 | 30–48 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –30 °C .. +60 °C |
| IP Rating | IP65 |
| Lifetime up to (h) | 50000 |
| Independent usage | ✓ |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Integrated strain relief | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
