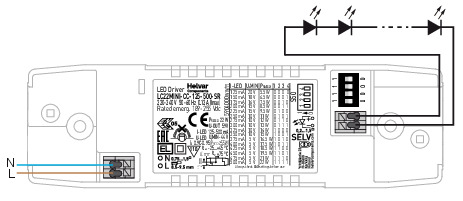

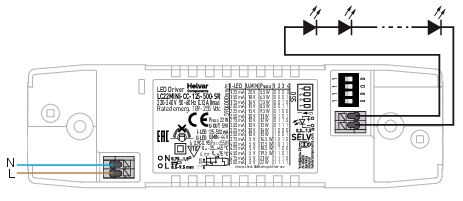

LC22MINI-CC-125-500-SR - Image 2

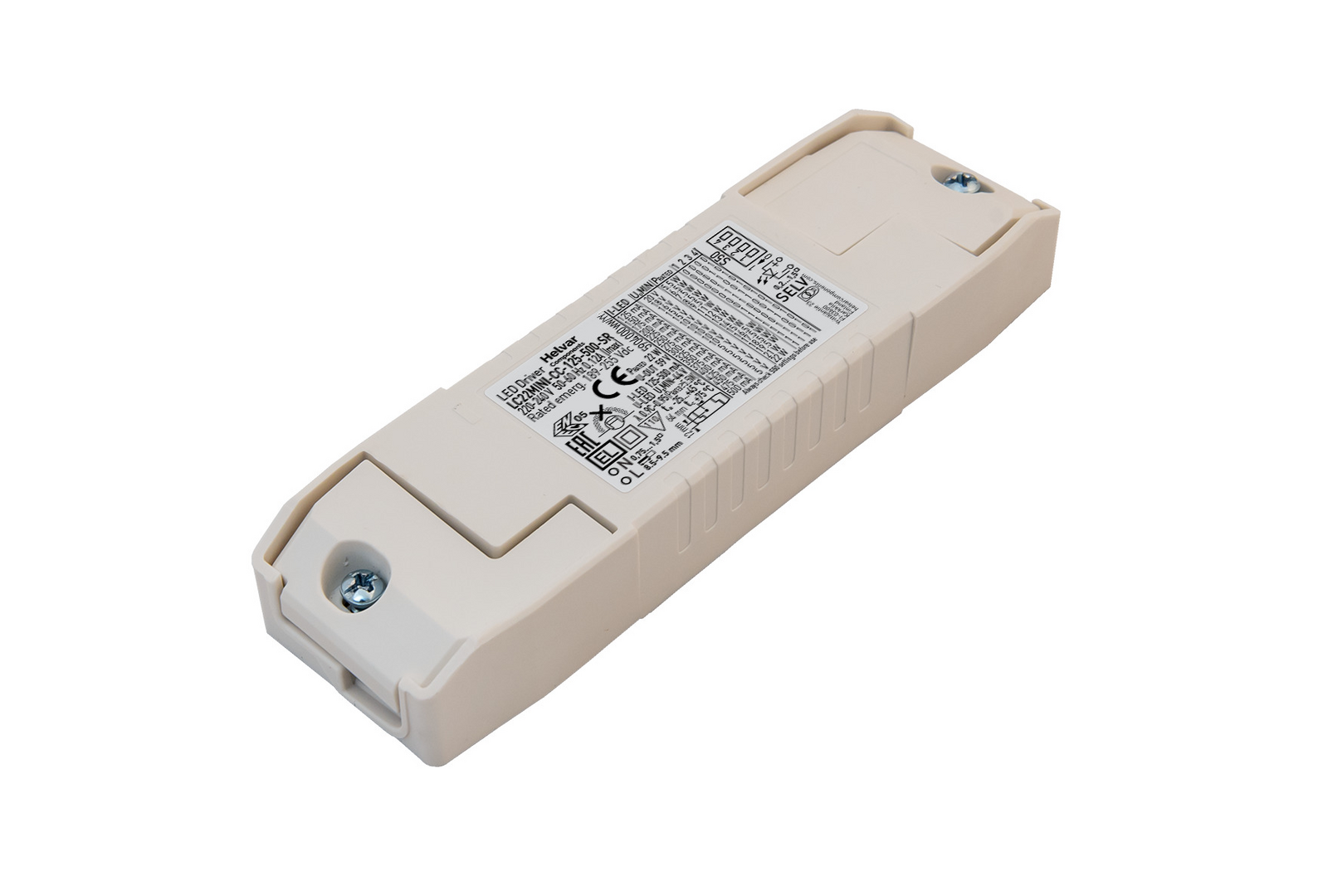

LC22MINI-CC-125-500-SR - Image 3

LC22MINI-CC-125-500-SR

22 W constant current LED driver

  • 125 mA – 500 mA adjustable current output
  • Product number: 5904000
  • Dimensions: 146,5 x 21,5 x 42,5 mm
  • LED Driver family: MINI Slim
  • Main features: PanelReady
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

22

Uout max, abnormal

59

Efficiency up to (%)

89

Power factor at full load

0.95

MinMax
Iout125500
Uout20–445–44

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

75

Ambient temperature range

–25 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
Integrated strain relief✓

Order codes

Order codeDescription
5904000LC22MINI-CC-125-500-SR 50
