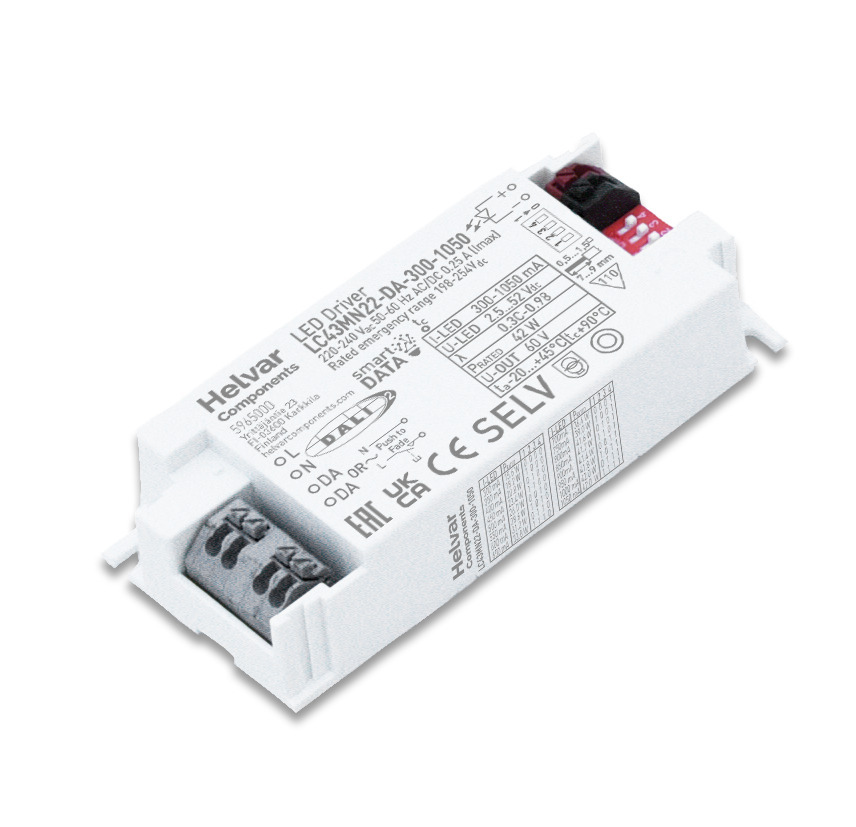

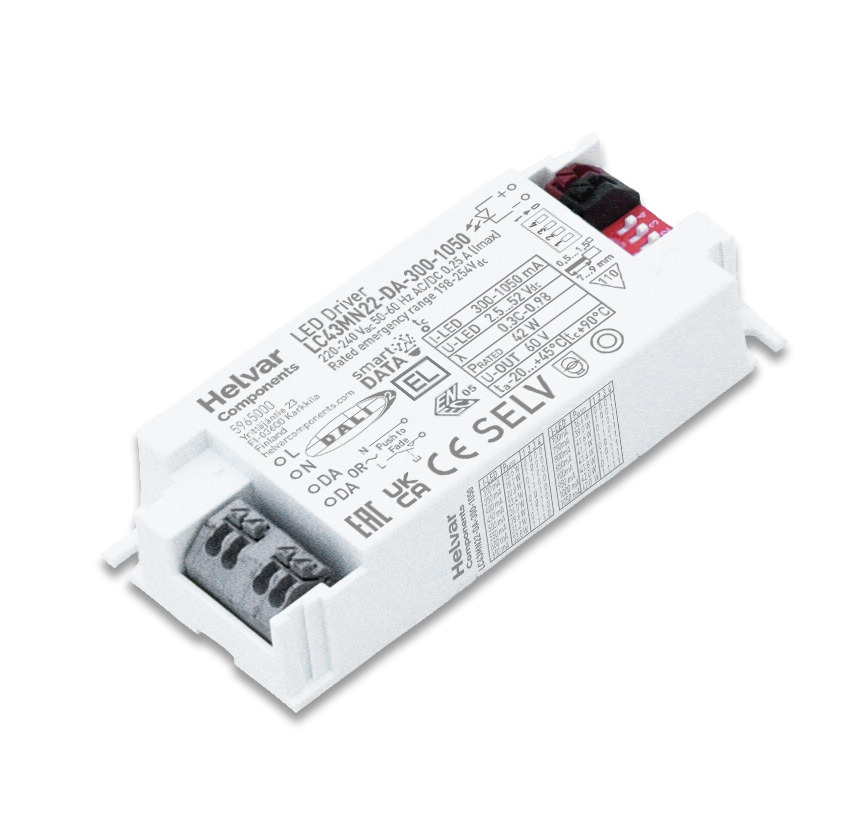

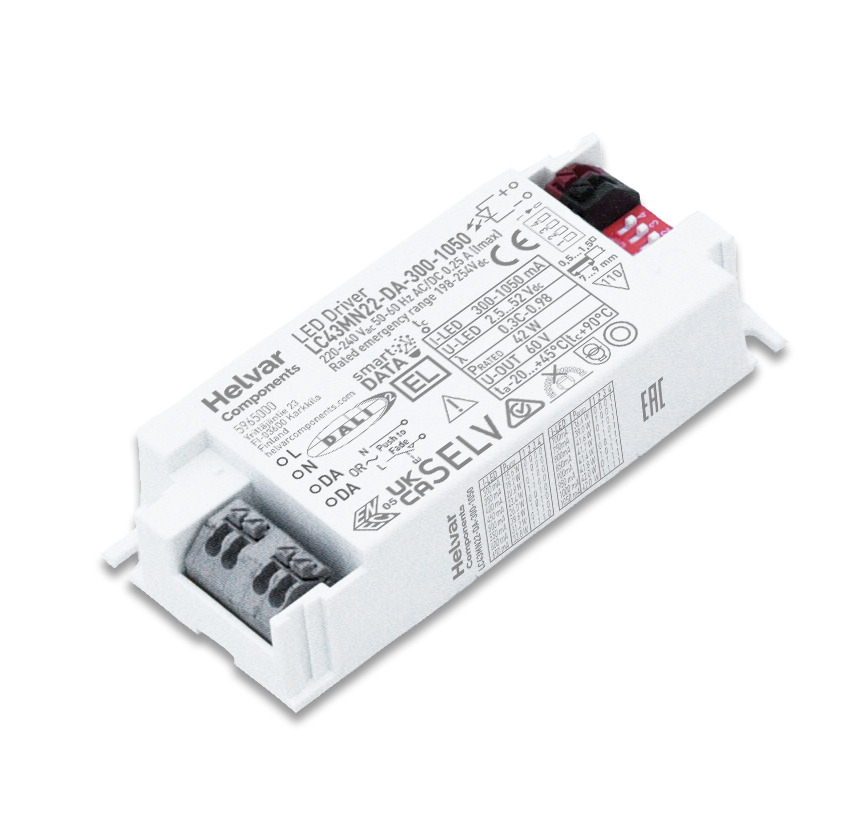

LC43MN22-DA-300-1050

42 W DALI-2 dimmable 22 mm slim LED driver for built-in use. Also separate strain reliefs available!

  • 300 mA – 1050 mA adjustable current output
  • Product number: 5965000

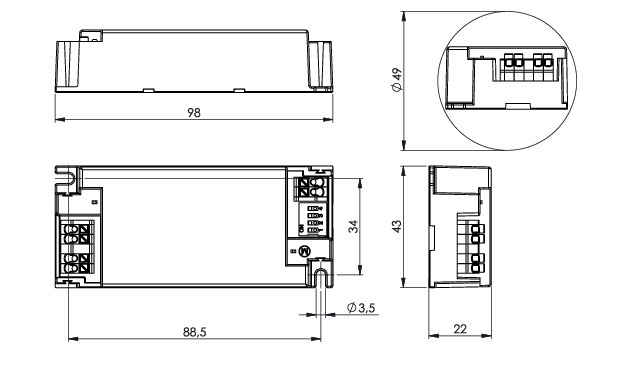

  • Dimensions: 98 x 43 x 22mm
  • LED Driver family: MINI Slim
  • Main features: DALI, Amplitude, PanelReady
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

42

Total Harmonic Distortion @ Full power (THD %)

7

Power factor at full load

0.98

Efficiency up to (%)

91

Uout max, abnormal

60

MinMax
Iout3001050
Uout2.5 - 522.5 - 40

Input & Operating Conditions

Voltage range (VAC)

198-264

DC input characteristics

Suitable for DC use

DC range (V)

180-280

Max temperature at tc point (°C)

90

Ambient temperature range

–20 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class III✓
Luminaire class II✓

Control

Control


DALI-2
Push to Fade

Dimming method

Amplitude dimming

Dimming range

1% - 100%

Features

Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

Complies with IEEE 1789-2015✓
Helvar Driver Configurator support✓
Optional click-on strain relief for installation✓

Compatible products

Compatible products

LC-SR-MN22, LC-SR-MN22-LOOP

Order codes

Order codeDescription
5965000LC43MN22-DA-300-1050 50/3000
