| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 150 |
| Efficiency up to (%) | 96 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 257–350 | 128–214 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 90 |
| Ambient temperature range | –40 °C ... +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control |
|
|---|---|
| Dimming range | 1% – 100% |
| Dimming method | Amplitude dimming |
| Helvar Driver Configurator support | ✓ |
|---|---|
| Intelligent features | Current setting by software, Constant Light Output (CLO), Data memory bank |
| NTC | ✓ |
| Optional click-on strain relief for installation | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| CLO | ✓ |
| Current setting resistors | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|

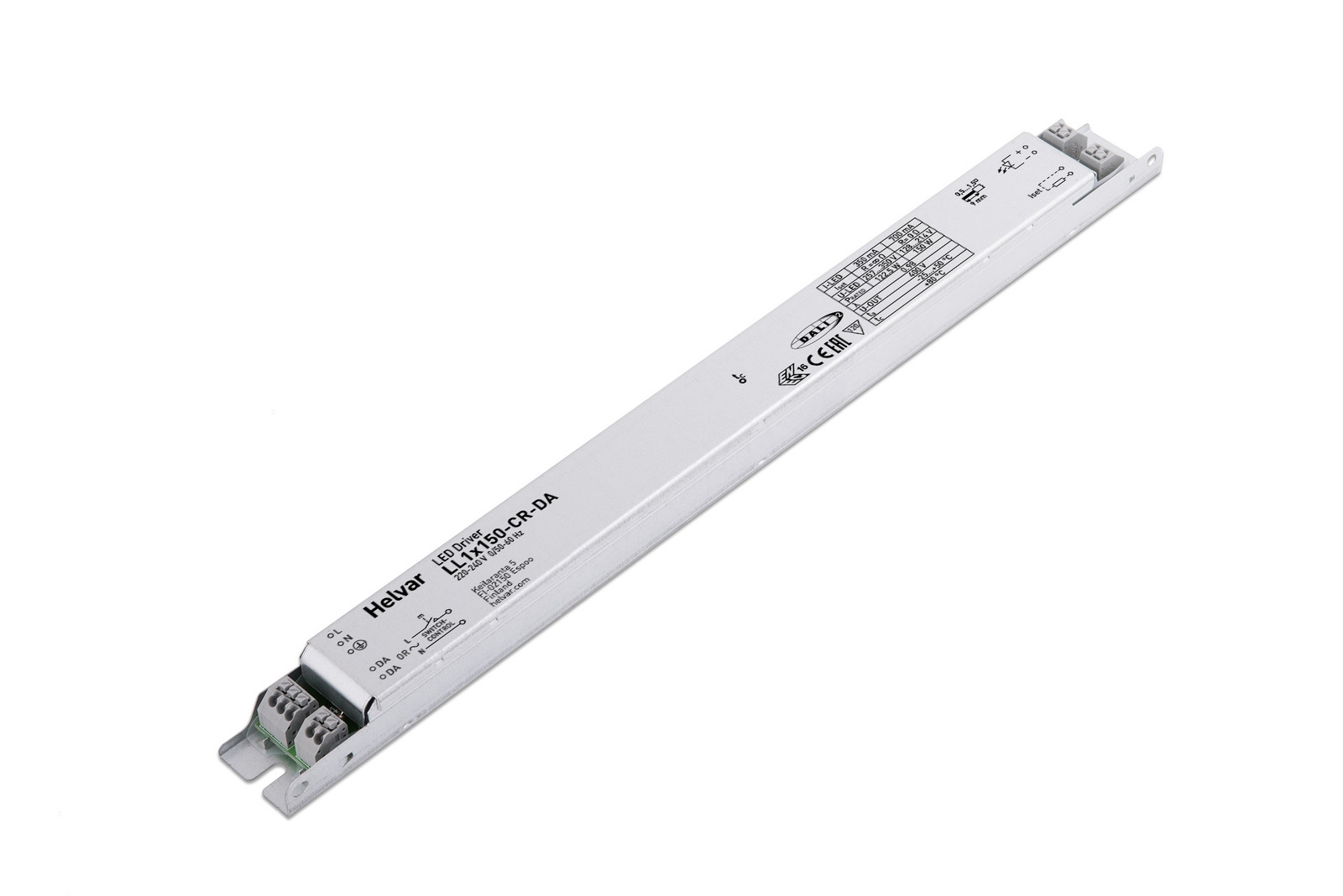

| 5790001 | LL1x150-CR-DA 10/1500. |
