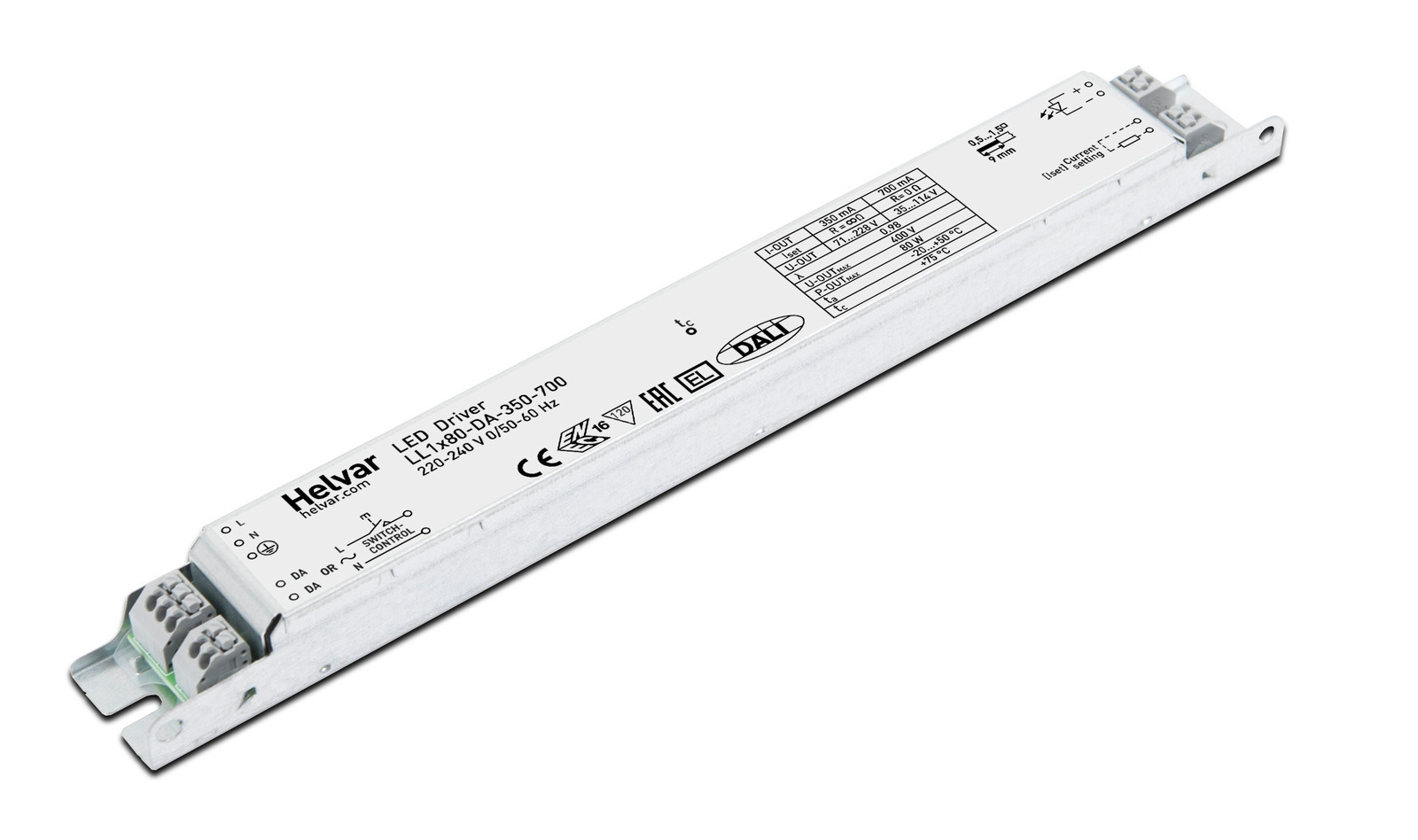

LL1x80-DA-350-700

80 W DALI dimmable LED driver

  • 350 mA – 700 mA adjustable current output
  • Product number: 5556004
  • Dimensions: 280 x 30 x 21 mm
  • LED Driver family: Other drivers
  • Main features: Hybrid, DALI, Efficient
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

80

Efficiency up to (%)

94

Power factor at full load

0.98

MinMax
Iout350700
Uout71–22835–114

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176–280

Max temperature at tc point (°C)

85

Ambient temperature range

–20 °C ... +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Control


DALI
Switch-Control 2

Dimming range

1% – 100%

Dimming method

Hybrid dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Data memory bank

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
CLO✓
Current setting resistors✓

More information

Certificates


ENEC
CB
EL
BIS

Compatible products

Compatible products

LL1x2130-SR, LL-SR-NFC

Order codes

Order codeDescription
5556001LL1x80-DA-350-700 10/2000.
