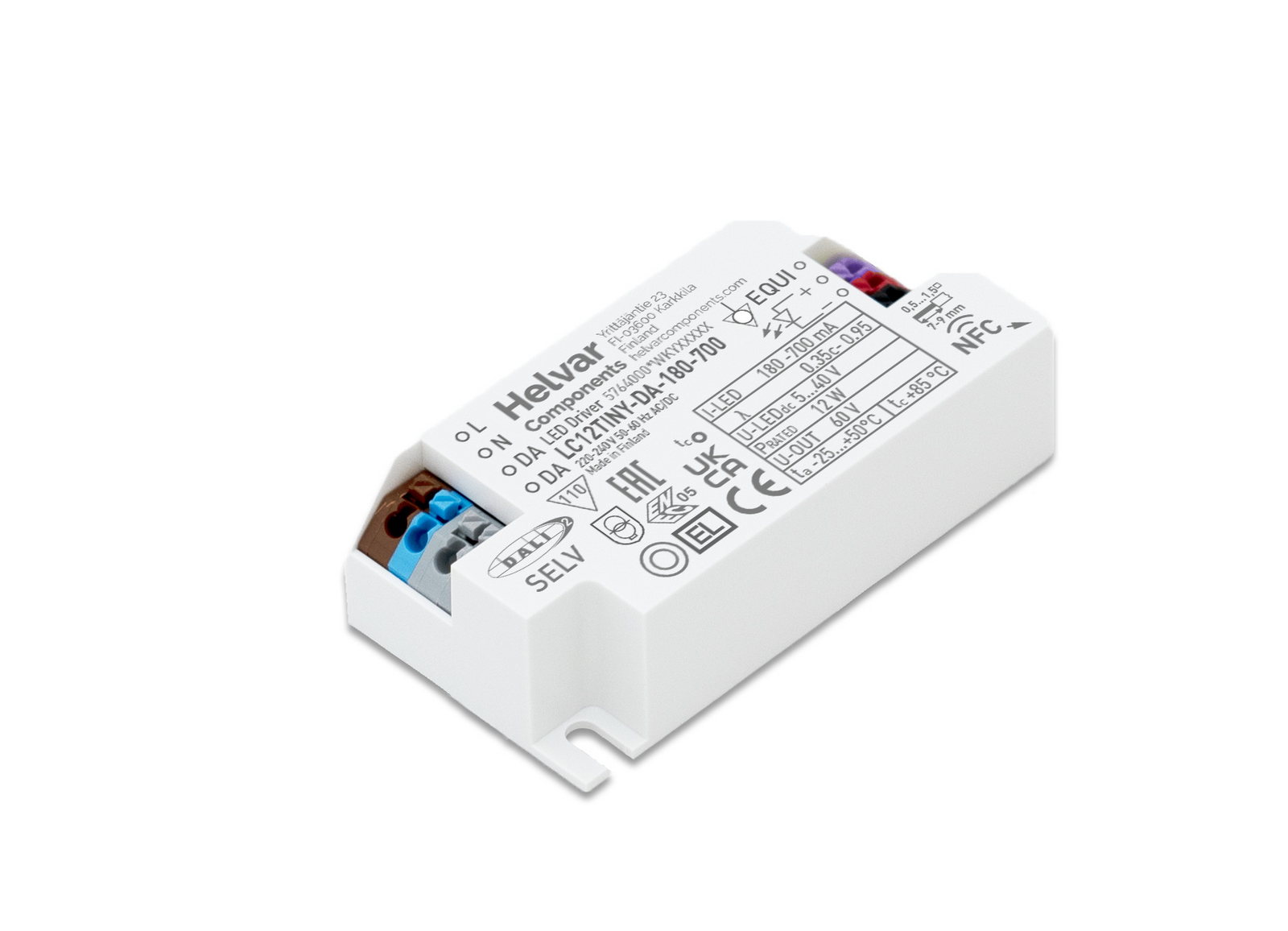

LC12TINY-DA-180-700 - Image 2

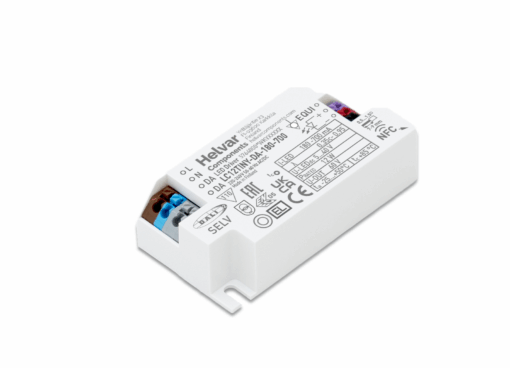

LC12TINY-DA-180-700

12 W SELV Dimmable DALI-2 tiny-sized LED driver for built-in use

  • 180 mA – 700 mA adjustable current output
  • Product number: 5764000
  • Dimensions: 80 x 41 x 22 mm
  • LED Driver family: TINY
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

12

Power factor at full load

0.95

Efficiency up to (%)

88

MinMax
Iout180700
Uout5 - 405 - 17

Input & Operating Conditions

Voltage range (VAC)

198 VAC – 264 VAC

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

85

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Dimming range

1% - 100%

Control

DALI-2

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

CLO✓
NFC✓

More information

Certificates


CB
EL
ENEC

Order codes

Order codeDescription
5764000LC12TINY-DA-180-700 80/5600
