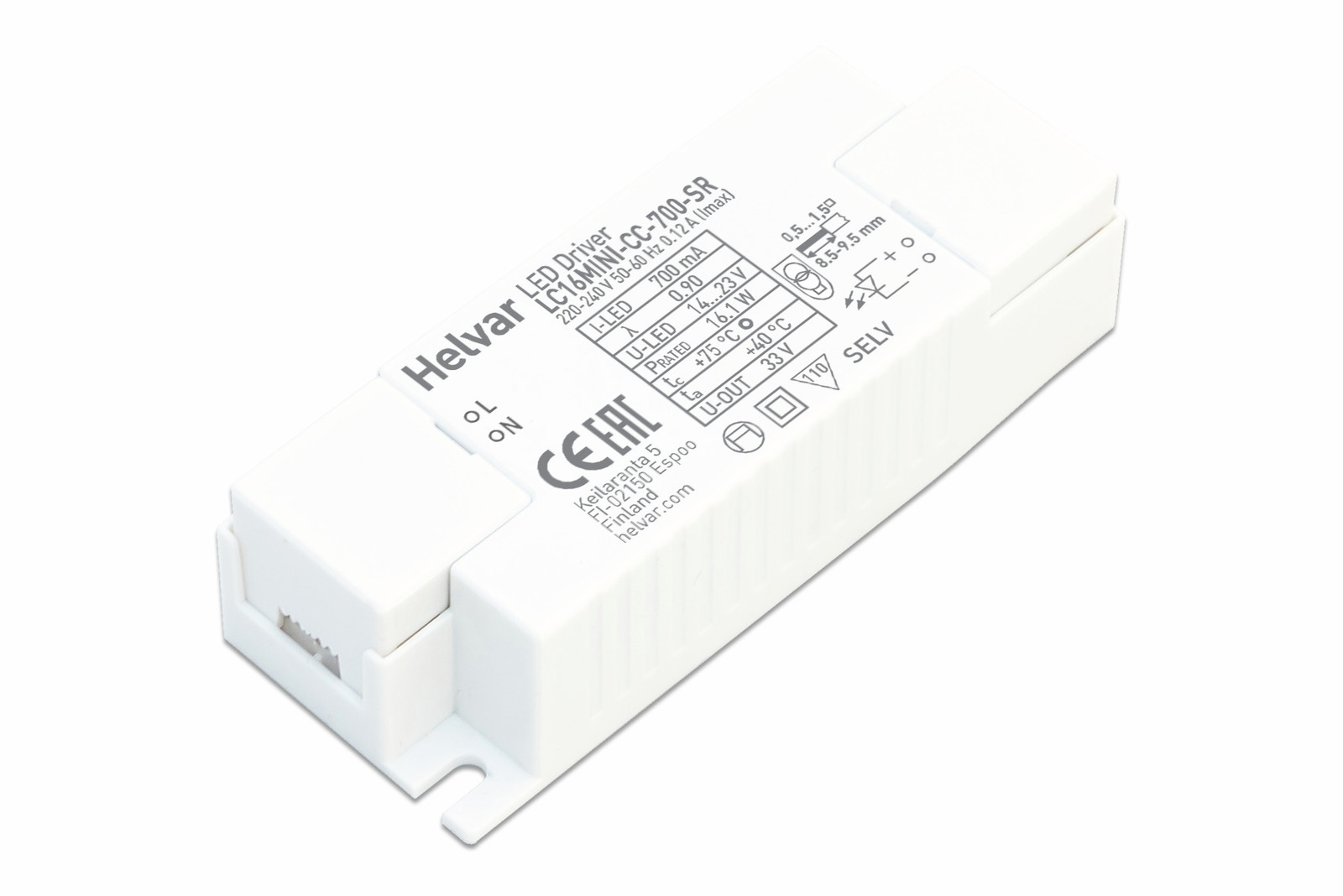

LC16MINI-CC-700-SR

16 W constant current LED driver

  • 700 mA fixed current output
  • Product number: 5913005
  • Dimensions: 100,0 x 25,0 x 38,0 mm
  • LED Driver family: MINI Basic
  • Main features: PanelReady
Datasheet

Specifications

Output

Output

Fixed current

Load protection

SELV60

Max output power (W)

16

Uout max, abnormal

56

Efficiency up to (%)

85

Power factor at full load

0.9

MinMax
Iout700
Uout14–23

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +40 °C

IP Rating

IP20

Lifetime up to (h)

50000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
Integrated strain relief✓

More information

Certificates

BIS
