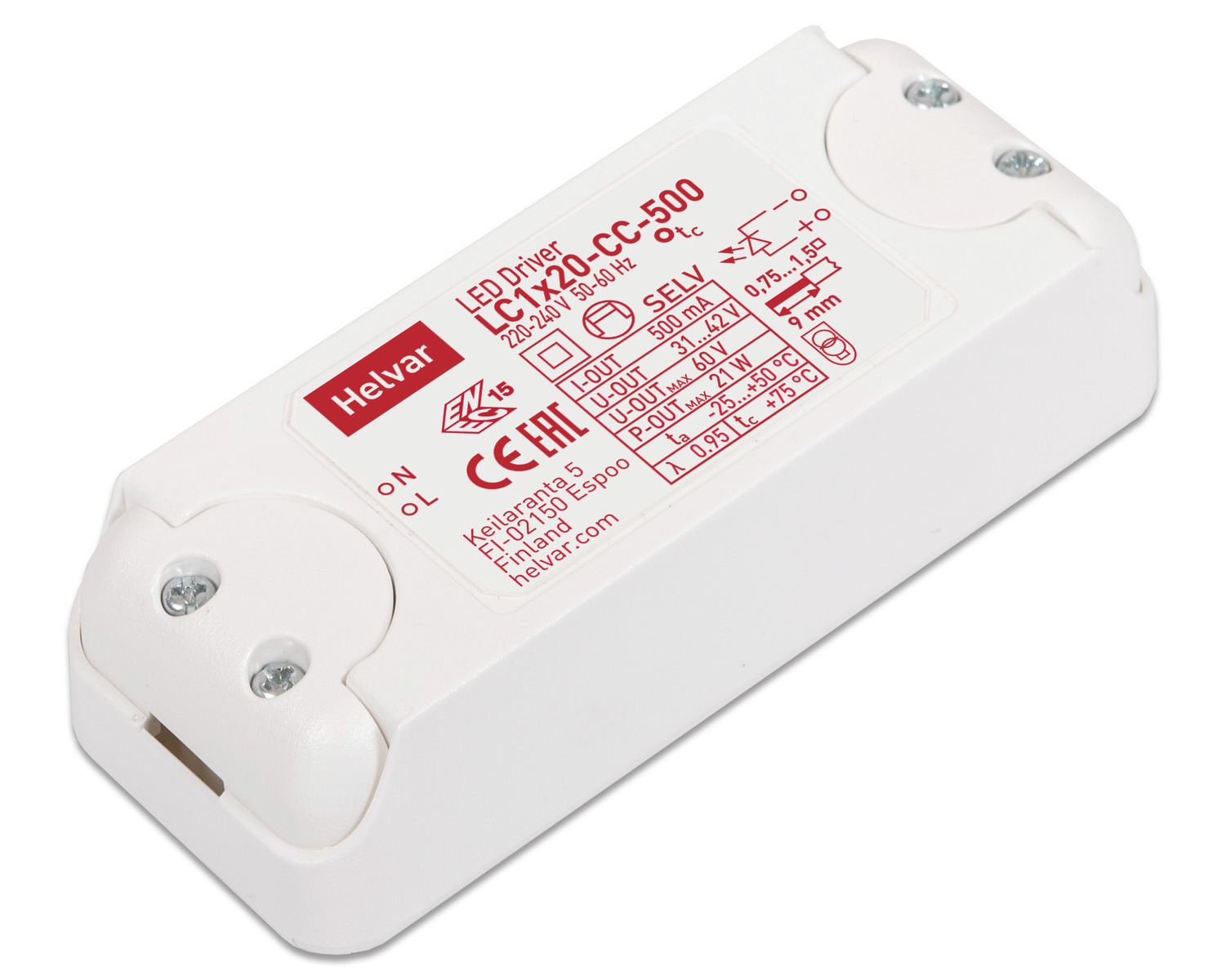

LC1x20-CC-500 (Discontinued)
LC1x20-CC-500 (Discontinued) - Image 2
LC1x20-CC-500 (Discontinued) - Image 3

LC1x20-CC-500 (Discontinued)

20 W constant current LED driver

  • 500 mA fixed current output
  • Dimensions: 115,0 x 29,0 x 45,0 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Fixed current

Load protection

SELV60

Max output power (W)

21

Efficiency up to (%)

89

Power factor at full load

0.95

MinMax
Iout500
Uout31-42

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

No DC input

Max temperature at tc point (°C)

75

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

50000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
Integrated strain relief✓
