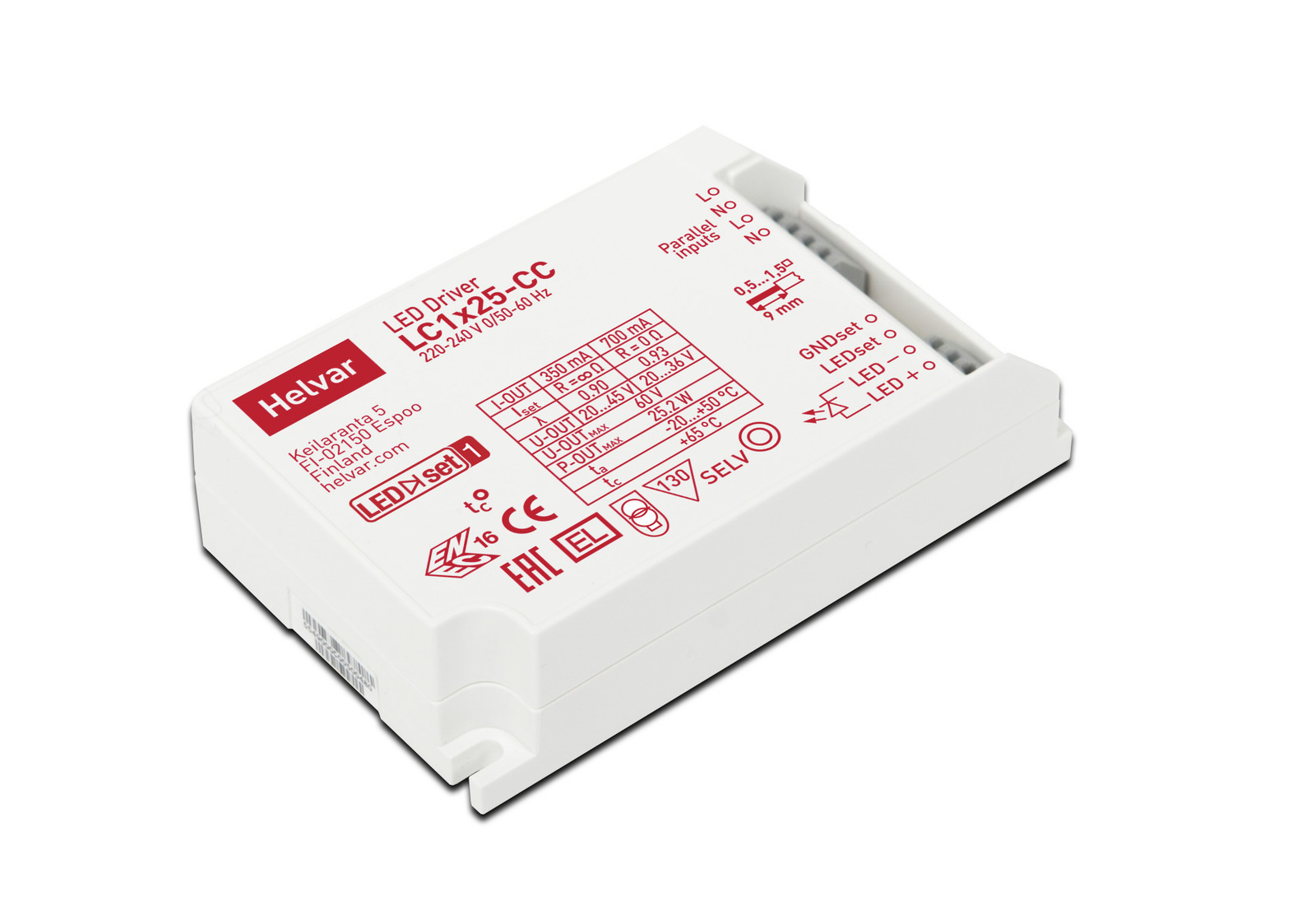

LC1x25-CC
25 W constant current LED driver
- 350 mA – 700 mA adjustable current output
- Product number: 5549001
- Dimensions: 106,0 x 28,0 x 67,0 mm
- LED Driver family: Other drivers
- Main features: PanelReady
25 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 25.2 |
| Total Harmonic Distortion @ Full power (THD %) | 17 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.93 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 20–45 | 20–36 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 65 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Current setting resistors | ✓ |
| Optional click-on strain relief for installation | ✓ |
