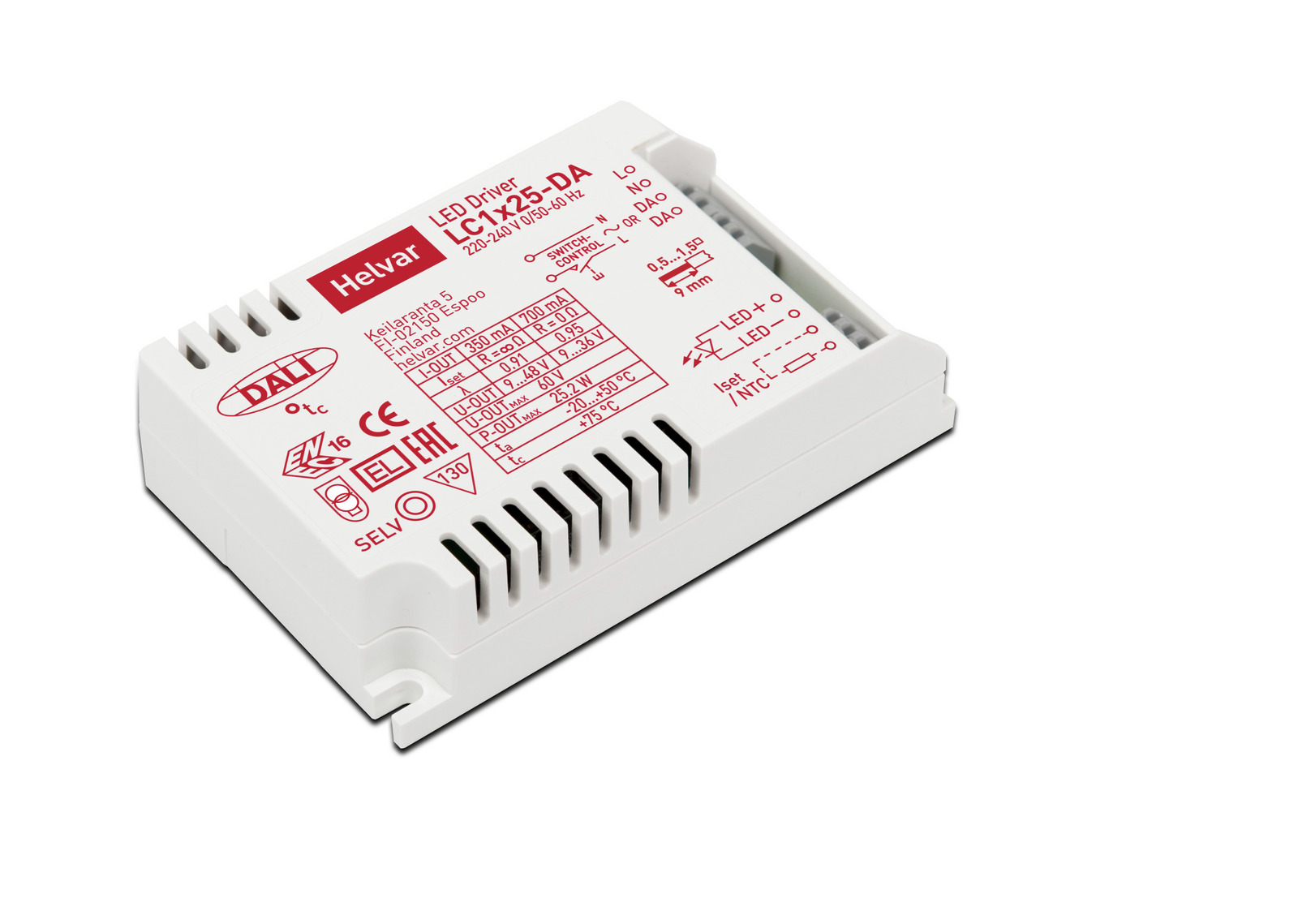

LC1x25-DA (Discontinued)
25 W DALI dimmable LED driver
- 350 mA – 700 mA adjustable current output
- Product number: 5566001
- Dimensions: 106 x 67 x 28 mm
- LED Driver family: Other drivers
- Main features: Hybrid, DALI, PanelReady
25 W DALI dimmable LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 25.2 |
| Efficiency up to (%) | 86 |
| Power factor at full load | 0.95 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 9–48 | 9–36 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Dimming method | Hybrid dimming |
|---|---|
| Control |
|
| Dimming range | 1% – 100% |
| CLO | ✓ |
|---|---|
| Helvar Driver Configurator support | ✓ |
| Intelligent features | Current setting by software, Constant Light Output (CLO), Data memory bank |
| NTC | ✓ |
| Optional click-on strain relief for installation | ✓ |
