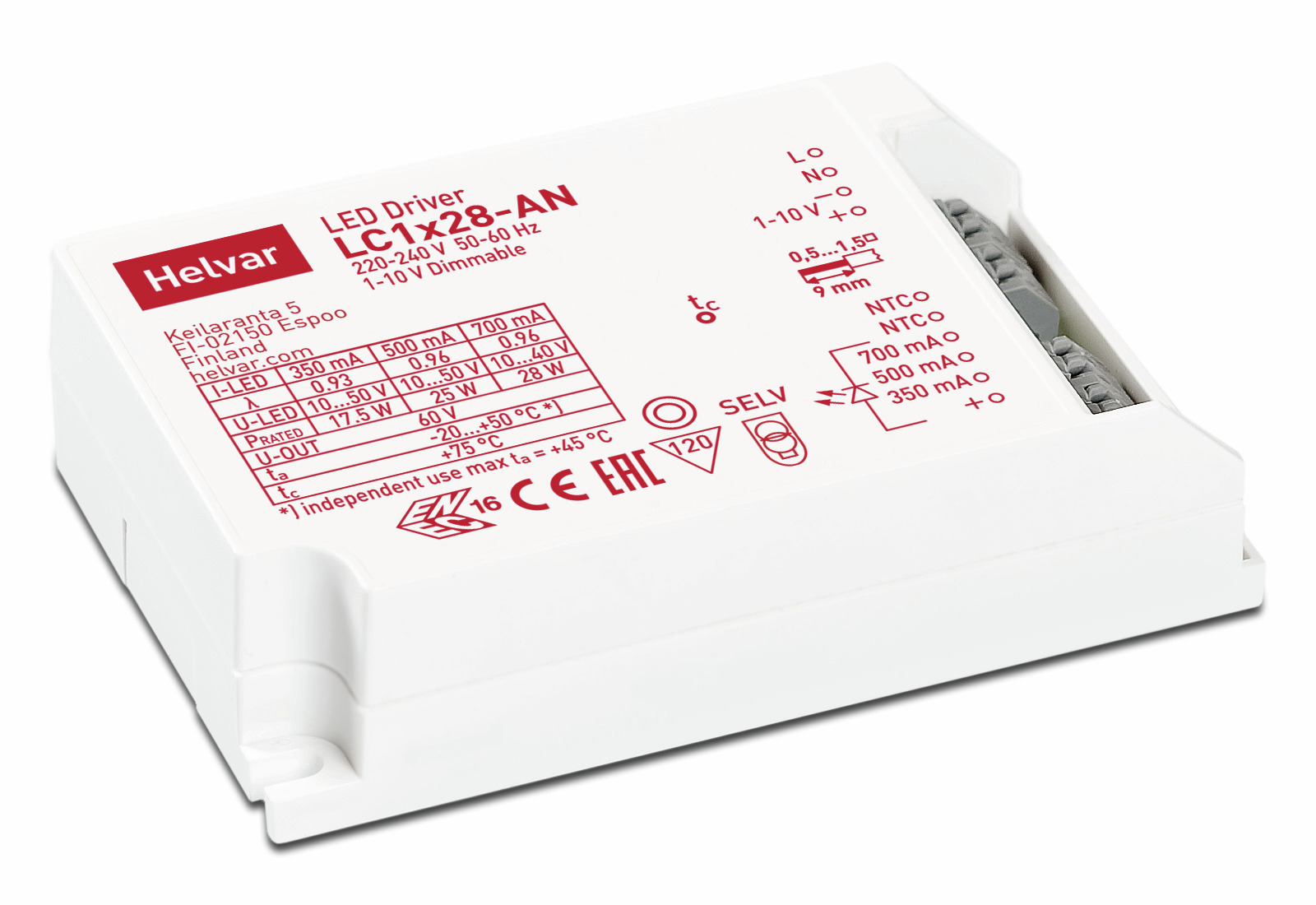

LC1x28-AN (Discontinued)

28 W 1–10 V dimmable LED driver

  • 350/500/700 mA multiple currents output
  • Product number: 5714001
  • Dimensions: 106 x 67 x 28 mm
  • LED Driver family: Other drivers
  • Replacing product: LC1x30-E-AN
  • Main features: PanelReady
Datasheet

Specifications

Output

Output

Multiple currents

Load protection

SELV60

Max output power (W)

28

Efficiency up to (%)

86

Power factor at full load

0.96

MinMax
Iout350700
Uout10–5010–40

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

1-10 V

Dimming range

1% – 100%

Features

NTC✓
Optional click-on strain relief for installation✓

Compatible products

Compatible products

LC-SRA, LC-SRA-LOOP, LC1x30-SR

Order codes

Order codeDescription
5714000*LC1x28-AN 60/1680
