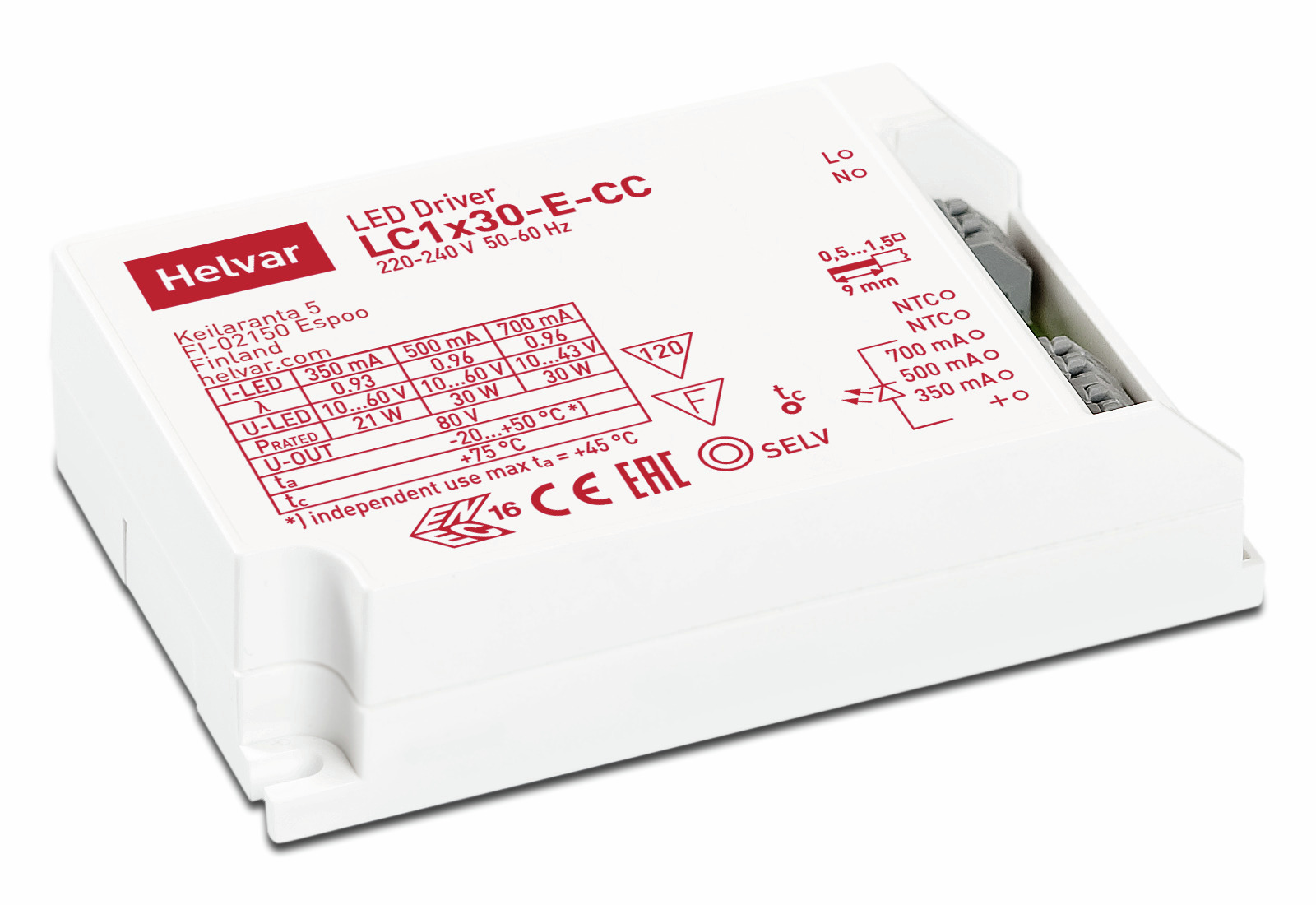

LC1x30-E-CC
30 W constant current LED driver
- 350 mA / 500 mA / 700 mA multiple currents output
- Product number: 5503001
- Dimensions: 106,0 x 28,0 x 67,0 mm
- LED Driver family: Other drivers
- Main features: PanelReady
30 W constant current LED driver
| Output | Multiple currents |
|---|---|
| Load protection | SELV120 |
| Max output power (W) | 30 |
| Total Harmonic Distortion @ Full power (THD %) | 15 |
| Efficiency up to (%) | 88 |
| Power factor at full load | 0.96 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 10–60 | 10–43 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| NTC | ✓ |
| Optional click-on strain relief for installation | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|

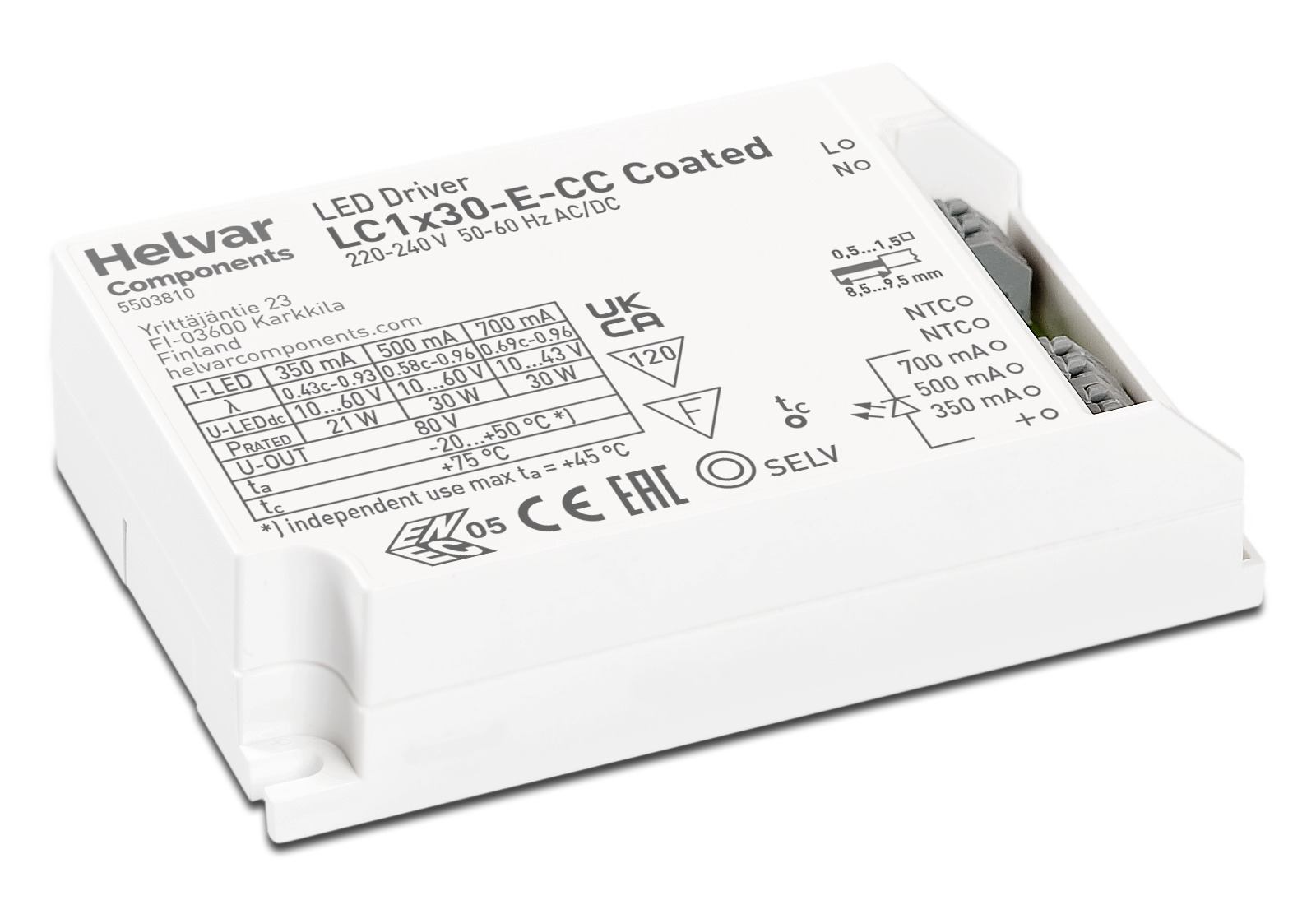

| 5503816 | LC1x30-E-CC Coated 60/1680 |
