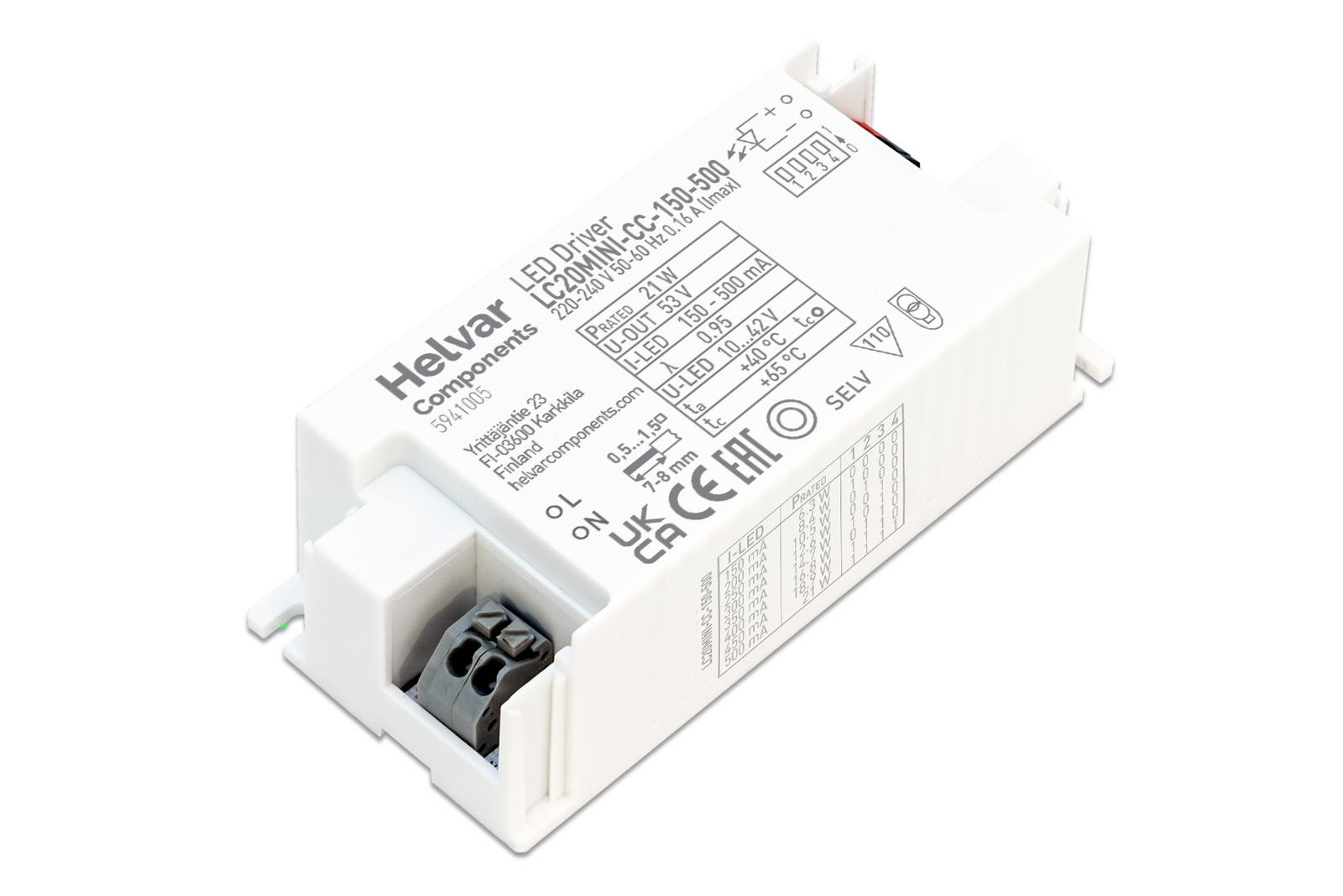

LC20MINI-CC-150-500
20 W constant current LED driver
- 150 mA – 500 mA adjustable current output
- Product number: 5941005
- Dimensions: 97,0 x 30,0 x 43,0 mm
- LED Driver family: MINI Basic
- Main features: PanelReady
20 W constant current LED driver

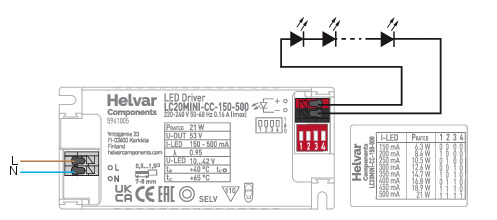

| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 21 |
| Uout max, abnormal | 52 |
| Efficiency up to (%) | 85 |
| Power factor at full load | 0.95 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 500 | |
| Uout | 10–42 | 10–42 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 65 |
| Ambient temperature range | –20 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Certificates | BIS |
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5941005 | LC20MINI-CC-150-500 100/2500 |
