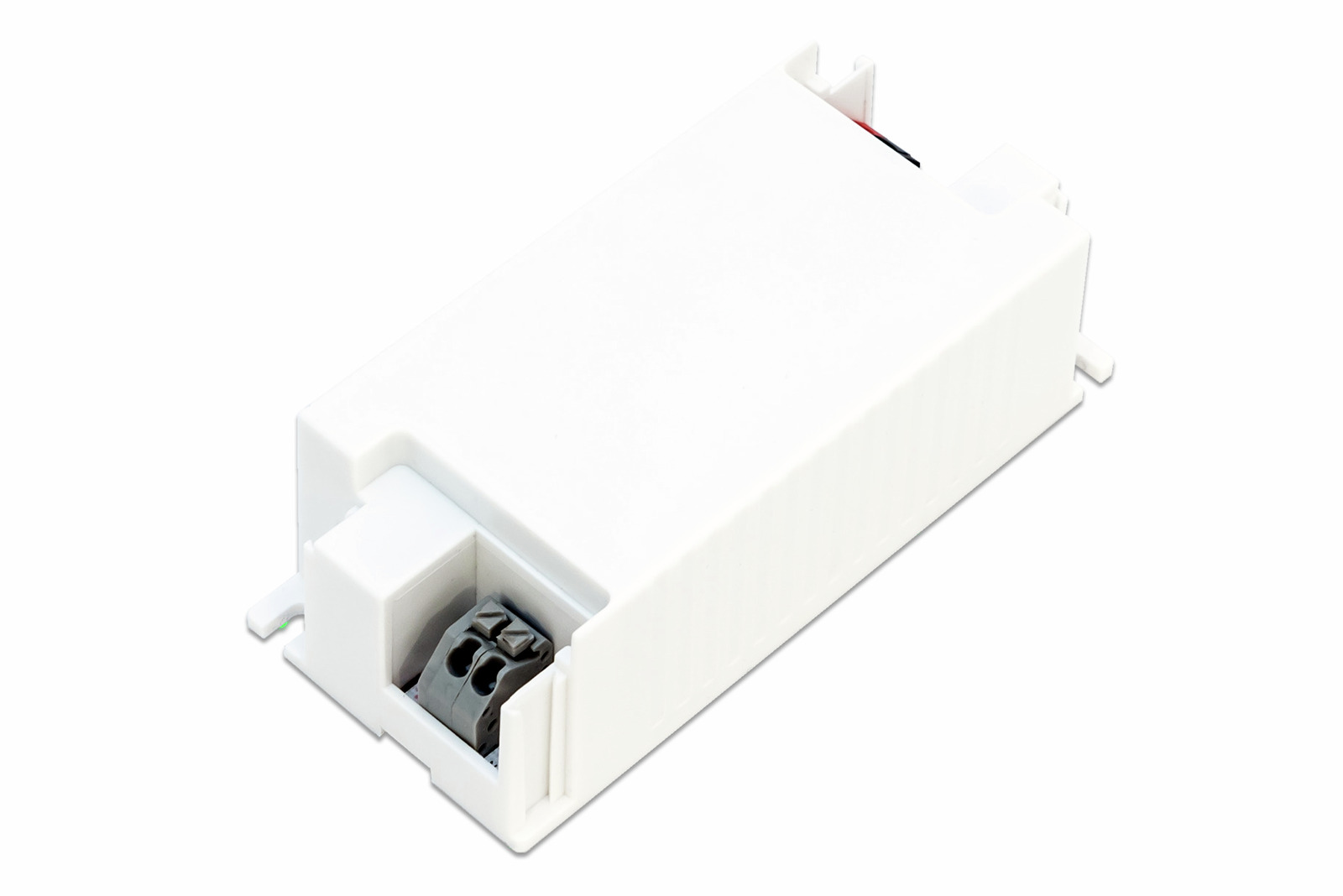

LC20MINI-CC-250-500 (Discontinued)

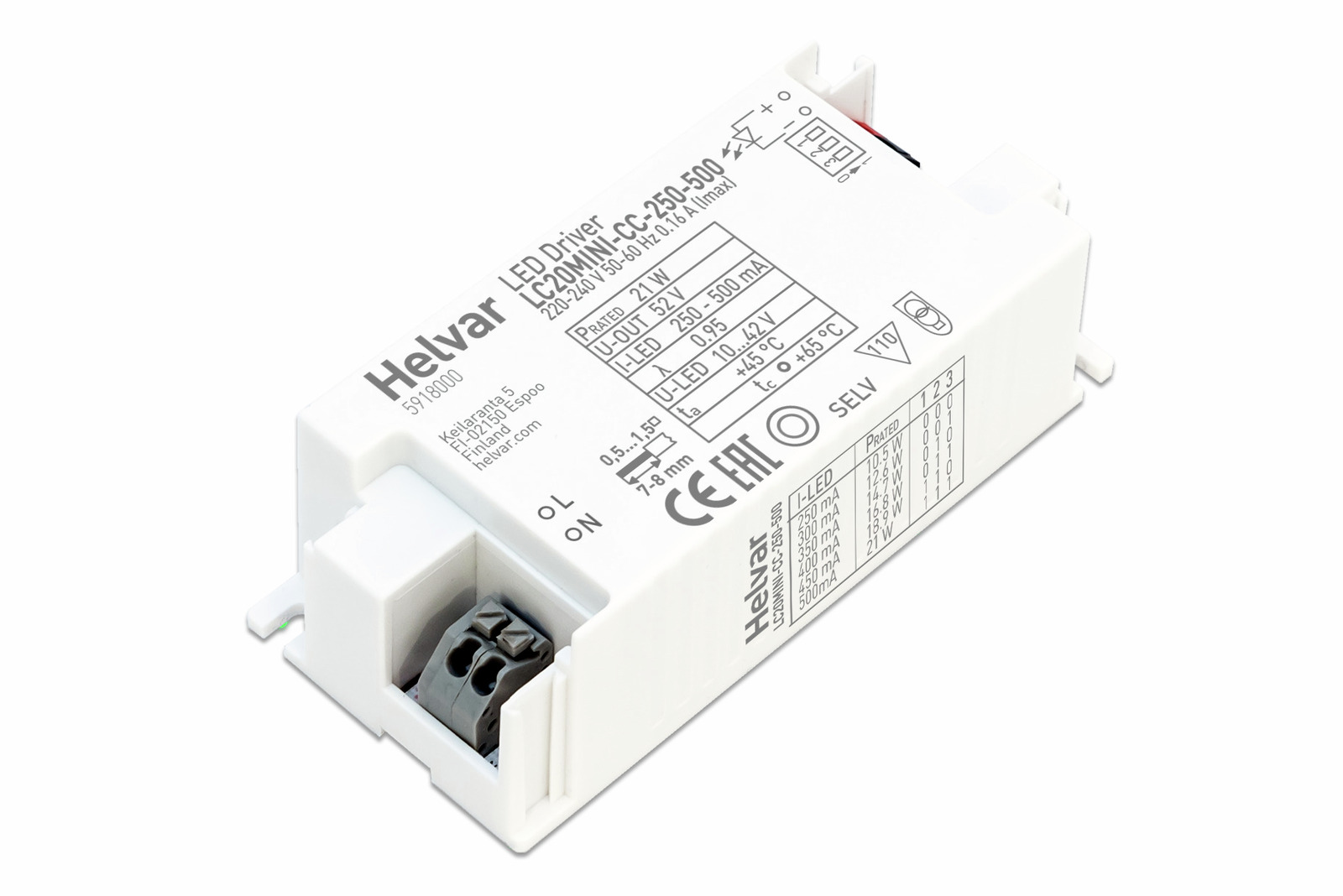

LC20MINI-CC-250-500 (Discontinued) - Image 2
LC20MINI-CC-250-500 (Discontinued) - Image 3
LC20MINI-CC-250-500 (Discontinued) - Image 4

LC20MINI-CC-250-500 (Discontinued)

20 W constant current LED driver

  • 250 mA – 500 mA adjustable current output
  • Product number: 5918005
  • Dimensions: 97,0 x 30,0 x 43,0 mm
  • LED Driver family: MINI
  • Main features: PanelReady
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

21

Uout max, abnormal

52

Efficiency up to (%)

85

Power factor at full load

0.95

MinMax
Iout250500
Uout10–4210–42

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

65

Ambient temperature range

–20 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

50000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
Optional click-on strain relief for installation✓

More information

Certificates

BIS

Compatible products

Compatible products

LC-SR-MINI, LC-SR-MINI-B, LC-SR-MINI-LOOP
