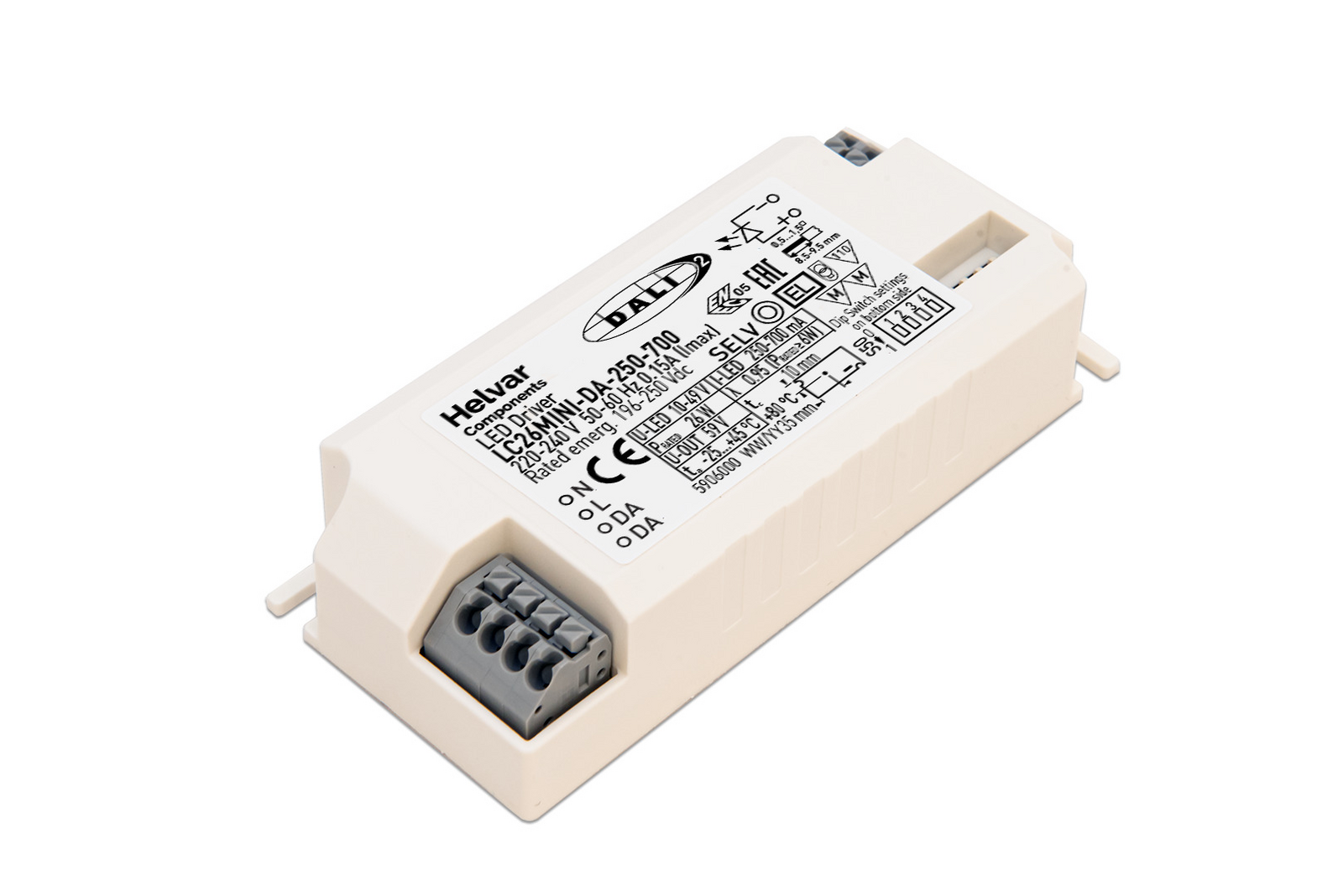

LC26MINI-DA-250-700

26 W DALI-2 dimmable 22 mm slim LED driver for built-in use

  • 250 mA – 700 mA adjustable current output
  • Product number: 5906000
  • Dimensions: 97 x 42.5 x 21,5 mm
  • LED Driver family: MINI Slim
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

26

Efficiency up to (%)

88

Power factor at full load

0.95

MinMax
Iout250700
Uout10–37

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

198-276

Max temperature at tc point (°C)

80

Ambient temperature range

–25 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Dimming method

Amplitude dimming

Control

DALI-2

Dimming range

1% – 100%

Features

Complies with IEEE 1789-2015✓
Optional click-on strain relief for installation✓

Order codes

Order codeDescription
5906000LC26MINI-DA-250-700 50
