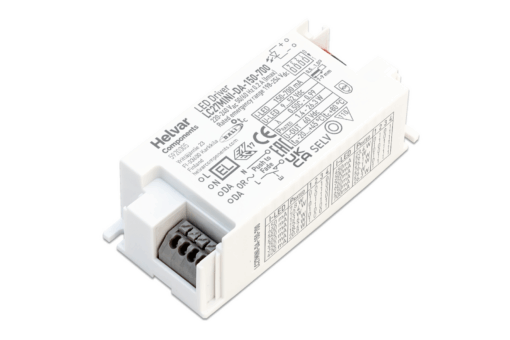

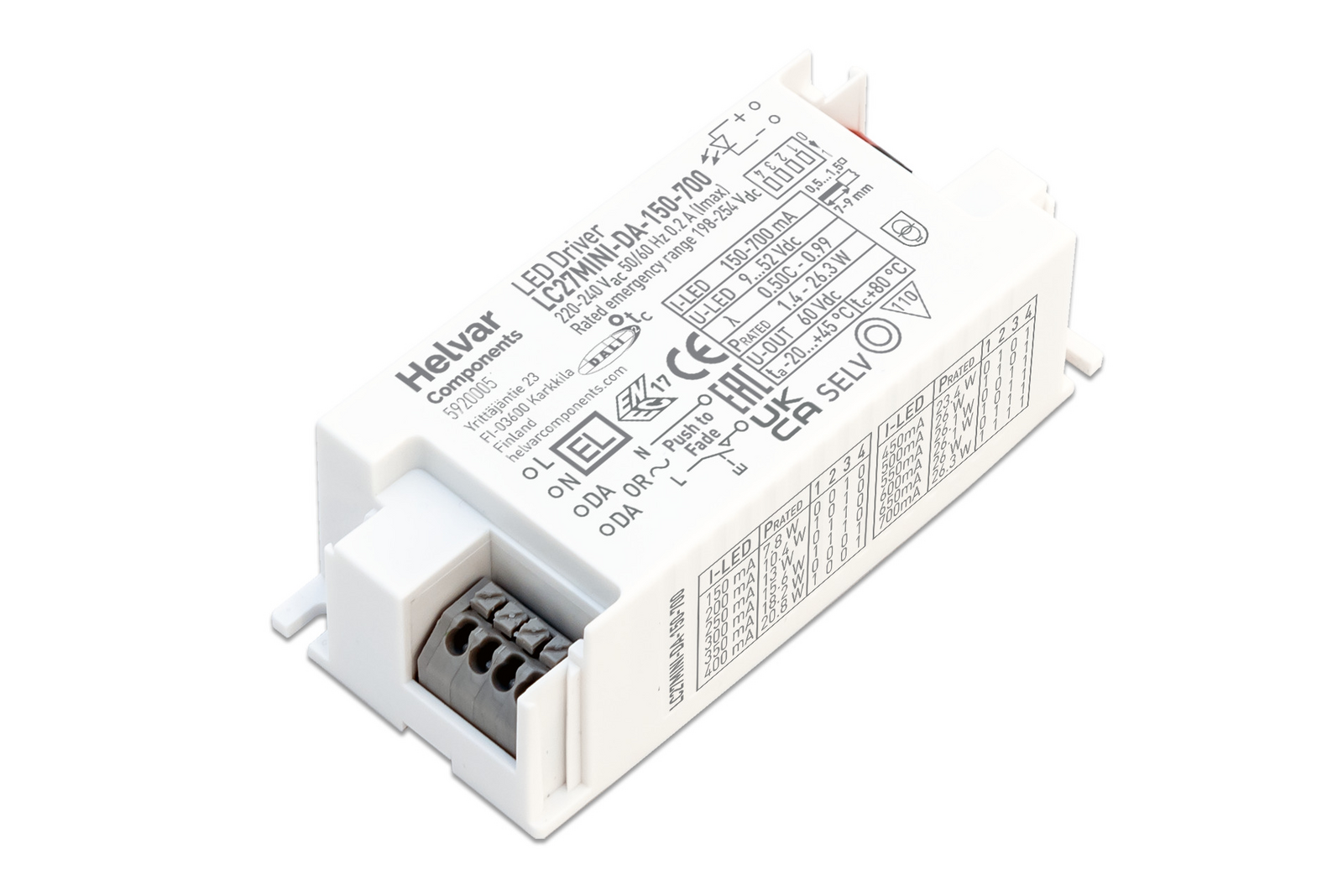

LC27MINI-DA-150-700
26 W DALI-2 dimmable LED driver
- 150 mA – 700 mA adjustable current output
- Product number: 5920005
- Dimensions: 97 x 43 x 30 mm
- LED Driver family: MINI Basic
- Main features: DALI, Amplitude, PanelReady
26 W DALI-2 dimmable LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 26.3 |
| Power factor at full load | 0.9 |
| Efficiency up to (%) | 88 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 700 | |
| Uout | 9–37.5 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –20 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Dimming method | Amplitude dimming |
|---|---|
| Control |
|
| Dimming range | 1% - 100% |
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5920005 | LC27MINI-DA-150-700 100/2500 |
