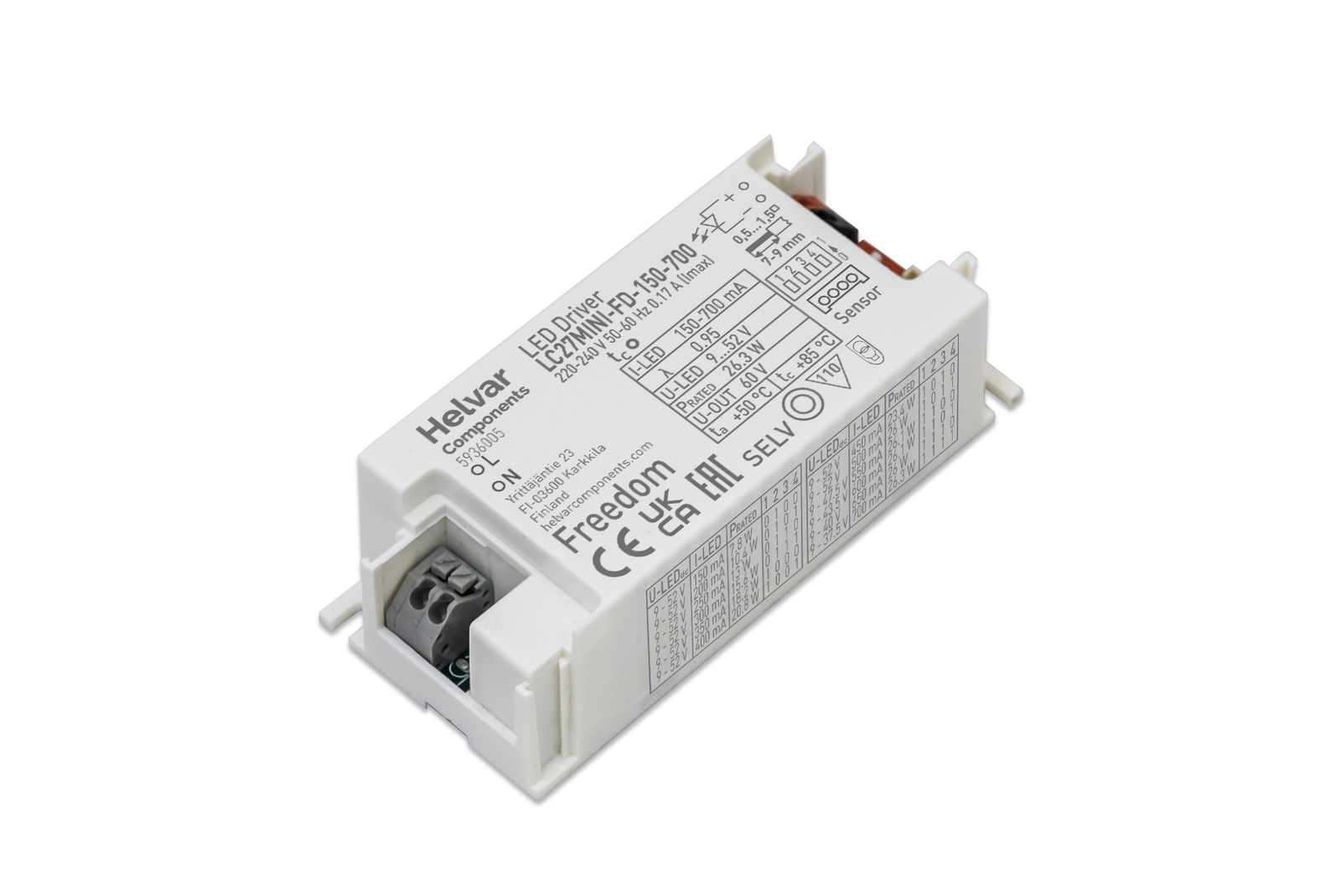

LC27MINI-FD-150-700
26 W Freedom controllable LED driver
- 150 mA – 700 mA adjustable current output
- Product number: 5936005
- Dimensions: 97 x 43 x 30 mm
- LED Driver family: Freedom Wireless
- Main features: Freedom, Amplitude, PanelReady
26 W Freedom controllable LED driver

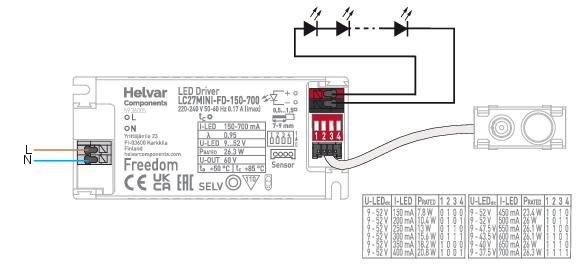

| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 26.3 |
| Efficiency up to (%) | 87 |
| Power factor at full load | 0.95 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 700 | |
| Uout | 9–37.5 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | Freedom |
|---|---|
| Dimming range | 1% - 100% |
| Dimming method | Amplitude dimming |
| Intelligent features | Smart Data |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| Smart data | Luminaire data, Energy monitoring, Maintenance & diagnostics |
| Certificates | BIS |
|---|
| Compatible products | |
|---|---|
| Compatible Wireless Systems | ActiveAhead, Casambi |
| Order code | Description |
|---|---|
| 5936505 | LC27MINI-FD-150-700 ActiveAhead 100/2500 |
| 5936605 | LC27MINI-FD-150-700 Pulse Systems |
| 5936105 | LC27MINI-FD-150-700 Casambi 100/2500 |
