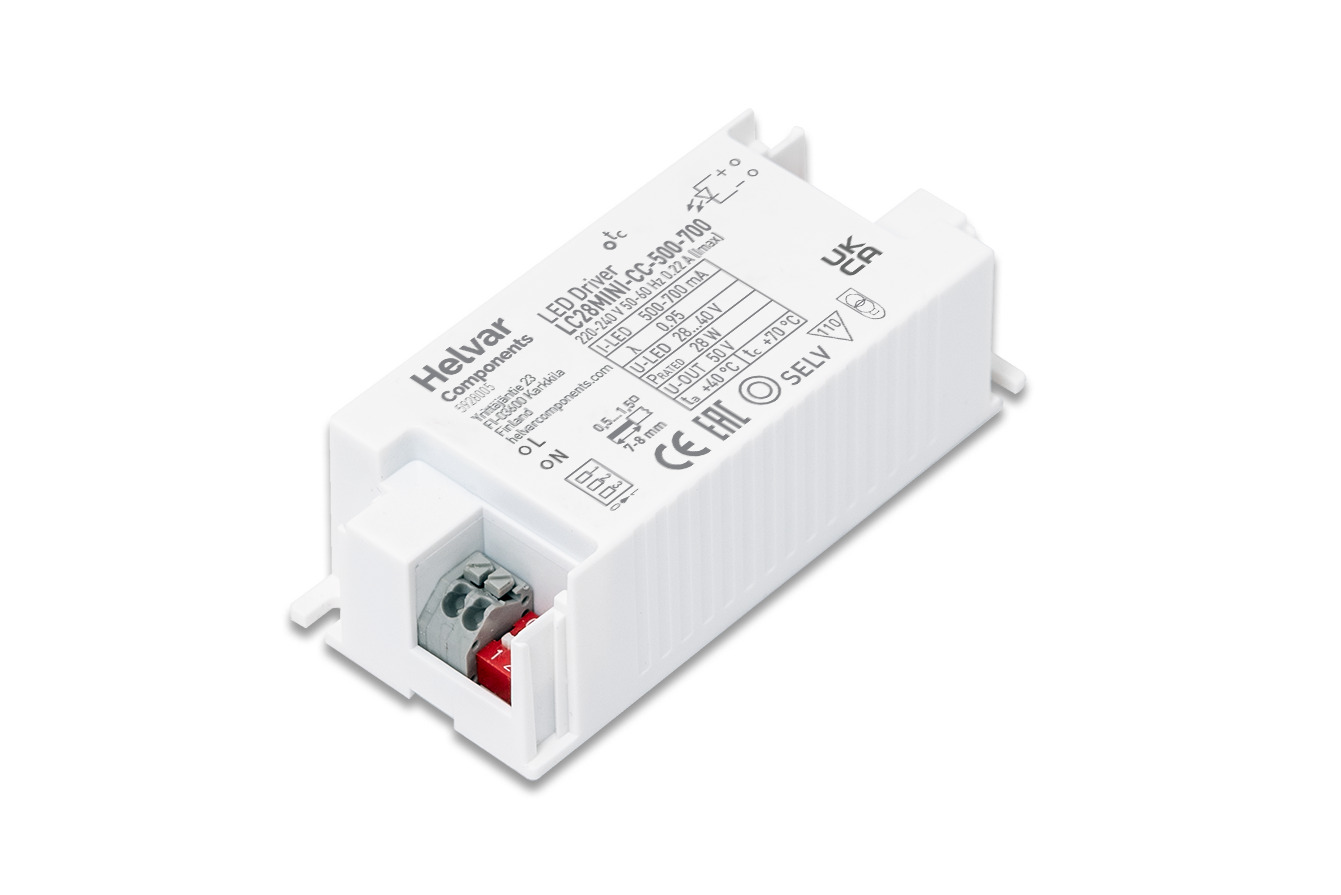

LC28MINI-CC-500-700

28 W constant current LED driver for built-in use. Also separate strain reliefs available!

500 mA – 700 mA adjustable current output
Product number: 5928005
Dimensions: 97,0 x 22,0 x 43,0 mm
LED Driver family: MINI
Main features: PanelReady

Specifications

Output

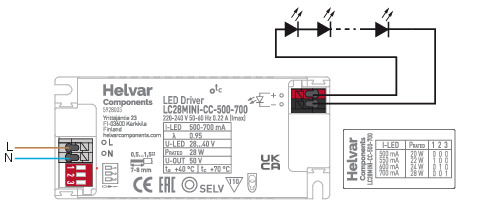

Output	DIP switch selectable current
Load protection	SELV60
Max output power (W)	28
Efficiency up to (%)	88
Power factor at full load	0.95
Uout max, abnormal	50

	Min	Max
I_out	500	700
U_out	28–40	28–40

Input & Operating Conditions

Voltage range (VAC)	198–264
DC input characteristics	Suitable for DC use
DC range (V)	176-280
Max temperature at tc point (°C)	70
Ambient temperature range	–20 °C .. +40 °C
IP Rating	IP20
Lifetime up to (h)	50000
Luminaire class I	✓
Luminaire class II	✓
Luminaire class III	✓

Control

Control	ON/OFF

Features

Optional click-on strain relief for installation	✓
Complies with IEEE 1789-2015	✓

Compatible products

Compatible products	LC-SR-MINI, LC-SR-MINI-B, LC-SR-MINI-LOOP

Documents and tools

Datasheet
2D/3D Files
EC Declaration of conformity

LED solutions catalogue
Product code markings
LEDesign
LED tools, help, troubleshooting

Order codes

Order code	Description
5928005	LC28MINI-CC-500-700 100/2500
