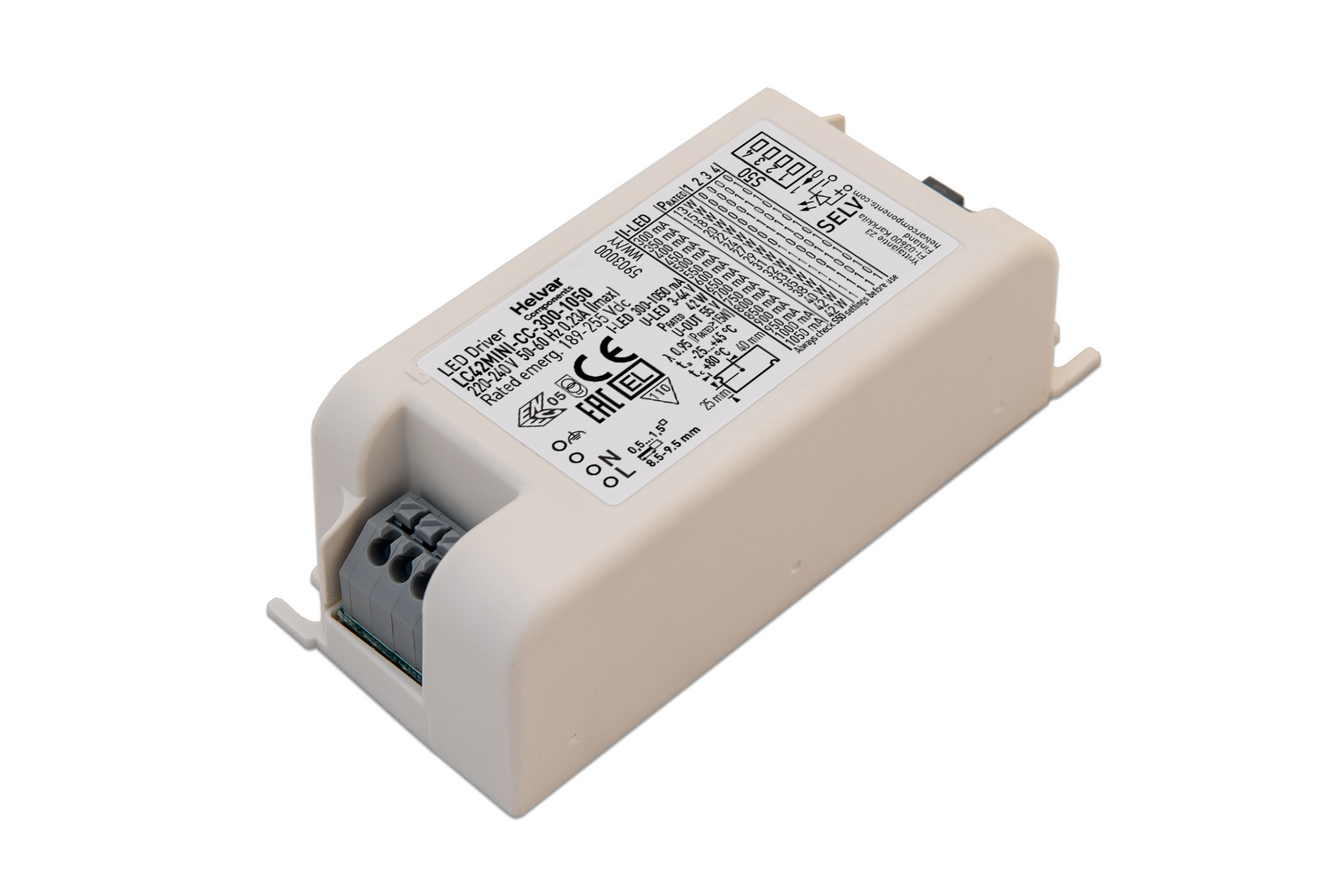

LC42MINI-CC-300-1050

42 W constant current LED driver for built-in use

  • 300 mA – 1050 mA adjustable current output
  • Product number: 5903000
  • Dimensions: 97,0 x 30,0 x 42,5 mm
  • LED Driver family: MINI
  • Main features: PanelReady
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

42

Efficiency up to (%)

90

Power factor at full load

0.95

Uout max, abnormal

55

MinMax
Iout3001050
Uout3–443–40

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

170-280

Max temperature at tc point (°C)

80

Ambient temperature range

–25 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
Optional click-on strain relief for installation✓

Order codes

Order codeDescription
5903000LC42MINI-CC-300-1050 50
