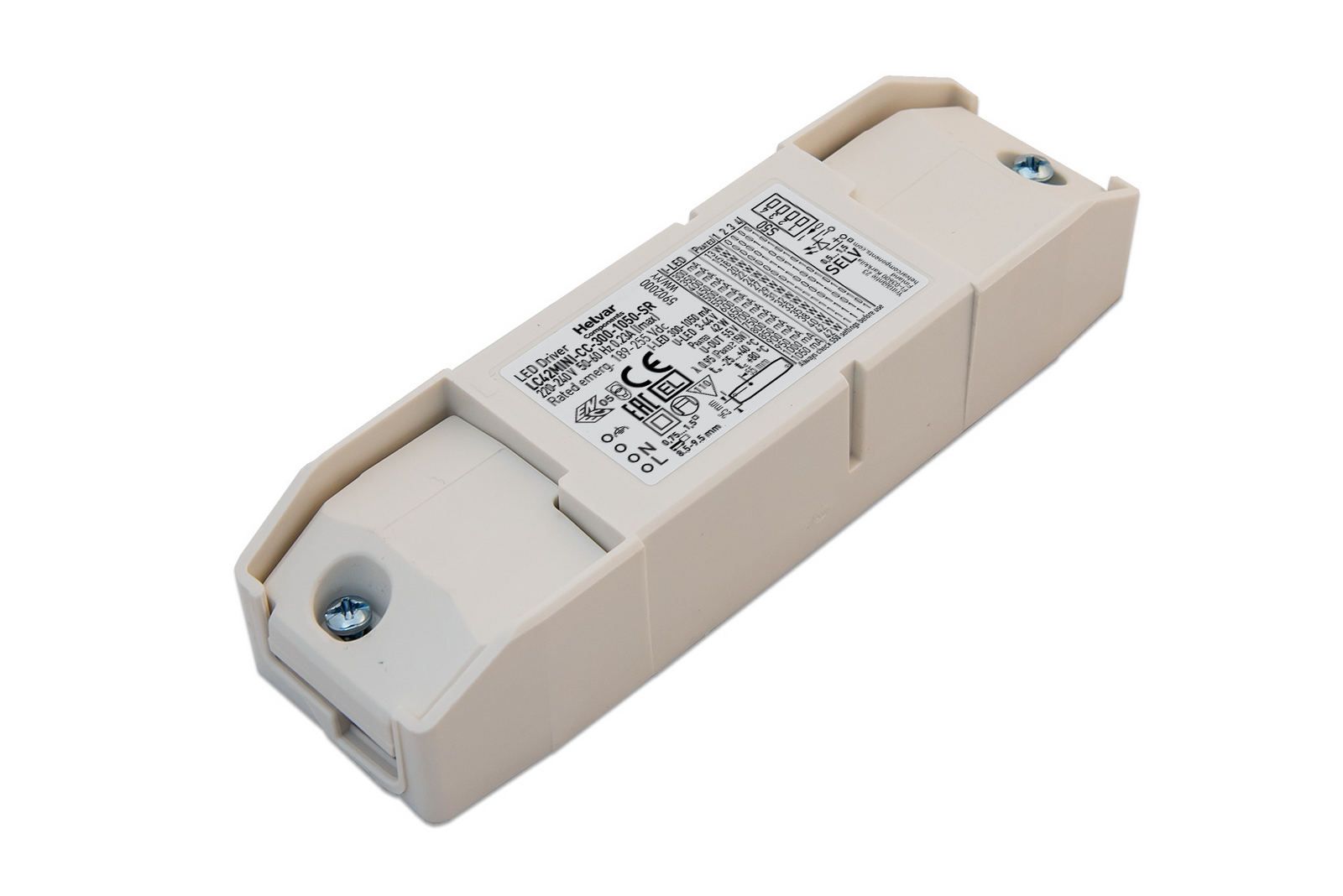

LC42MINI-CC-300-1050-SR
42 W constant current LED driver
- 300 mA – 1050 mA adjustable current output
- Product number: 5902000
- Dimensions: 146,5 x 30,0 x 43,5 mm
- LED Driver family: MINI
- Main features: PanelReady
42 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 42 |
| Efficiency up to (%) | 90 |
| Power factor at full load | 0.95 |
| Uout max, abnormal | 55 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | 1050 | |
| Uout | 3–44 | 3–40 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 170-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +40 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Independent usage | ✓ |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Integrated strain relief | ✓ |
