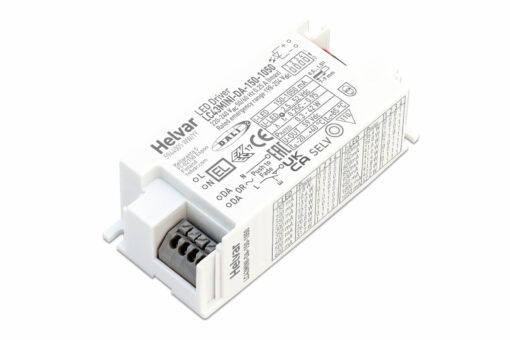

LC43MINI-DA-150-1050
43 W DALI-2 dimmable LED driver
- 150 mA – 1050 mA adjustable current output
- Product number: 5944005
- Dimensions: 97 x 43 x 30 mm
- LED Driver family: MINI Basic
- Main features: DALI, Amplitude, PanelReady
43 W DALI-2 dimmable LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 42 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 87 |
| Total Harmonic Distortion @ Full power (THD %) | 9 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 1050 | |
| Uout | 2.5–52 | 2.5–40 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –20 °C .. +40 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Dimming range | 1% - 100% |
|---|---|
| Control |
|
| Dimming method | Amplitude dimming |
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5944025 | LC43MINI-DA-150-1050-LOOP |
| 5944005 | LC43MINI-DA-150-1050 100/3000 |
