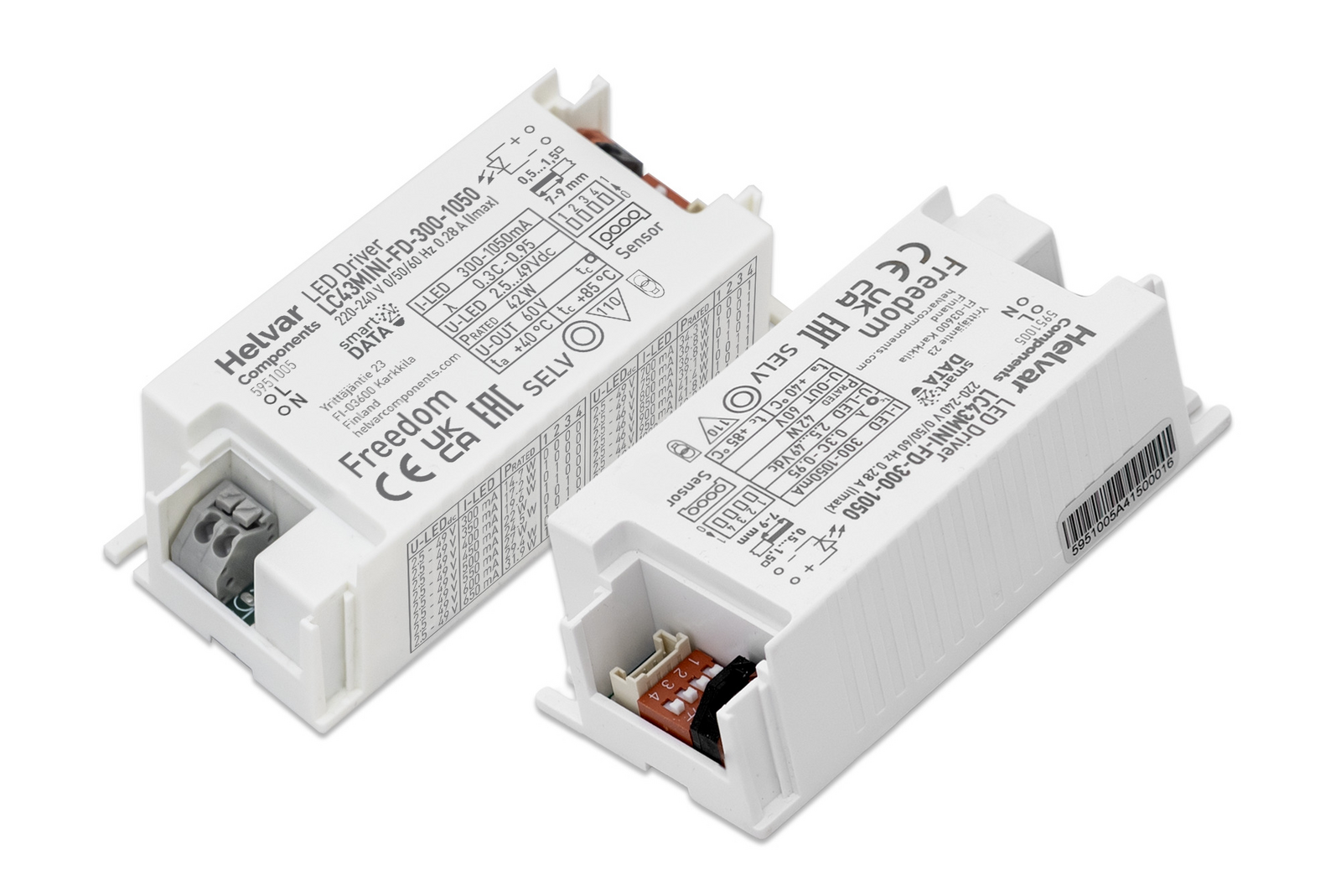

LC43MINI-FD-300-1050

42 W Freedom controllable LED driver with integrated antenna and radiocommunication unit, for built-in use. Separate strain reliefs available!

  • 300 mA – 1050 mA adjustable current output
  • Product number: 5951105

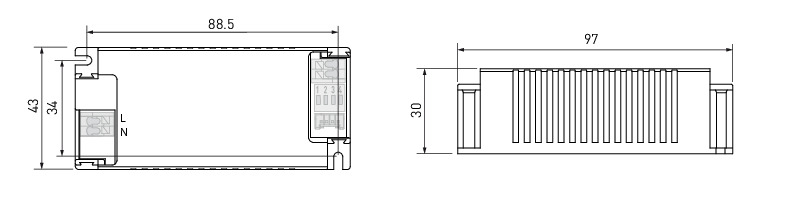

  • Dimensions: 97 x 43 x 30 mm
  • LED Driver family: Freedom Wireless
  • Main features: Freedom, Smart Data, PanelReady
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

42

Power factor at full load

0.95

Efficiency up to (%)

89

Total Harmonic Distortion @ Full power (THD %)

10

Uout max, abnormal

60

MinMax
Iout3001050
Uout2.5–492.5–40

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

85

Ambient temperature range

–20 °C .. +40 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class II✓
Luminaire class I✓
Luminaire class III✓

Control

Dimming method

Amplitude

Control

Freedom

Dimming range

1 % -100 %

Features

Integrated antenna and radiocommunication unit for standalone wireless luminaire control.
Sensor output for simple external Freedom sensor connection.
D4i-aligned Smart Data features, e.g. energy reporting, diagnostics and maintenance.
Available as Casambi Ready.
Intelligent features

Smart Data

Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data, Energy monitoring, Maintenance & diagnostics

Compatible products

Compatible products

LC-SR-MINI, LC-SR-MINI-B, LC-SR-MINI-LOOP

Compatible Wireless Systems

Casambi

Order codes

Order codeDescription
5951105LC43MINI-FD-300-1050 Casambi 100/2500
