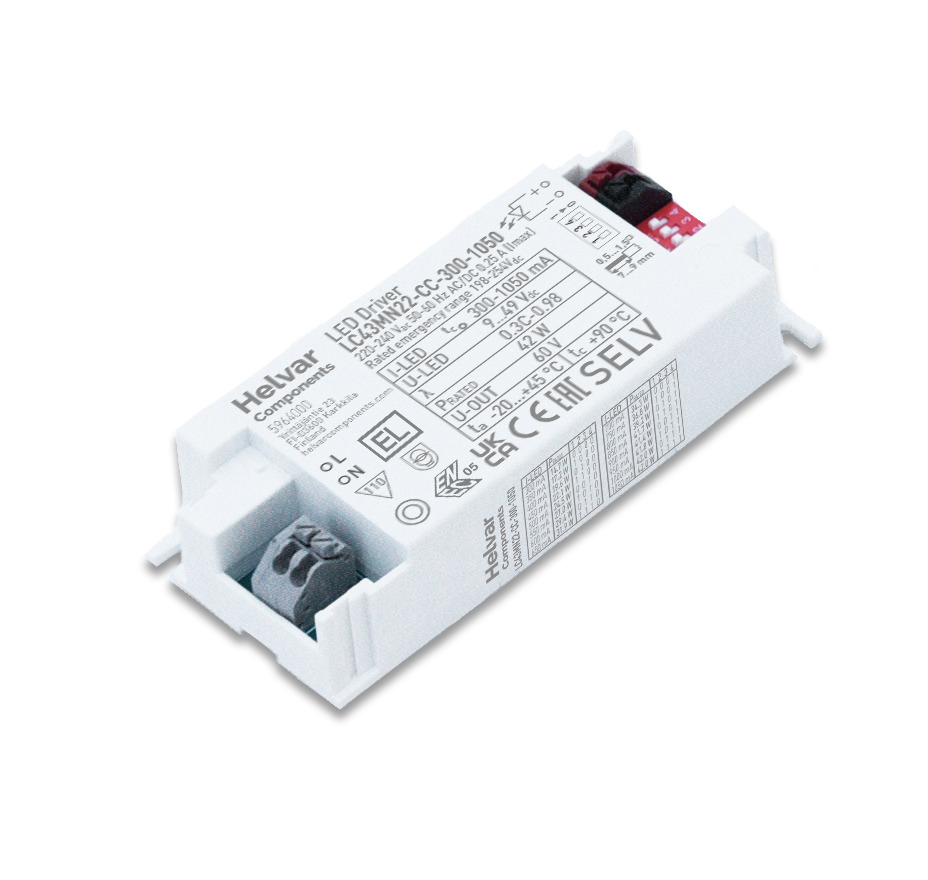

LC43MN22-CC-300-1050

42 W Constant Current 22 mm slim LED driver for built-in use. Also separate strain reliefs available!

300 mA – 1050 mA adjustable current output
Product number: 5964000
Dimensions: 98 x 43 x 22 mm
LED Driver family: MINI Slim
Main features: PanelReady

Specifications

Output

Output	DIP switch selectable current
Load protection	SELV60
Max output power (W)	42
Total Harmonic Distortion @ Full power (THD %)	7
Uout max, abnormal	60
Power factor at full load	0.98
Efficiency up to (%)	90

	Min	Max
I_out	300	1050
U_out	9 - 49	9 - 40

Input & Operating Conditions

Voltage range (VAC)	198-264
DC input characteristics	Suitable for DC use
DC range (V)	180-280
Max temperature at tc point (°C)	90
IP Rating	IP20
Ambient temperature range	–20 °C .. +45 °C
Lifetime up to (h)	100000
Luminaire class II	✓
Luminaire class I	✓
Luminaire class III	✓

Control

Control	ON/OFF

Features

Optional click-on strain relief for installation	✓
Complies with IEEE 1789-2015	✓

Compatible products

Compatible products	LC-SR-MN22, LC-SR-MN22-LOOP

Documents and tools

Datasheet
2D/3D Files
EC Declaration of conformity

Product code markings
LED solutions catalogue
LED tools, help, troubleshooting
LEDesign

Order codes

Order code	Description
5964000	LC43MN22-CC-300-1050 50/3000
