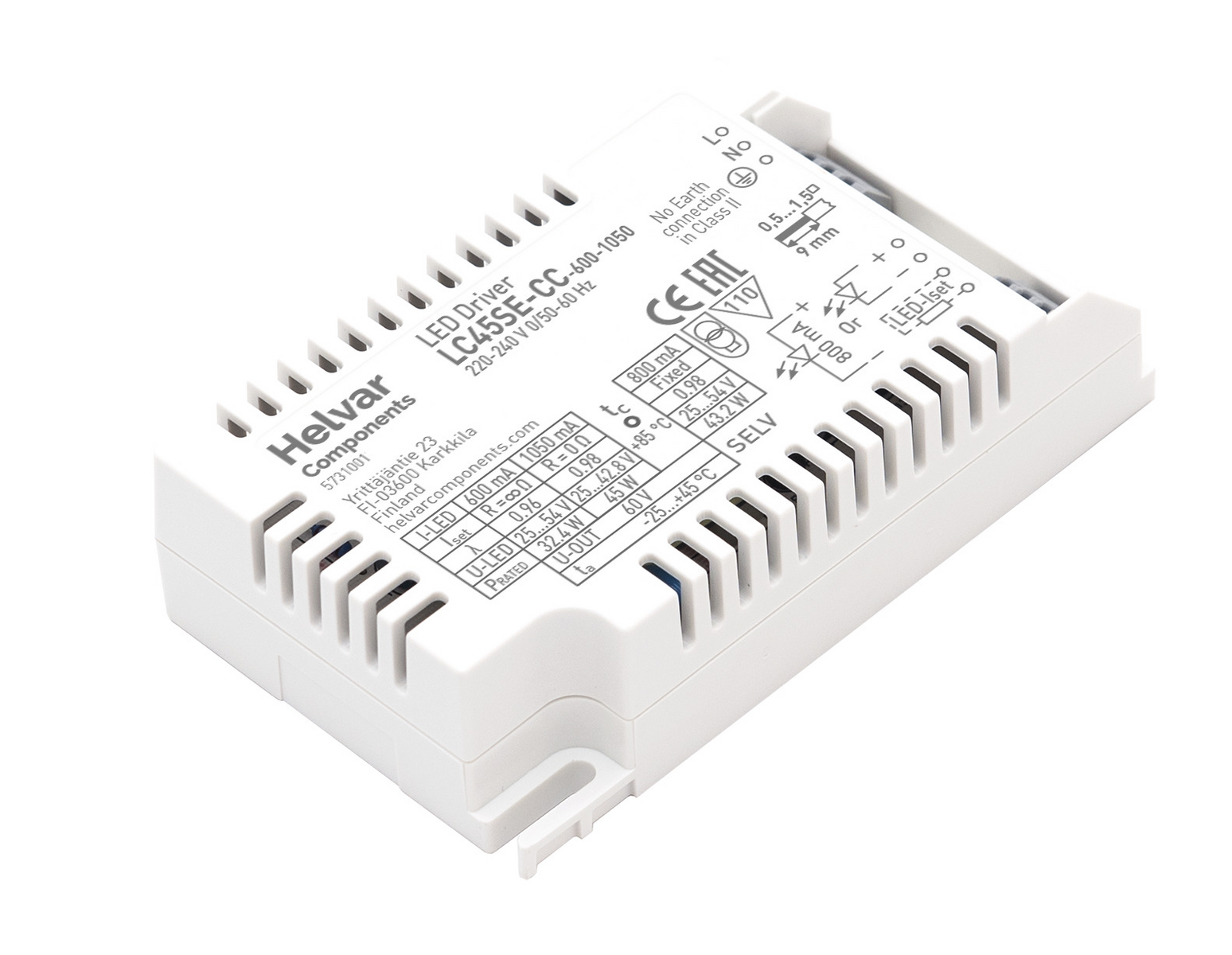

LC45SE-CC-600-1050
45 W constant current LED driver
- 600 mA – 1050 mA adjustable current output
- Product number: 5731001
- Dimensions: 115,0 x 29,5 x 67,0 mm
- LED Driver family: SE Series
- Main features: PanelReady
45 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 45 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.98 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Min | Max | ||
|---|---|---|---|
| Iout | 600 | 1050 | |
| Uout | 25–54 | 25–42,8 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |

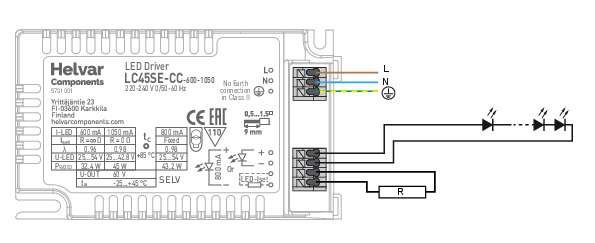

| Current setting resistors | ✓ |
| Certificates | BIS |
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5731001 | LC45SE-CC-600-1050 10/60/1680 |
