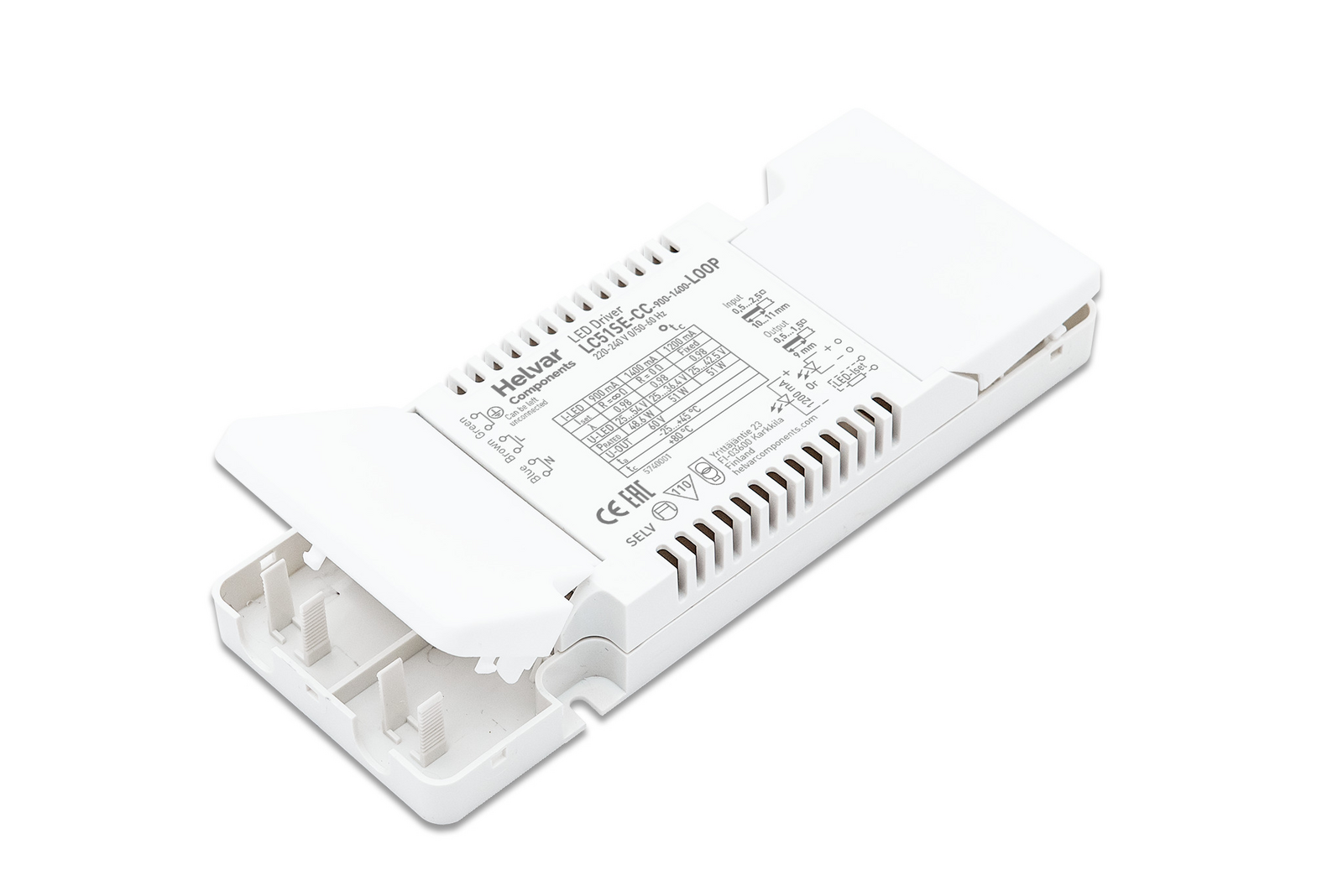

LC51SE-CC-900-1400-LOOP
51 W constant current LED driver
- 900 mA – 1400 mA adjustable current output
- Product number: 5740001
- Dimensions: 207,8 x 30,0 x 79,0 mm
- LED Driver family: SE Series
- Main features: PanelReady
51 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Max output power (W) | 51 |
| Efficiency up to (%) | 90 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 900 | 1400 | |
| Uout | 25–54 | 25–36,4 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Independent usage | ✓ |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Integrated strain relief | ✓ |
|---|---|
| Helvar Driver Configurator support | ✓ |
| Complies with IEEE 1789-2015 | ✓ |

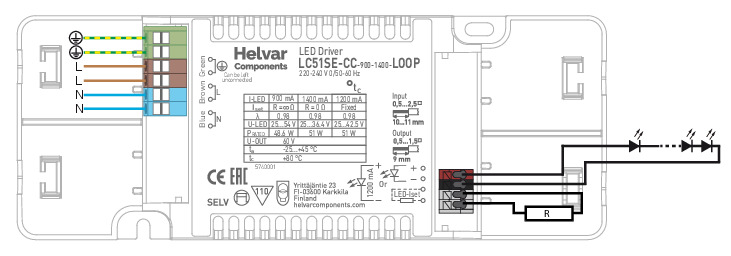

| Current setting resistors | ✓ |
| Certificates | BIS |
|---|
| Datasheet |
|---|
| 2D/3D Files |
| EC Declaration of conformity |
| ENEC Certificate |
| CB Certificate |
| LED solutions catalogue | |
|---|---|
| Weblink3 | https://helvar.com/wp-content/uploads/2021/11/Helvar-LEDDriver-ProductCodeMarkings-2021.pdf |
| LEDesign | |
| LED tools, help, troubleshooting |
| Order code | Description |
|---|---|
| 5740001 | LC51SE-CC-900-1400-LOOP 10/40/640 |
