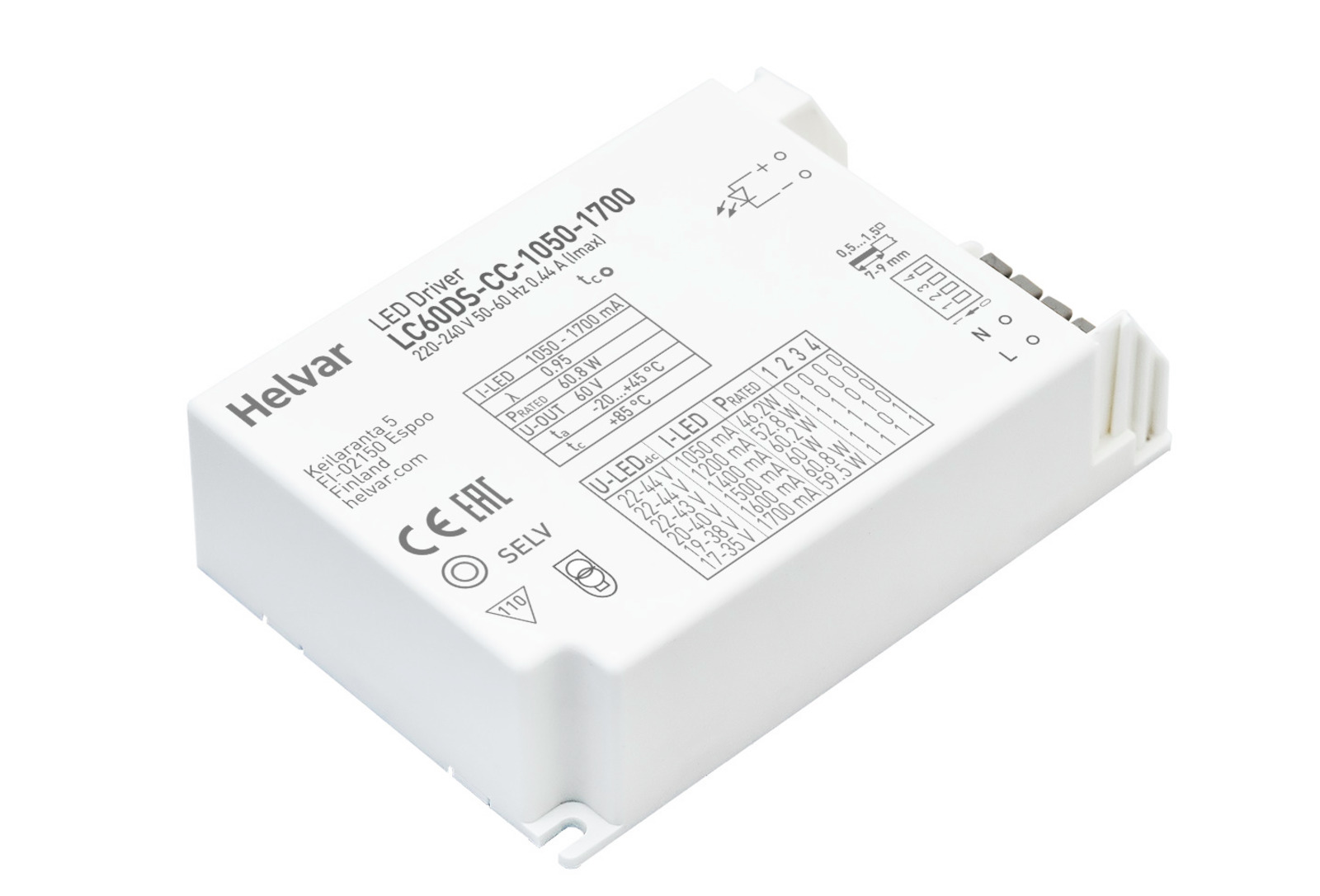

LC60DS-CC-1050-1700
60 W constant current LED driver
- 1050 mA – 1700 mA adjustable current output
- Product number: 5935005
- Dimensions: 110,0 x 30,0 x 74,0 mm
- LED Driver family: Other drivers
- Main features: PanelReady
60 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 59.5 |
| Efficiency up to (%) | 90 |
| Power factor at full load | 0.95 |
| Total Harmonic Distortion @ Full power (THD %) | 5 |
| Min | Max | ||
|---|---|---|---|
| Iout | 1050 | 1700 | |
| Uout | 22 – 44 | 17 – 35 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5935005 | LC60DS-CC-1050-1700 60 |
