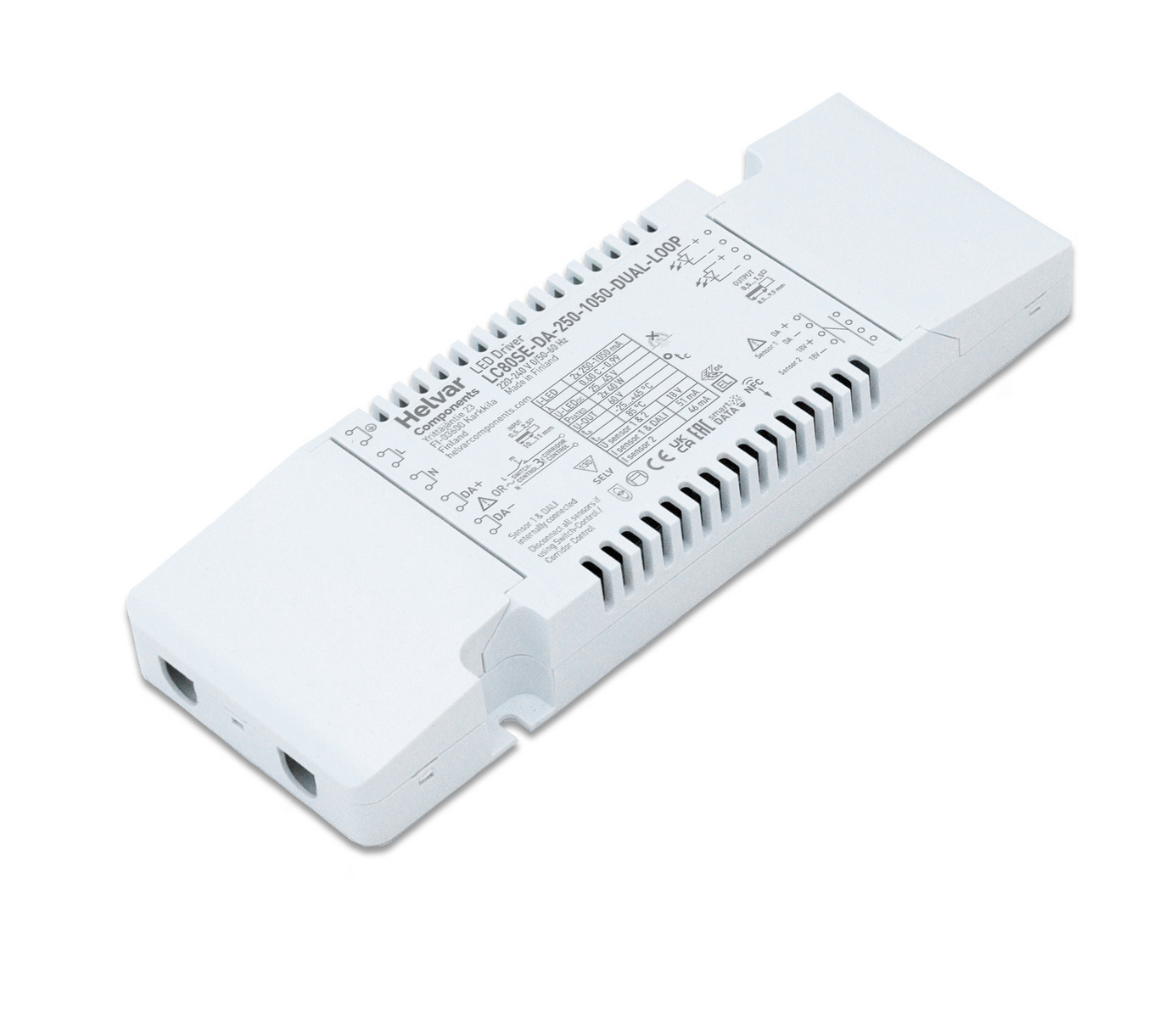

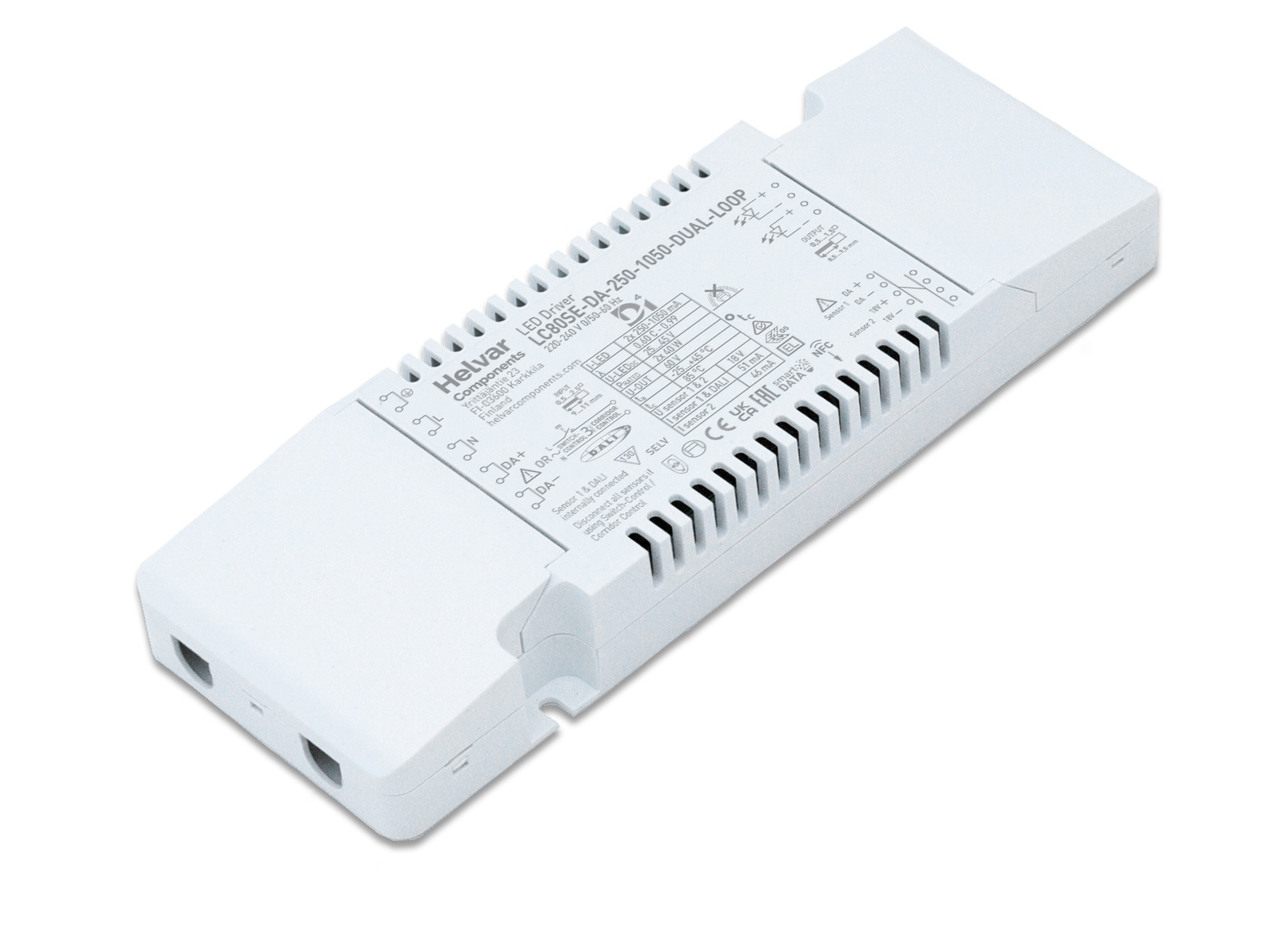

LC80SE-DA-250-1050-DUAL-LOOP

2 x 40 W DALI-2 dimmable DUAL-LOOP LED driver

  • 250 mA – 1050 mA adjustable current output
  • Product number: 5830000

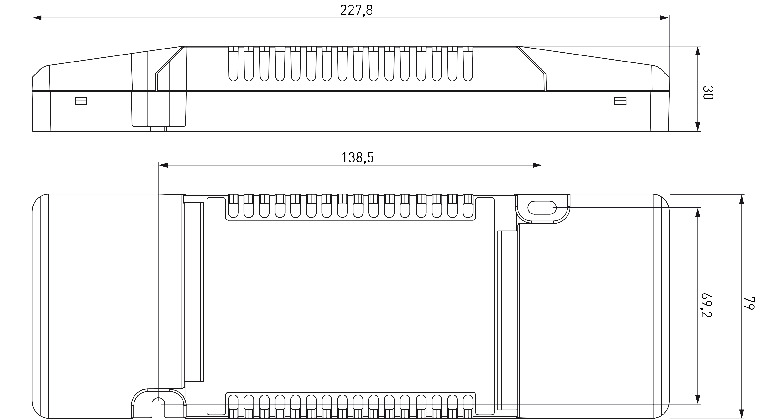

  • Dimensions: 227.8 x 79 x 30 mm
  • LED Driver family: SE Series
  • Main features: DUAL-LOOP, Smart Data, PanelReady
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

80

Power factor at full load

0.98

Efficiency up to (%)

91

Total Harmonic Distortion @ Full power (THD %)

7

MinMax
Iout2501050
Uout25 - 4525 - 38

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176–280

Max temperature at tc point (°C)

85

Ambient temperature range

–25°C ... +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Independent usage✓
Luminaire class II✓
Luminaire class I✓
Luminaire class III✓

Control

Dimming method

Amplitude Dimming

Control


DALI-2
Switch-Control 3
Corridor Control

Dimming range

1 % - 100 %

Features

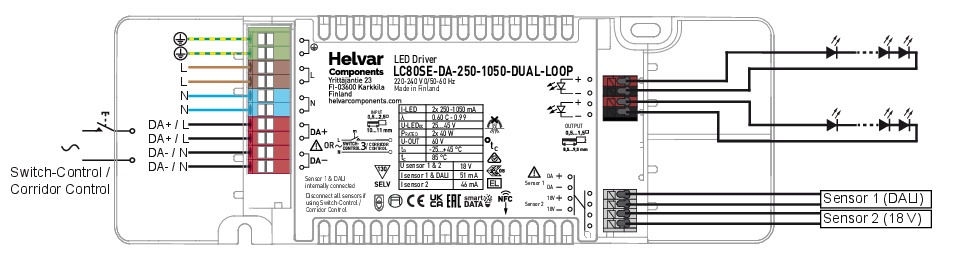

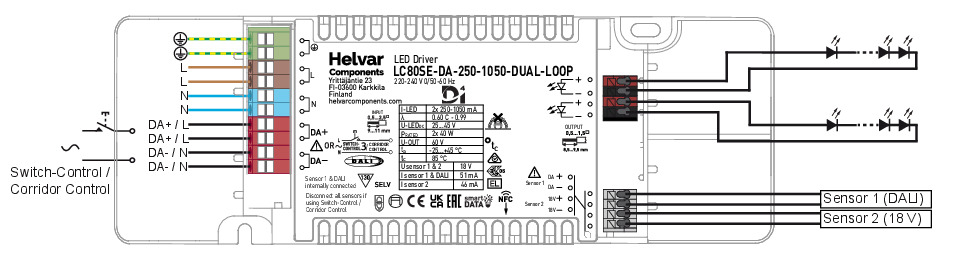

Dual 40 W outputs for connecting two separate LED loads efficiently.
Driver can be used with both one and two loads with a single DALI address (DT6).
Powered DALI (DALI Part 250) and 18 V auxiliary outputs for external sensors and radio nodes.

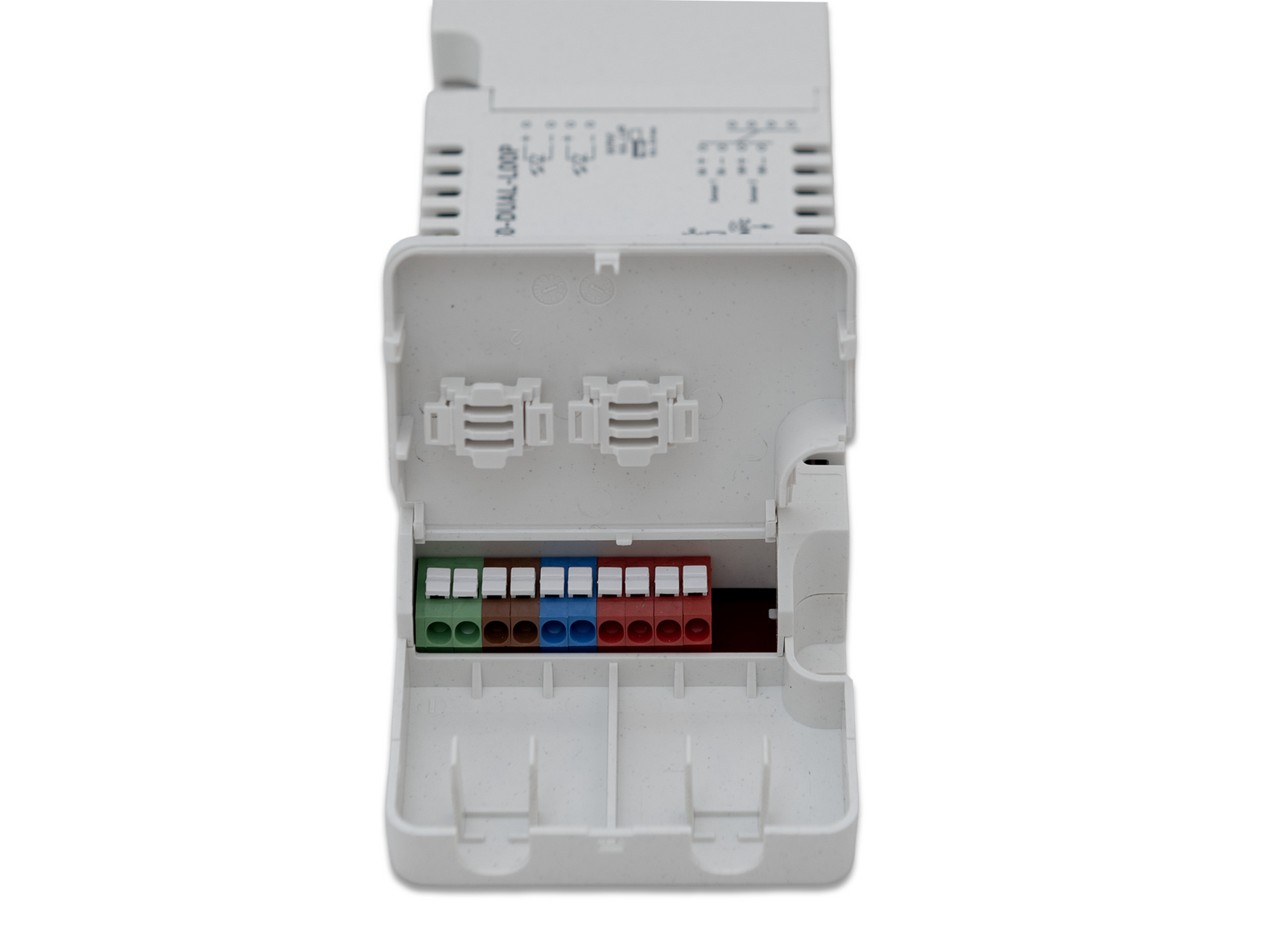

Doubled input terminals for looping the mains and DALI cables.
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

Helvar Driver Configurator support✓

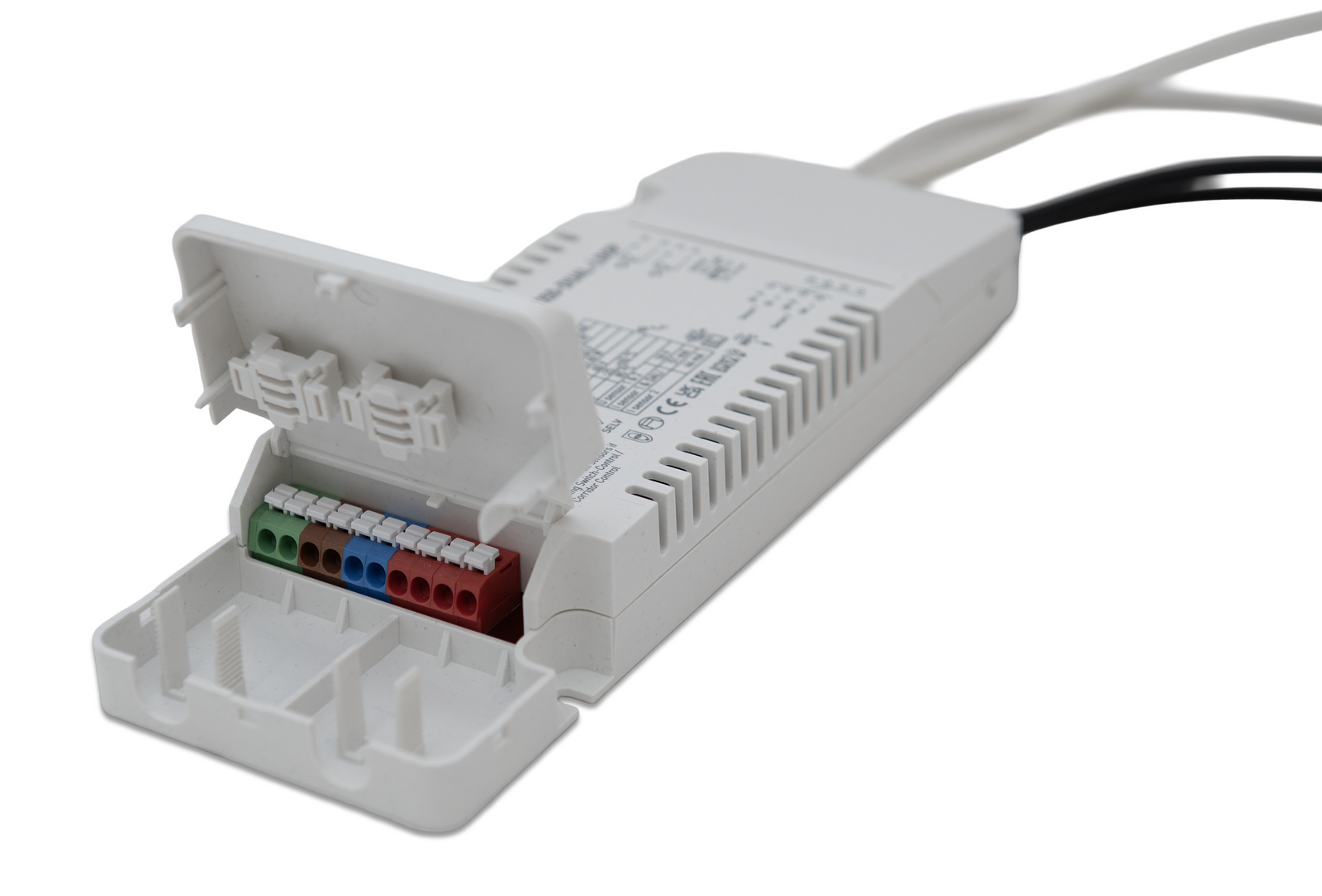

Integrated strain relief✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming

CLO✓
Complies with IEEE 1789-2015✓
NFC✓

More information

Certificates


ENEC
CB
EL

Order codes

Order codeDescription
5830000LC80SE-DA-250-1050-DUAL-LOOP
