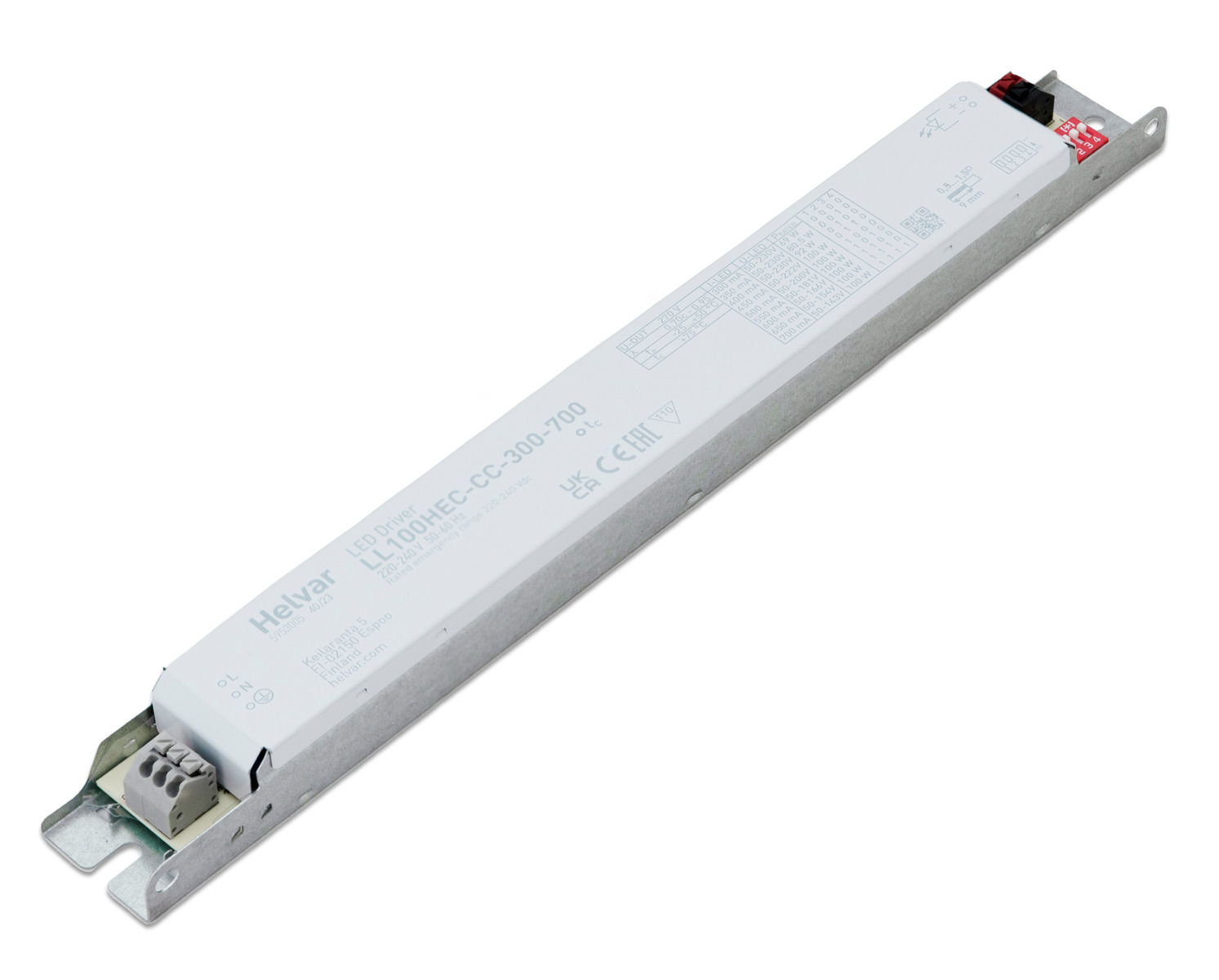

LL100HEC-CC-300-700
100 W constant current LED driver
- 300/350/400/450/500/550/600/650/700 mA DIP switch selectable currents output
- Product number: 5953005
- Dimensions: 280 x 21 x 30 mm
- LED Driver family: HEC Series
100 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 100 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 94 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | 700 | |
| Uout | 50 – 230 | 50 – 143 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 70 |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Certificates |
|
|---|
