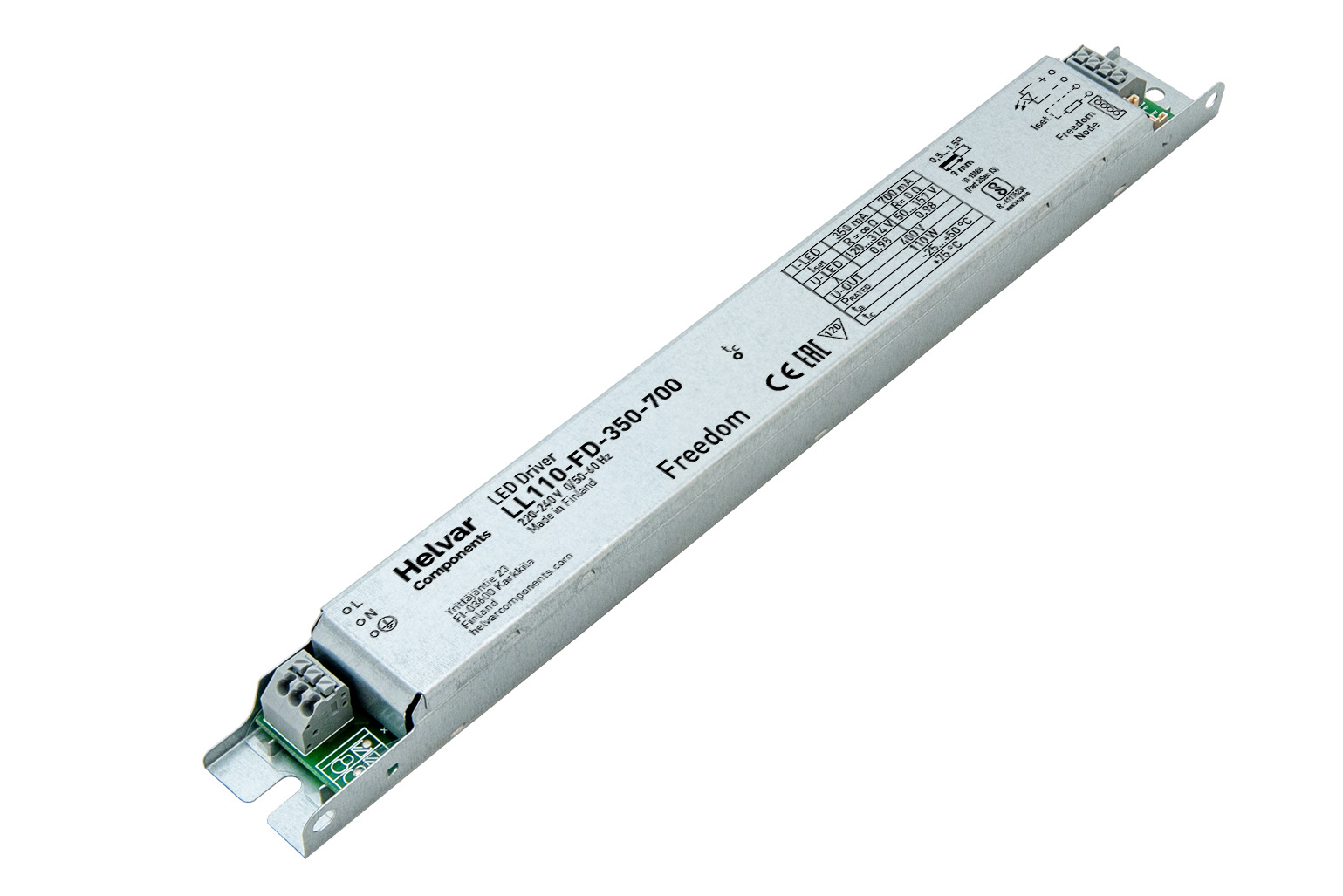

LL110-FD-350-700

110 W Freedom controllable LED driver

350 mA – 700 mA adjustable current output
Product number: 5811000
Dimensions: 280 x 30 x 21 mm
LED Driver family: Freedom Wireless
Main features: Freedom, Hybrid

Specifications

Output

Output	Adjustable current
Load protection	Non-isolated
Max output power (W)	110
Efficiency up to (%)	95
Power factor at full load	0.98

	Min	Max
I_out	350	700
U_out	120 – 314	50 – 157

Input & Operating Conditions

Voltage range (VAC)	198–264
DC input characteristics	Suitable for DC use
DC range (V)	176–280
Max temperature at tc point (°C)	75
Ambient temperature range	–25 °C .. +50 °C
IP Rating	IP20
Lifetime up to (h)	100000
Luminaire class I	✓
Luminaire class II	✓

Control

Control	Freedom
Dimming range	1% – 100%
Dimming method	Hybrid dimming

Features

Intelligent features	Data memory bank. Supports Freedom compatible wireless lighting control technologies: Helvar ActiveAhead, Casambi, Mount Kelvin, Mymesh, Ingy, Wirepas.
NTC	✓
Optional click-on strain relief for installation	✓

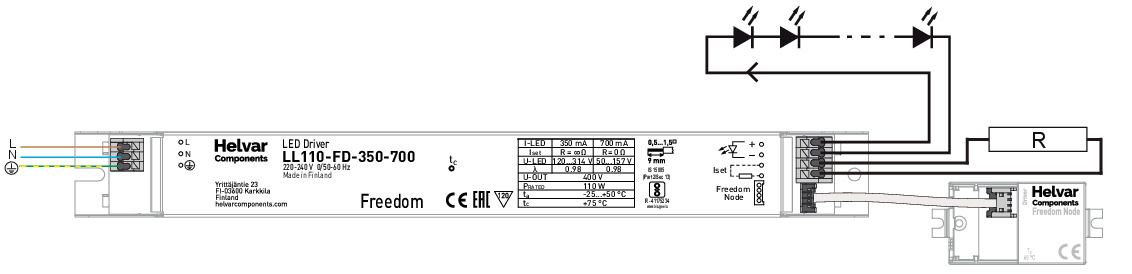

Current setting resistors	✓

More information

Certificates	BIS

Compatible products

Compatible products	Freedom Cables, LL1x2130-SR, LL-SR-NFC
Compatible Wireless Systems	ActiveAhead, Casambi, Mount Kelvin, Mymesh by Chess, Pulse Systems

Documents and tools

Datasheet
2D/3D Files
EC Declaration of conformity

LED solutions catalogue
Product code markings
LEDesign
LED tools, help, troubleshooting

Order codes

Order code	Description
5811000	LL110-FD-350-700 10/1000
