LL120HE-DA-200-900-IND

120 W DALI-2 dimmable Industrial LED driver

  • 200 mA – 900 mA adjustable current output
  • Product number: 5754001

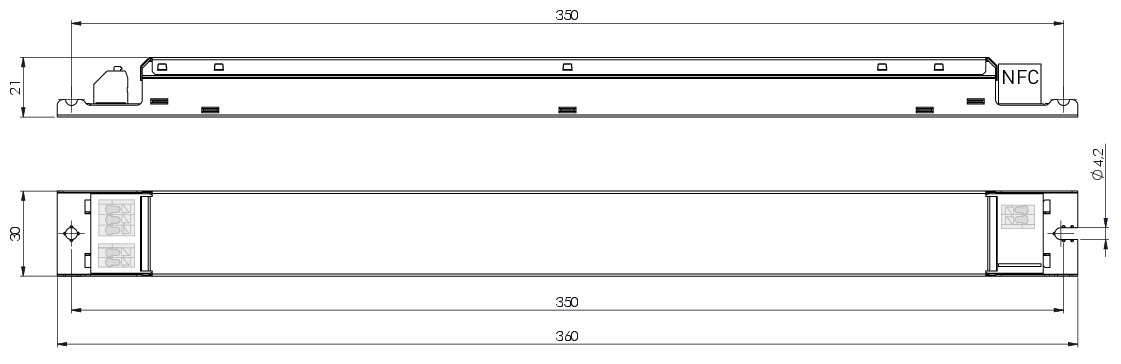

  • Dimensions: 360 x 30 x 21 mm
  • LED Driver family: HE-IND Series
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

120

Power factor at full load

0.99

Efficiency up to (%)

94

Total Harmonic Distortion @ Full power (THD %)

8

MinMax
Iout200900
Uout50-33050-133

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–281

Max temperature at tc point (°C)

85

Ambient temperature range

–40 °C .. +70 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Dimming range

1% - 100%

Control


Corridor Control
DALI-2

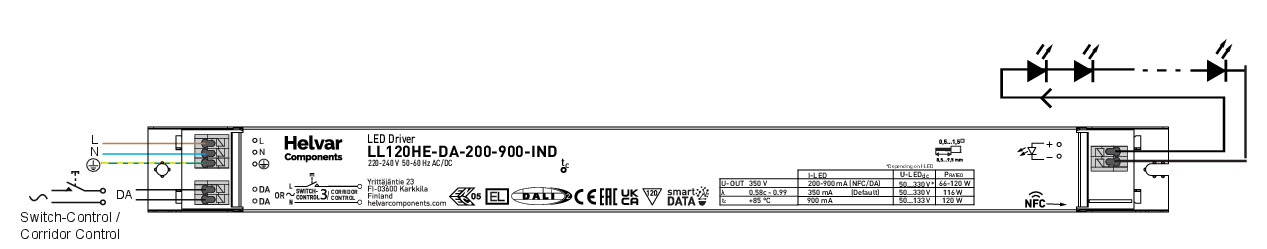

Switch-Control 2

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming

Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

CLO✓
NFC✓

More information

Certificates


ENEC
CB
EL

Order codes

Order codeDescription
5754000LL120HE-DA-200-900-IND
