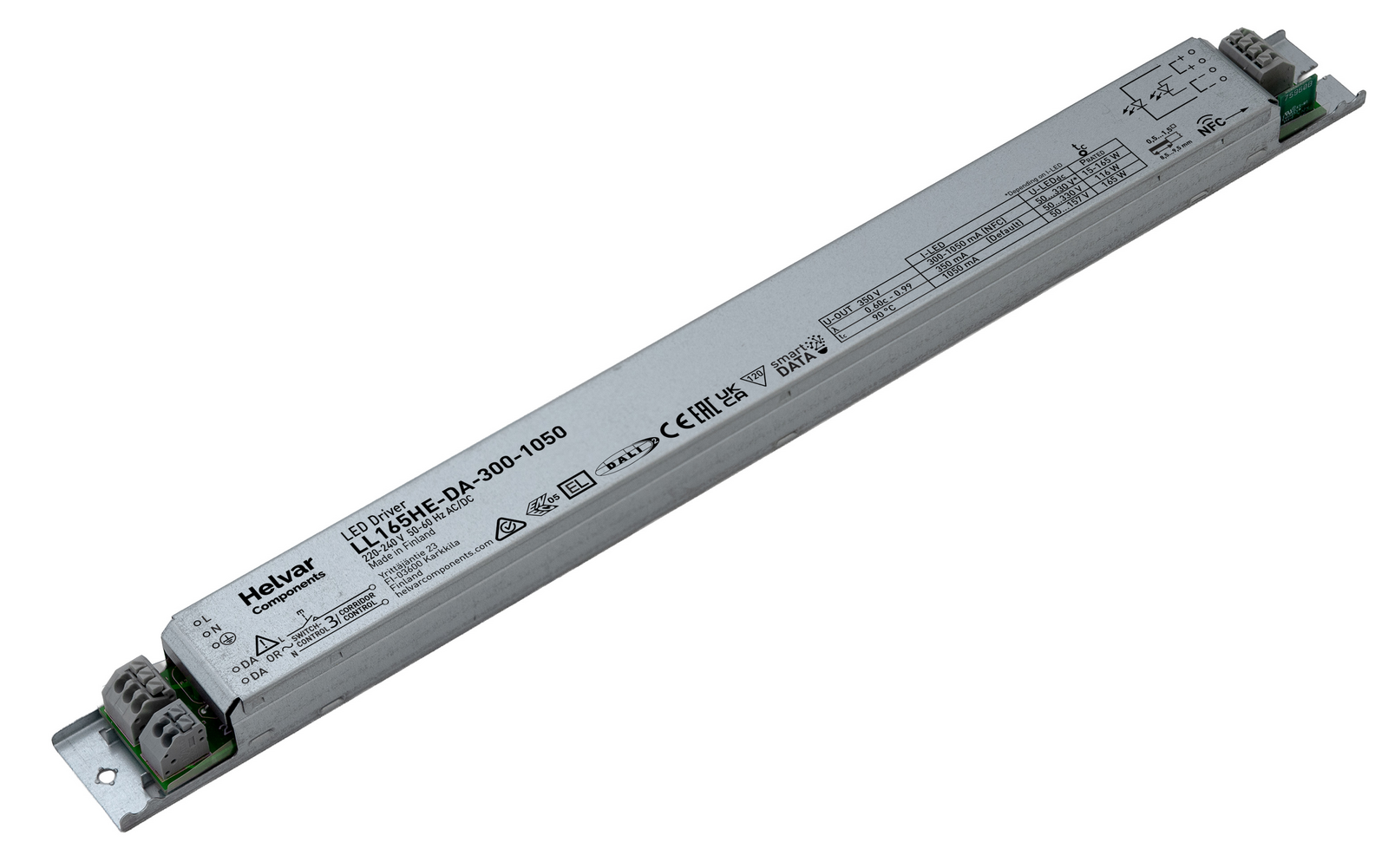

LL165HE-DA-300-1050
165 W DALI-2 dimmable LED driver
- 300 mA – 1050 mA adjustable current output
- Product number: 5784006

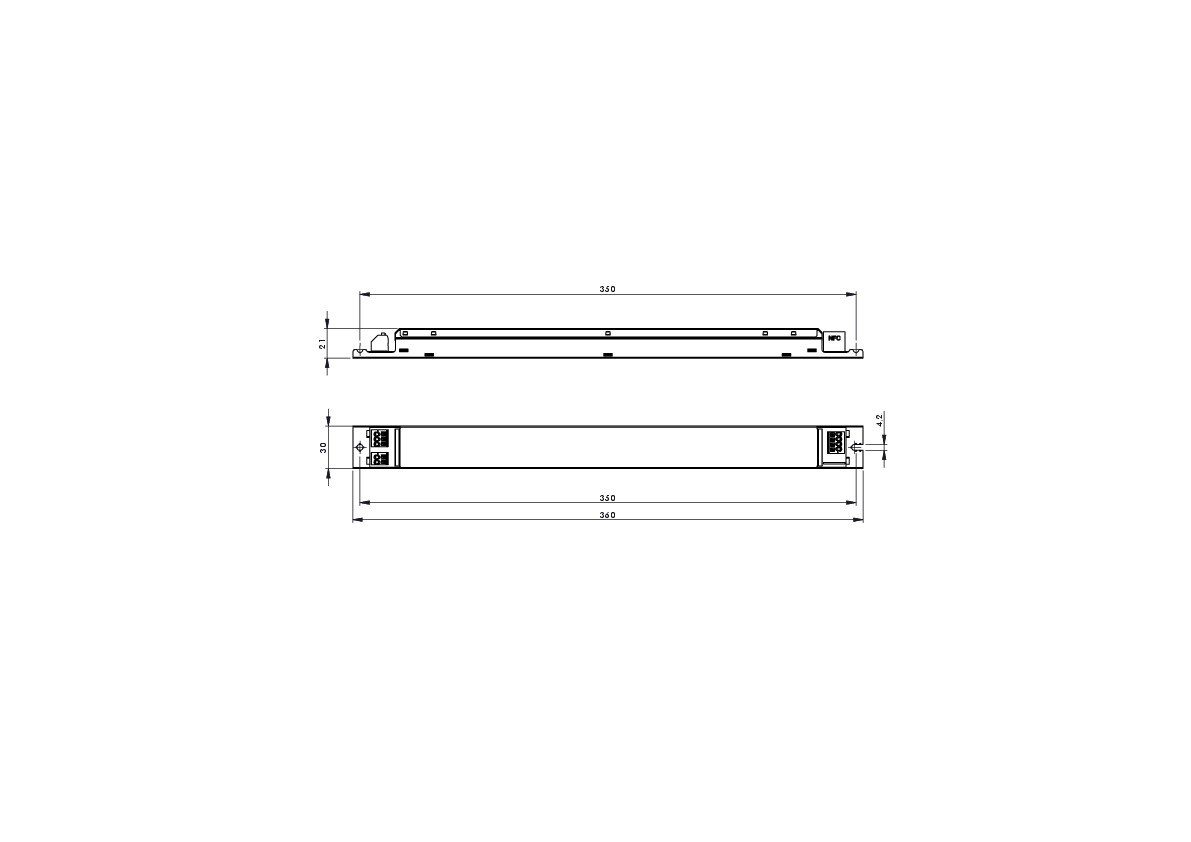

- Dimensions: 360 x 30 x 21 mm
- LED Driver family: HE Series
- Main features: DALI, Amplitude, Smart Data
Specifications
Output
| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 165 |
| Power factor at full load | 0.99 |
| Efficiency up to (%) | 96 |
| Total Harmonic Distortion @ Full power (THD %) | 7 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | 1050 | |
| Uout | 50 – 330 | 50 – 157 |
Input & Operating Conditions
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176–281 |
| Max temperature at tc point (°C) | 90 |
| Ambient temperature range | –40°C ... +60 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class II | ✓ |
| Luminaire class I | ✓ |
Control
| Dimming method | Amplitude Dimming |
|---|---|
| Control |
|
| Dimming range | 1% - 100% |
Features
| Superior efficiency peaking at 96 % | |
|---|---|
| Very high efficiency stability across the operating window - efficiency range from > 91 % achievable from as low as 20 % of the maximum load (33 W). | |
| Smart data | Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253) |
| Helvar Driver Configurator support | ✓ |
| Intelligent features | Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming |
| CLO | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| NFC | ✓ |
More information
| Certificates |
|
|---|
Documents and tools
Order codes
| Order code | Description |
|---|---|
| 5784006 | ¤LL165HE-DA-300-1050 10/1440 |
