LL165HE-DA-300-1050-IND

165 W DALI-2 dimmable Industrial LED driver

  • 300 mA – 1050 mA adjustable current output
  • Product number: 5755001

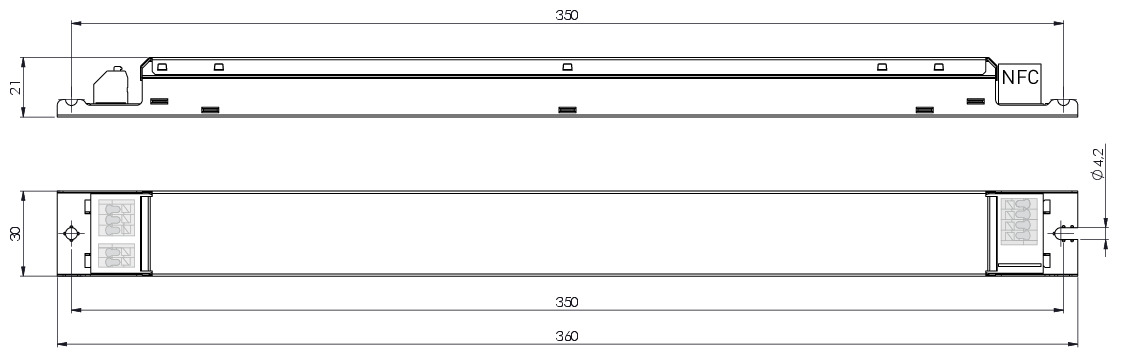

  • Dimensions: 360 x 30 x 21 mm
  • LED Driver family: HE-IND Series
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

165

Power factor at full load

0.99

Efficiency up to (%)

95

Total Harmonic Distortion @ Full power (THD %)

8

MinMax
Iout3001050
Uout50-33050-157

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176–281

Max temperature at tc point (°C)

90

Ambient temperature range

–40 °C .. +70 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Dimming range

1% - 100%

Control


Corridor Control
DALI-2
Switch-Control 2

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming

Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

CLO✓
NFC✓

More information

Certificates


ENEC
CB
EL

Order codes

Order codeDescription
5755000LL165HE-DA-300-1050-IND
