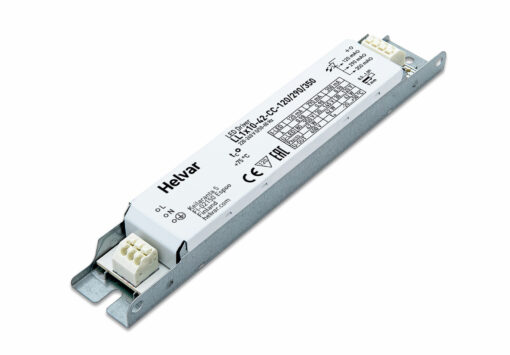

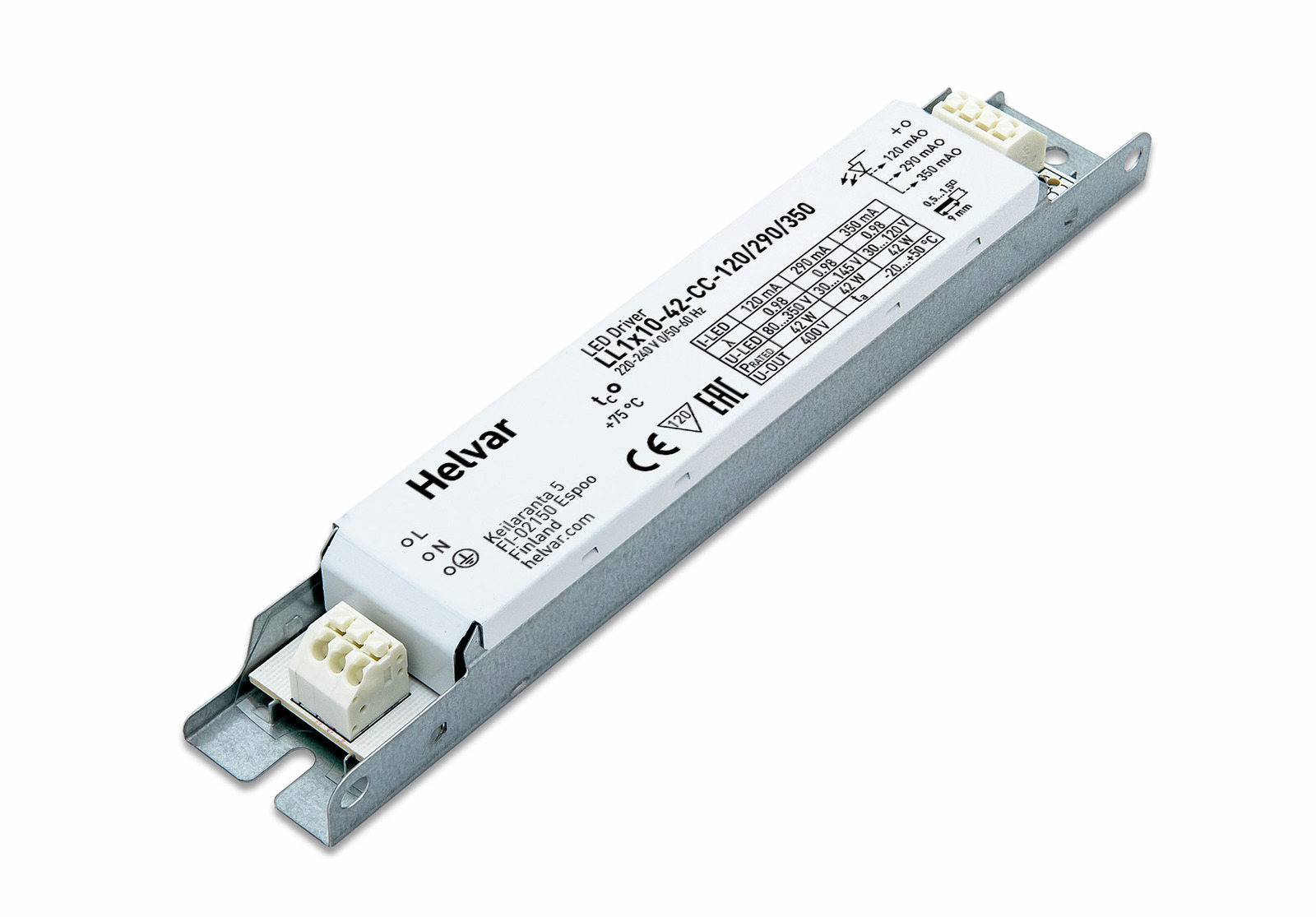

LL1x10-42-CC-120-290-350
42 W constant current LED driver
- 120/290/350 mA multiple currents output
- Product number: 5798011
- Dimensions: 190 x 21 x 30 mm
- LED Driver family: Other drivers
42 W constant current LED driver
| Output | Multiple currents |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 42 |
| Efficiency up to (%) | 94 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 120 | 350 | |
| Uout | 80-350 | 30-120 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | – 20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5798011 | LL1x10-42-CC-120/290/350 white. |
