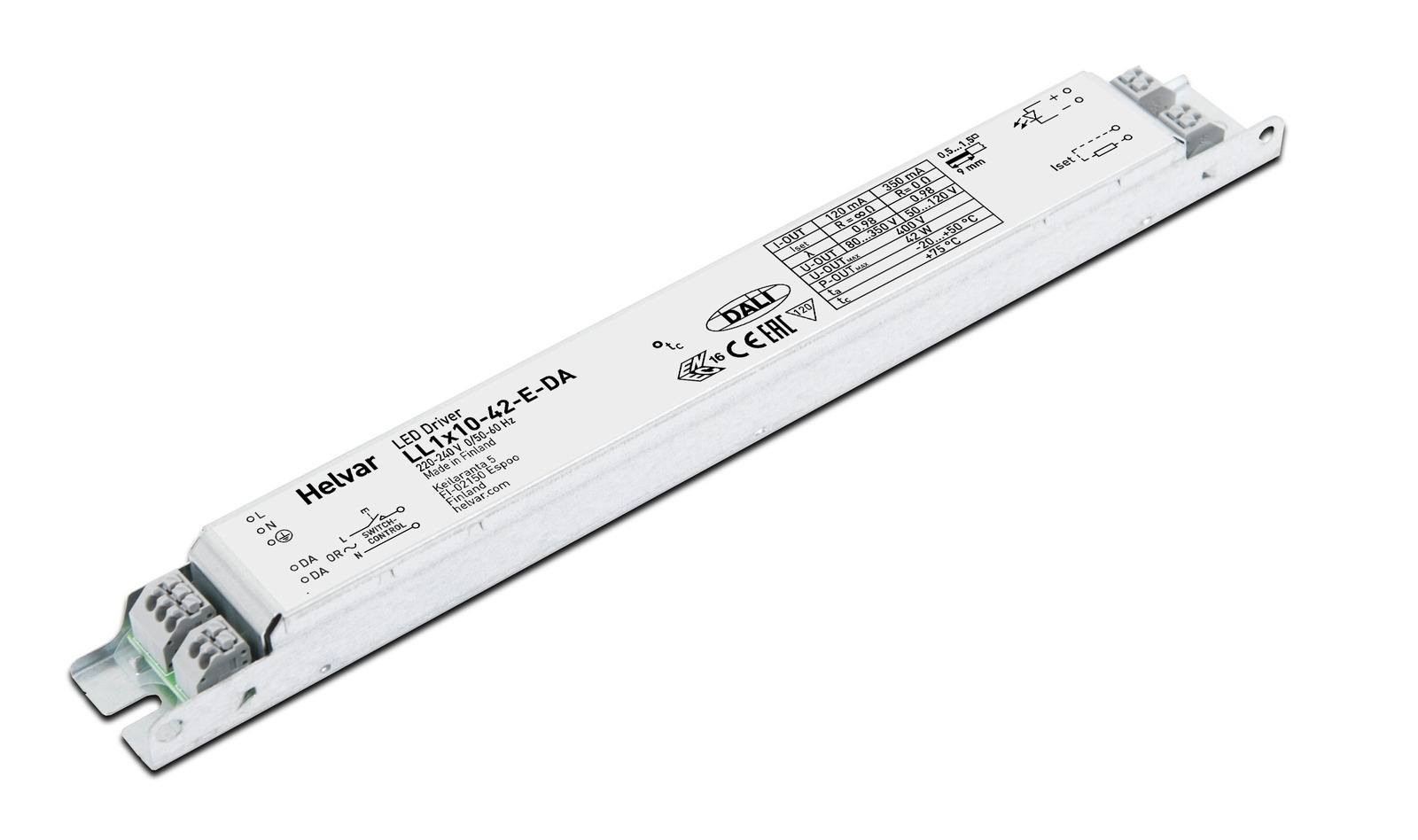

LL1x10-42-E-DA (Discontinued)
LL1x10-42-E-DA (Discontinued) - Image 2
LL1x10-42-E-DA (Discontinued) - Image 3

LL1x10-42-E-DA (Discontinued)

10 W – 42 W DALI dimmable LED driver

  • 120 mA – 350 mA adjustable current output
  • Product number: 5531001
  • Dimensions: 280 x 30 x 21 mm
  • LED Driver family: Other drivers
  • Main features: Hybrid, DALI, Efficient
  • Replacing product: LL50HE-DA-80-400
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

42

Efficiency up to (%)

93

Power factor at full load

0.96

MinMax
Iout120350
Uout80–35050–120

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C ... +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Control


DALI
Switch-Control 2

Dimming range

1% – 100%

Dimming method

Hybrid dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Data memory bank

NTC✓
Optional click-on strain relief for installation✓
CLO✓
Current setting resistors✓

More information

Certificates


BIS
CB
EL
ENEC

Compatible products

Compatible products

LL1x2130-SR, LL-SR-NFC

Order codes

Order codeDescription
5531001LL1x10-42-E-DA 10/2000.
