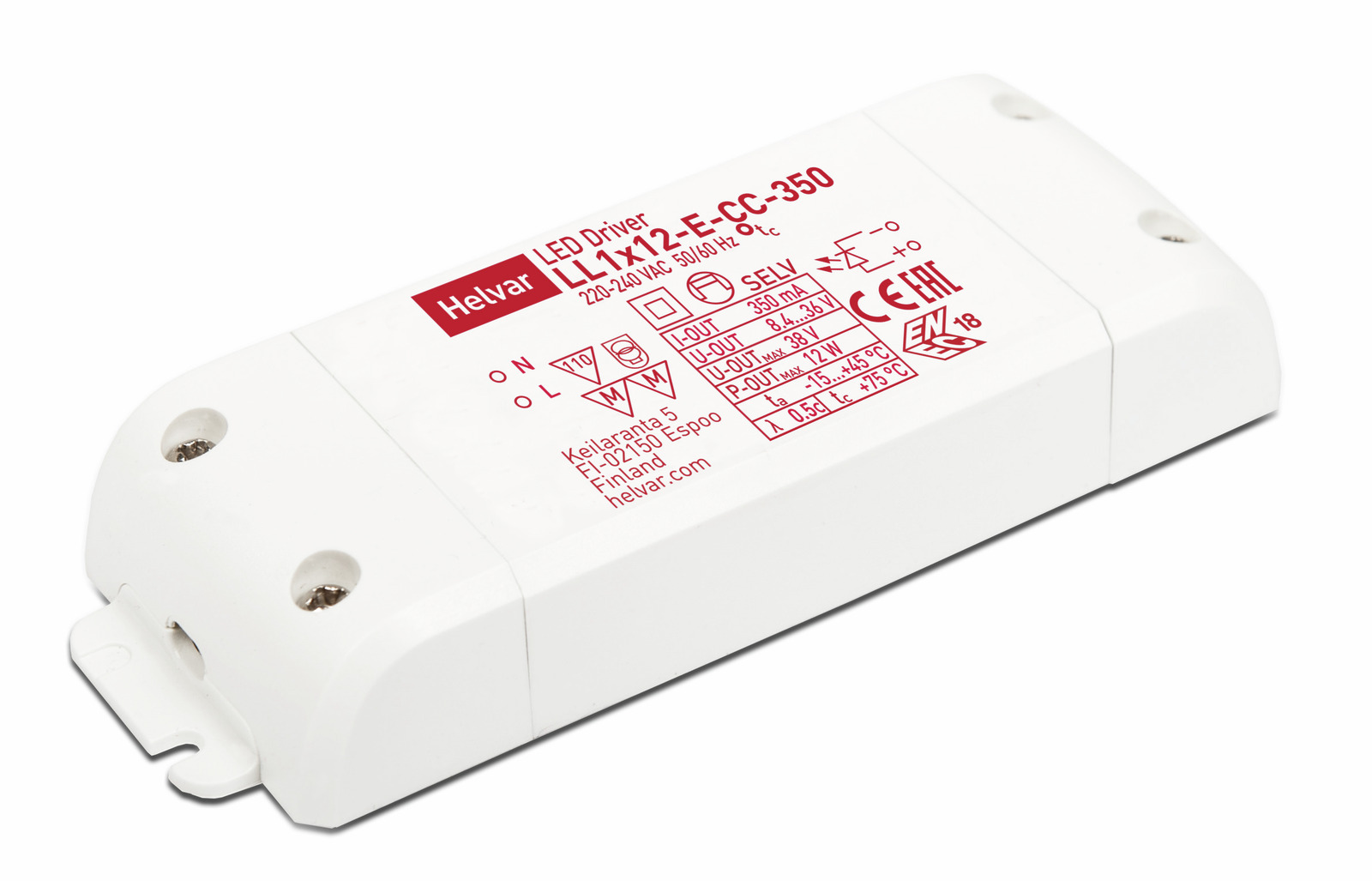

LL1x12-E-CC-350
12 W constant current LED driver
- 350 mA fixed current output
- Product number: 5580000
- Dimensions: 123 x 19 x 45 mm
- LED Driver family: Other drivers
12 W constant current LED driver
| Output | Fixed current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 12 |
| Efficiency up to (%) | 83 |
| Power factor at full load | 0.5 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | ||
| Uout | 8.5–36 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –15 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 30000 |
| Independent usage | ✓ |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Integrated strain relief | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Certificates |
|
|---|
