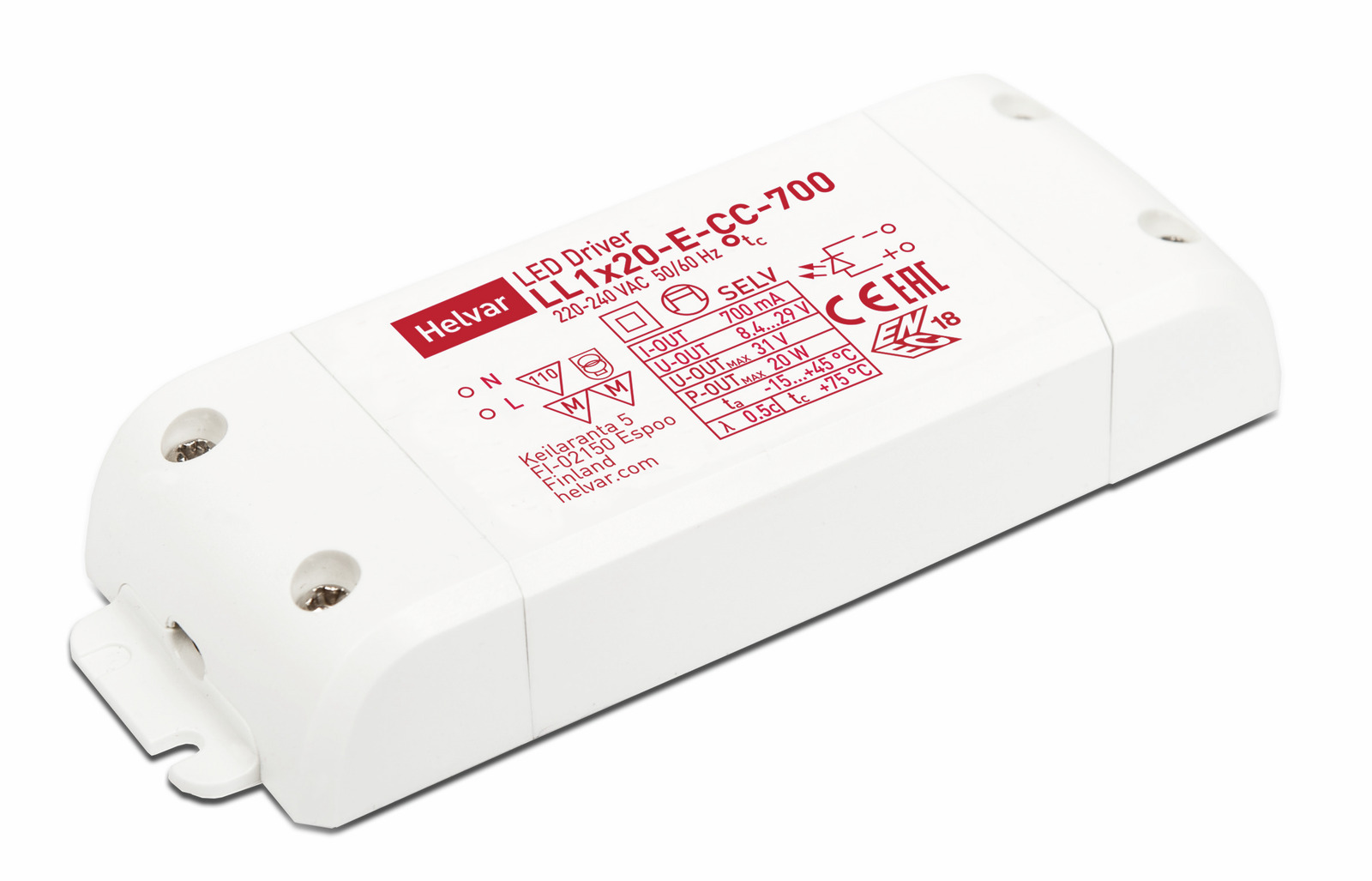

LL1x20-E-CC-700 (Discontinued)
LL1x20-E-CC-700 (Discontinued) - Image 2
LL1x20-E-CC-700 (Discontinued) - Image 3

LL1x20-E-CC-700 (Discontinued)

20 W constant current LED driver

  • 700 mA fixed current output
  • Product number: 5584000
  • Dimensions: 123 x 19 x 45 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Fixed current

Load protection

SELV60

Max output power (W)

20

Efficiency up to (%)

87

Power factor at full load

0.5

MinMax
Iout700
Uout8–29

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

No DC input

Max temperature at tc point (°C)

75

Ambient temperature range

–15 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

30000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Integrated strain relief✓
Complies with IEEE 1789-2015✓

More information

Certificates


ENEC
CB
