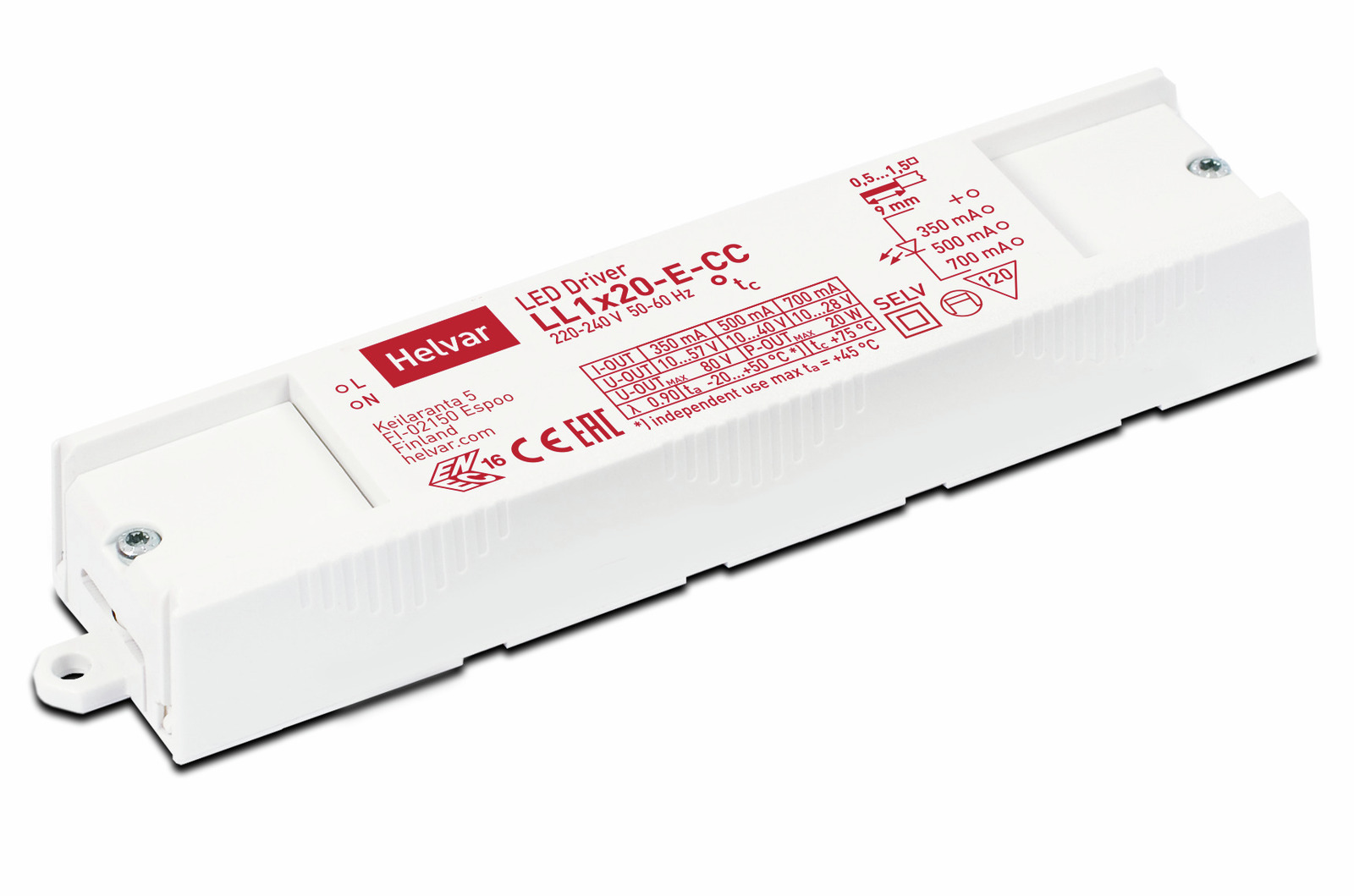

LL1x20-E-CC (Discontinued)
LL1x20-E-CC (Discontinued) - Image 2
LL1x20-E-CC (Discontinued) - Image 3

LL1x20-E-CC (Discontinued)

20 W constant current LED driver

  • 350 mA / 500 mA / 700 mA multiple currents output
  • Product number: 5530001
  • Dimensions: 184 x 25,5 x 40 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Multiple currents

Load protection

SELV120

Max output power (W)

20

Efficiency up to (%)

89

Power factor at full load

0.9

MinMax
Iout350700
Uout10–5710–28

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

50000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

Integrated strain relief✓
Complies with IEEE 1789-2015✓
