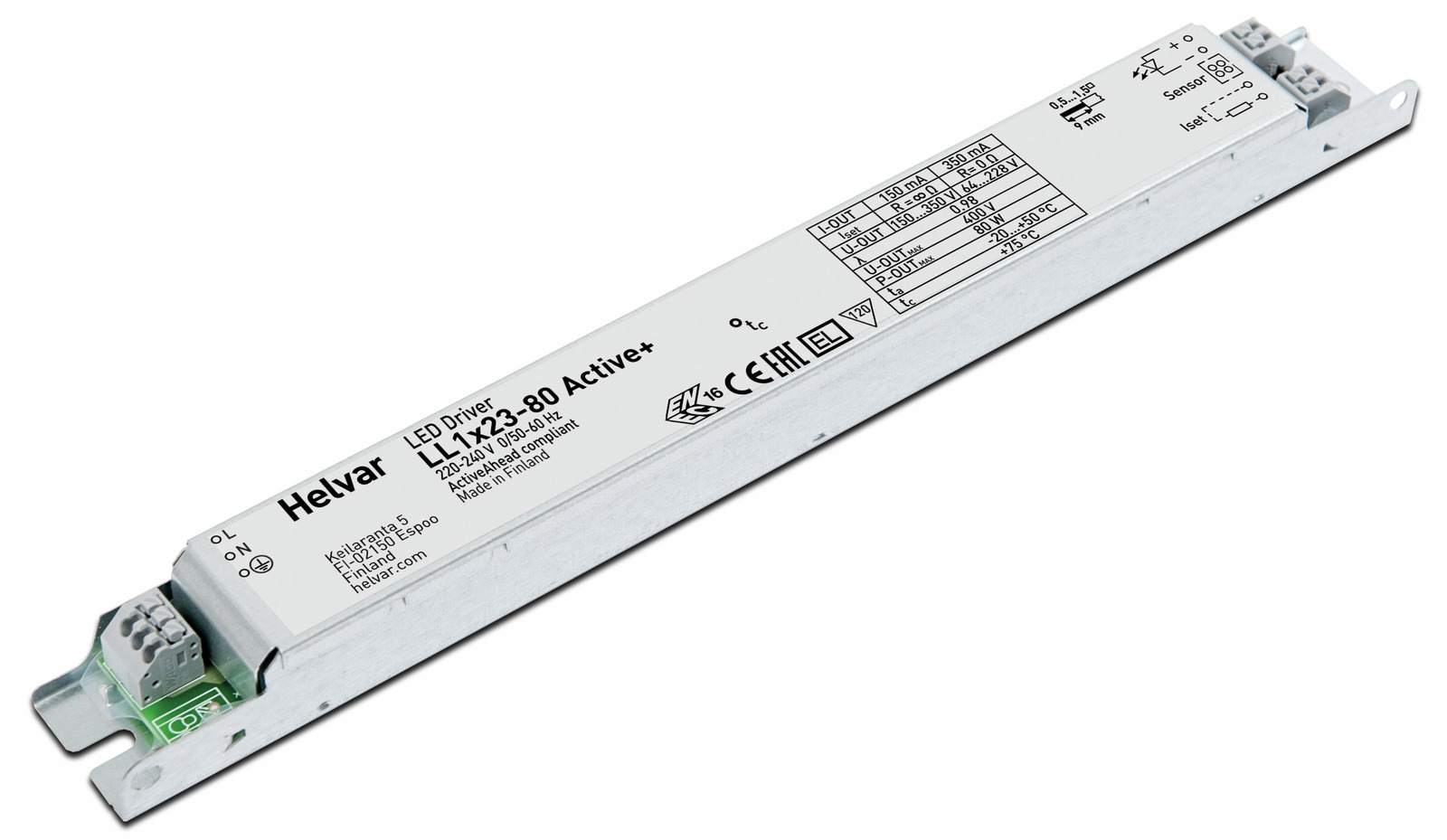

LL1x23-80 Active+
23-80 W Active+ LED driver
- 150 mA – 350 mA adjustable current output
- Product number: 5557000
- Dimensions: 280 x 30 x 21 mm
- LED Driver family: Other drivers
- Main features: ActivePlus
23-80 W Active+ LED driver
| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 80 |
| Efficiency up to (%) | 95 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 350 | |
| Uout | 150–350 | 64–228 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | Active+ |
|---|---|
| Dimming range | 1% – 100% |
| Dimming method | Hybrid dimming |
| NTC | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| Current setting resistors | ✓ |
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5557000 | LL1x23-80 Active+ 10/1000 |
