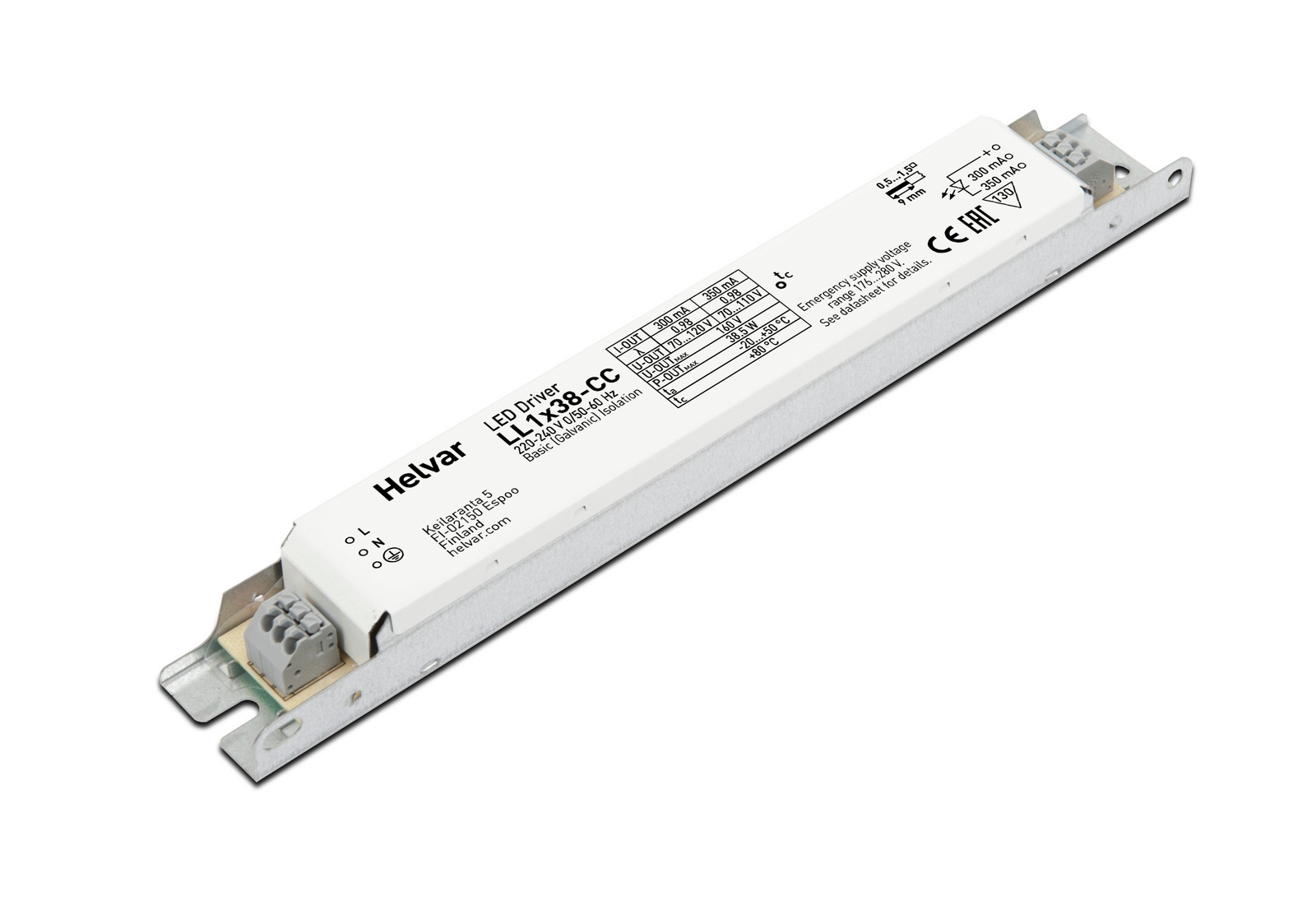

LL1x38-CC (Discontinued)
38 W constant current LED driver
- 300 mA / 350 mA multiple currents output
- Dimensions: 230 x 21 x 30 mm
- LED Driver family: Other drivers
38 W constant current LED driver
| Output | Multiple currents |
|---|---|
| Load protection | Basic isolated |
| Max output power (W) | 38 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | 350 | |
| Uout | 70–110 | 70–110 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –20 °C ... +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Compatible products |
|---|
