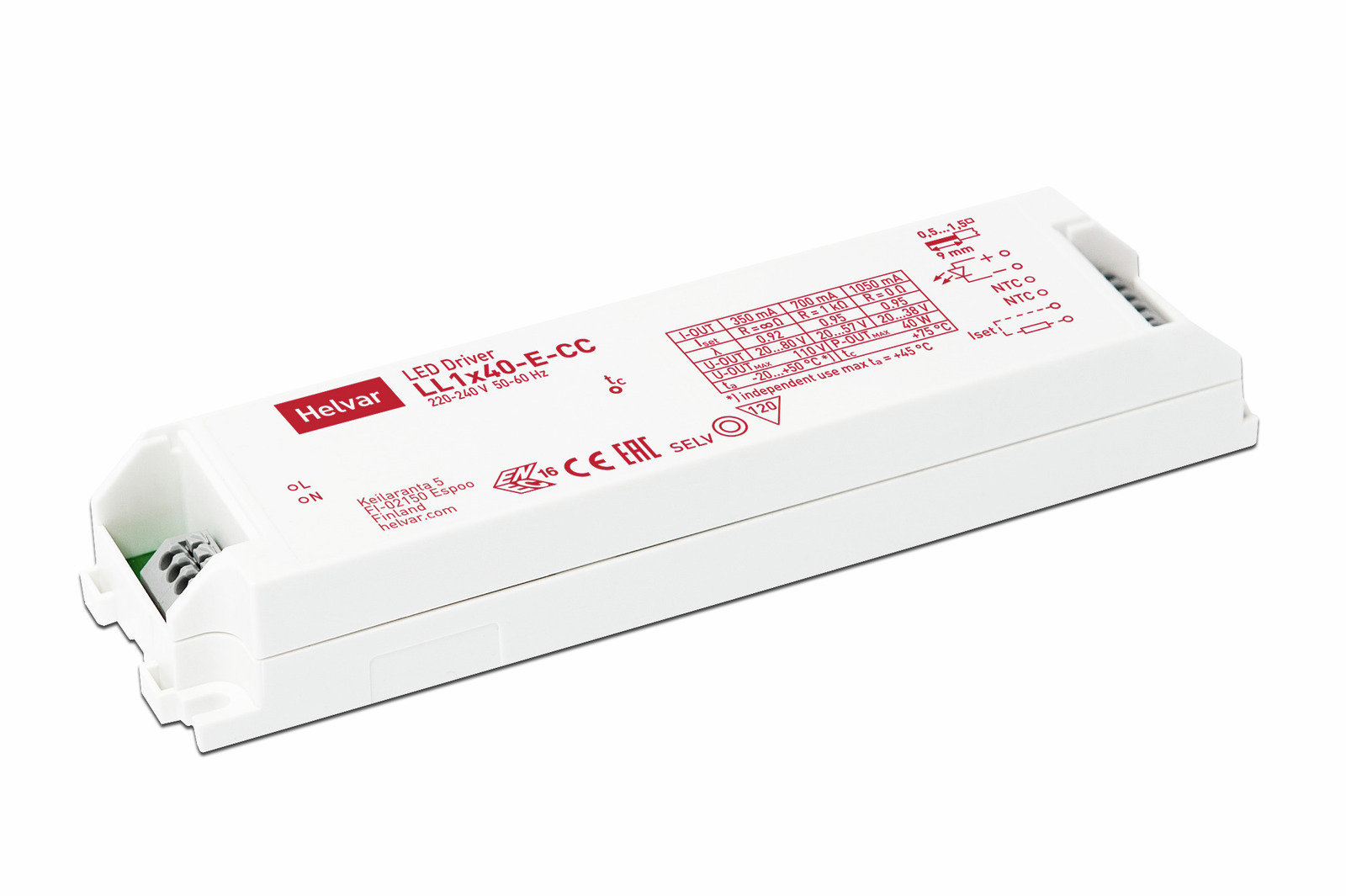

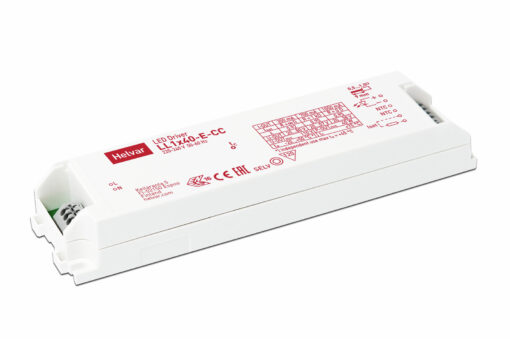

LL1x40-E-CC (Discontinued)
LL1x40-E-CC (Discontinued) - Image 2
LL1x40-E-CC (Discontinued) - Image 3

LL1x40-E-CC (Discontinued)

40 W constant current LED driver

  • 700 mA – 1050 mA adjustable current output
  • Product number: 5520001
  • Dimensions: 184 x 28 x 46,5 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV120

Max output power (W)

40

Efficiency up to (%)

90

Power factor at full load

0.95

MinMax
Iout3501050
Uout20–8020–38

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Independent usage✓
Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

ON/OFF

Features

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓

Compatible products

Compatible products

LL1x40-SR
